Application functions
8
d-Color MF25
8-5
5

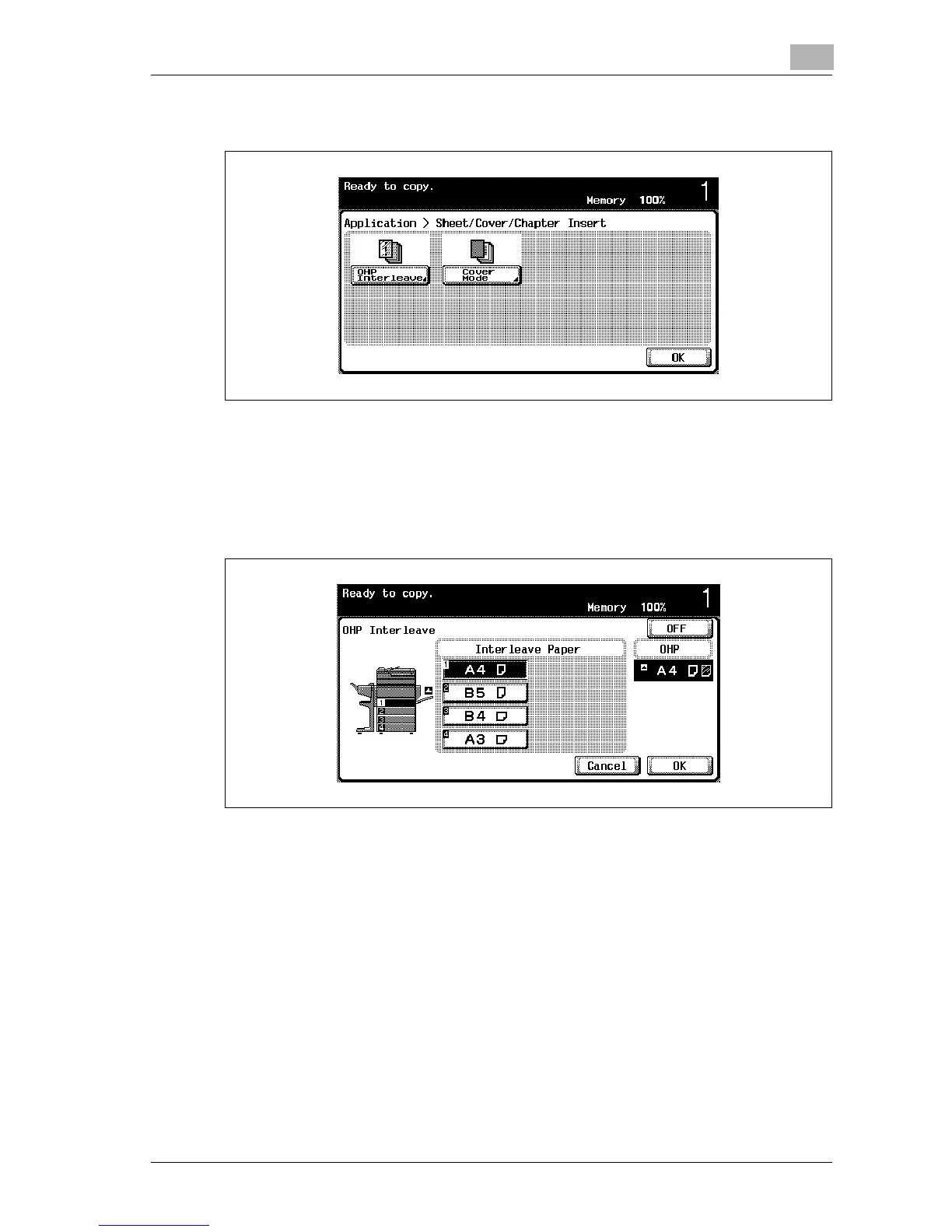

Touch [OHP Interleave]
.
The OHP Interleave screen appears.
6
Select the paper tray loaded with the interleaf paper.
–
To cancel changes to the settings, touch [Cancel].
–
To cancel the “OHP Interleave”
function, touch [OFF].
7
Touch [OK].
8
If necessary, specify any other copy settings.
9
Press
the [Start] key.
