8
Application functions
8-18
d-Color MF25
2
Touch

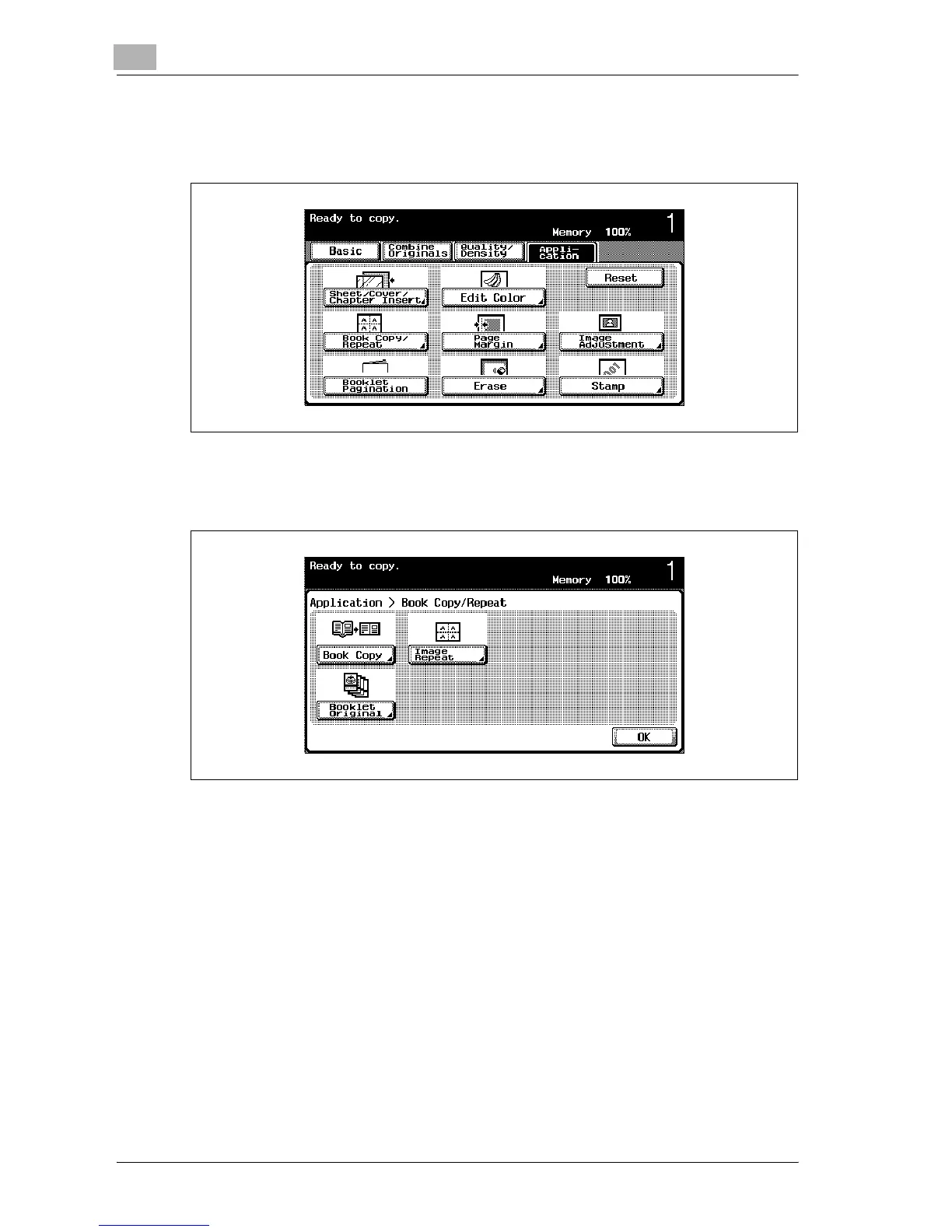

[Application], and then touch [Book Copy/Repeat].
–
To cancel all settings for the Application functions, touch [Reset].
The Book Copy/Repeat screen
appears.
3
Touch [Booklet Original].
The Booklet Original screen appears.
367
369
