Utility
12-22
d-Color MF25

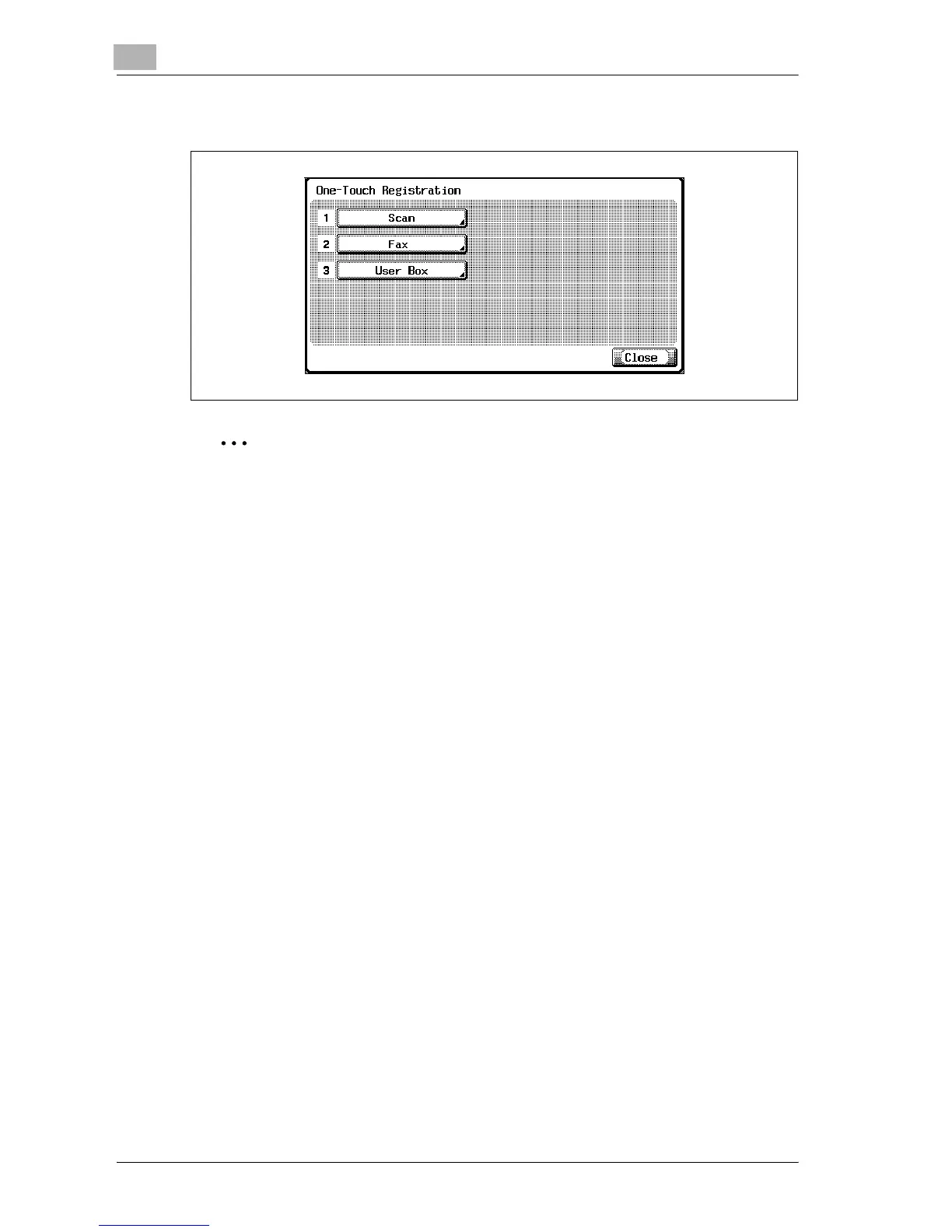

The One-Touch Registration screen appears.
2
Note
To quit specifying the Utility mode setting, touch [Exit] in the sub display
area or press the [Utility/Counter] key.
Otherwise, cancel the Util
ity mode
by touching [Close] in each screen until the screen for the Copy, Fax,
Scan or Box mode appears.
495
497
