185
Timing Hold Section 2-2
[1] From the moment the Unit is turned ON until the first timing input is turned
ON and OFF.
[2] From the moment the reset input is turned ON until the timing input is ON
and OFF for the first time after the reset input is turned OFF.

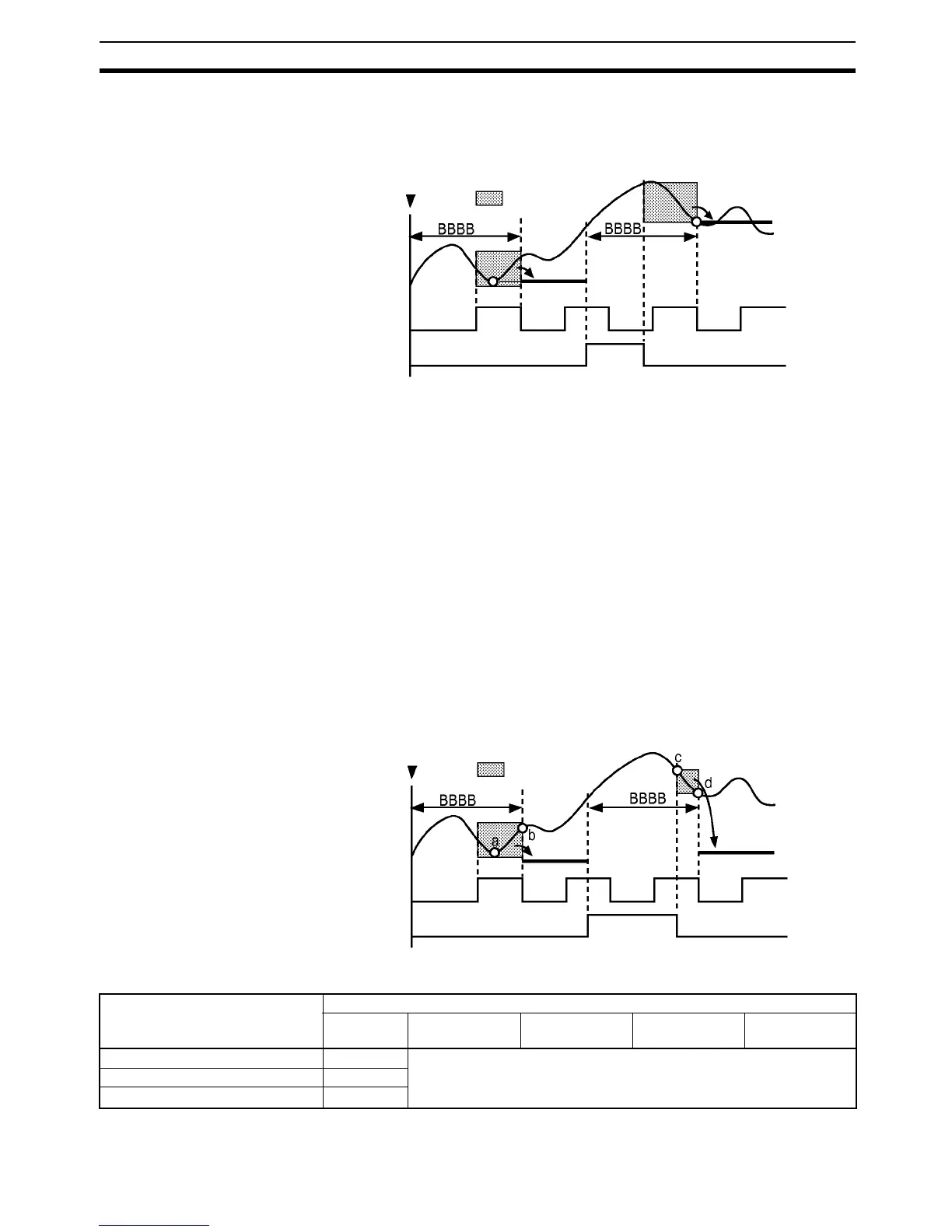

Peak-to-peak Hold If the timing hold mode is set to peak-to-peak hold, the Unit continues data
sampling while the TIMING input is ON.
• When the TIMING input is turned OFF and the measurement mode is
selected using the data input function, the difference between the maxi-
mum value and minimum value of the input data sampled between the
leading and trailing edge of the timing input is stored in the input word as
the scaled conversion data.
• When the TIMING input is turned OFF and the comparison mode is
selected using the data input function, the comparison result flags of the
input word are turned ON or OFF according to the comparison result pro-
cessed by the Unit.
The Unit stops data sampling during the following periods, The scaled conver-
sion data is “BBBB.”
[1] From the moment the Unit is turned ON until the first timing input is turned
ON and OFF.
[2] From the moment the reset input is turned ON until the timing input is ON
and OFF for the first time after the reset input is turned OFF.
Available Commands and Functions
Power on
Sensing section
Scaled conver-
sion data
Input
TIMING input
Reset input
[2]
[1]
Power on
Sensing section
Scaled con-
version data
Input
TIMING input
Reset input
b–a
c–d
[2]
[1]
Function (Command code) Timing Hold
Normal Sampling Hold Maximum Hold Minimum Hold Peak-to-peak
Hold
Scaling Value Teach (C5*0) Yes Command Error (Word status: E003)
Set Value Teach (C8*0) Yes
Present Value Read: BCD (CC00) Yes
