6.10 Replacing a MicroSD Card

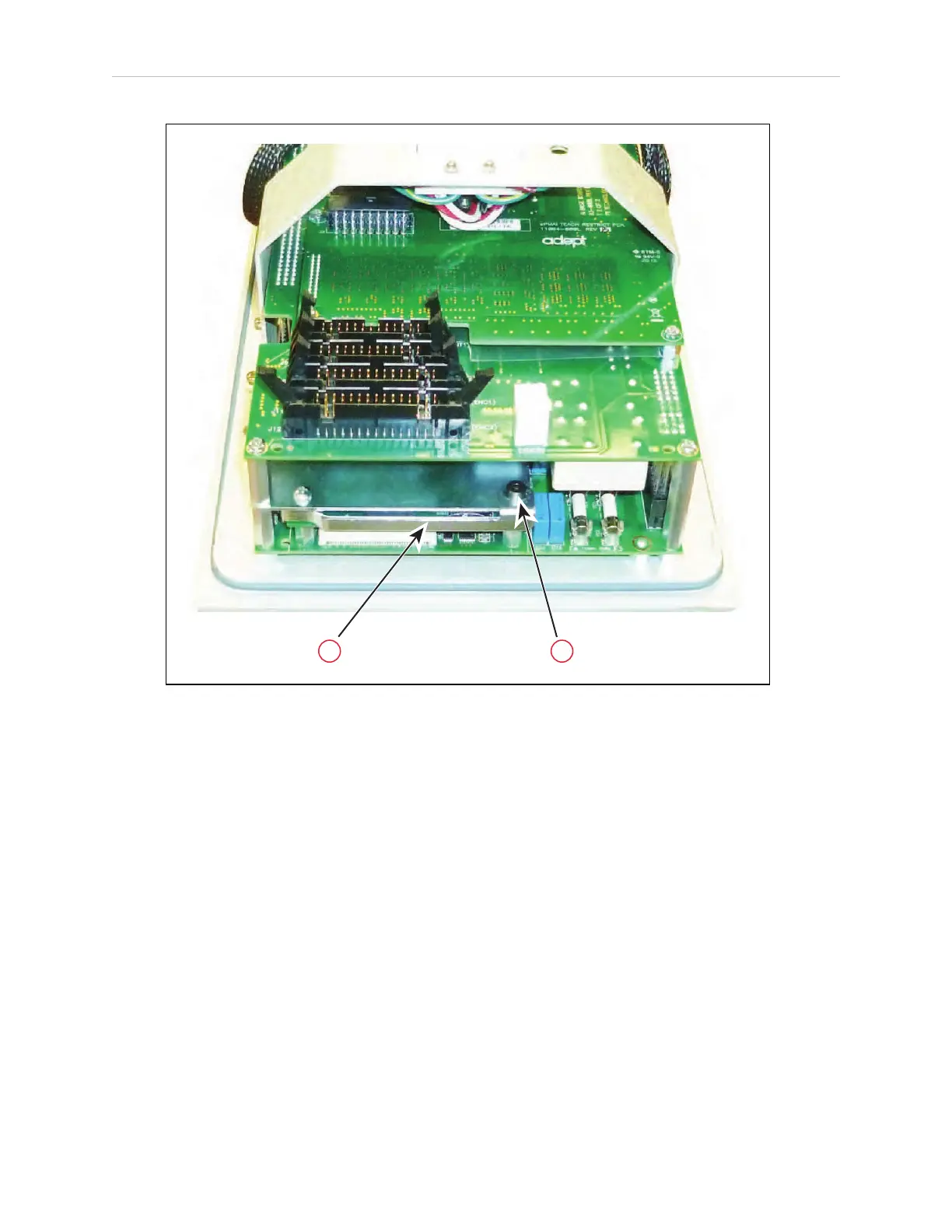

Figure 6-14. Connector-end of eAIB (with cables removed)
5.
Remove the (1)shoulder screw and (2) MicroSD retention bracket. See the previous fig-
ure.
Save both of these for re-installation.
6.
Remove the installed MicroSD card.
This is removed by pressing it all the way in, and then releasing. The card will pop out
slightly, and can be pulled out.
See the following figure.
