Chapter 5: System Operation
XIO Breakout Cable
The XIO Breakout cable is available as an option—see the following figure. This cable connects
to the XIO connector on the eAIB, and provides flying leads on the user’s end, for connecting
input and output signals in the workcell. The cable length is 5 M (16.4 ft).
For the wire chart on the cable, see the following table.
NOTE: This cable is not compatible with the XIO Termination Block.

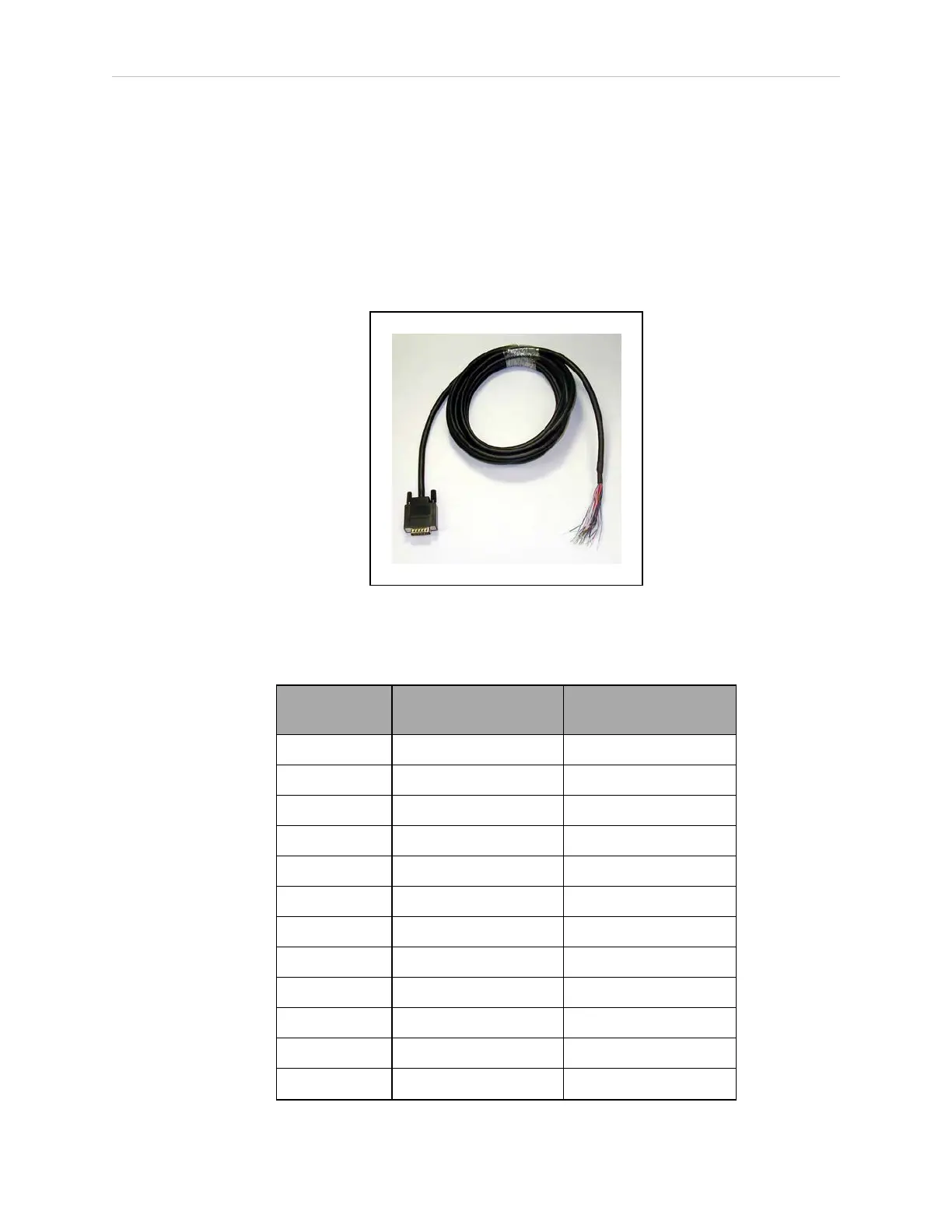

Figure 5-7. Optional XIO Breakout Cable
Table 5-11. XIO Breakout Cable Wire Chart
Pin No.
Signal
Designation Wire Color
1 GND White
2 24 VDC White/Black
3 Common 1 Red
4 Input 1.1 Red/Black
5 Input 2.1 Yellow
6 Input 3.1 Yellow/Black
7 Input 4.1 Green
8 Input 5.1 Green/Black
9 Input 6.1 Blue
10 GND Blue/White
11 24 VDC Brown
12 Common 2 Brown/White
14402-000 Rev. F eCobra User's Guide 93
