140 eCobra User's Guide 14402-000 Rev. F
7.7 Installing the Camera Bracket Kit
4.

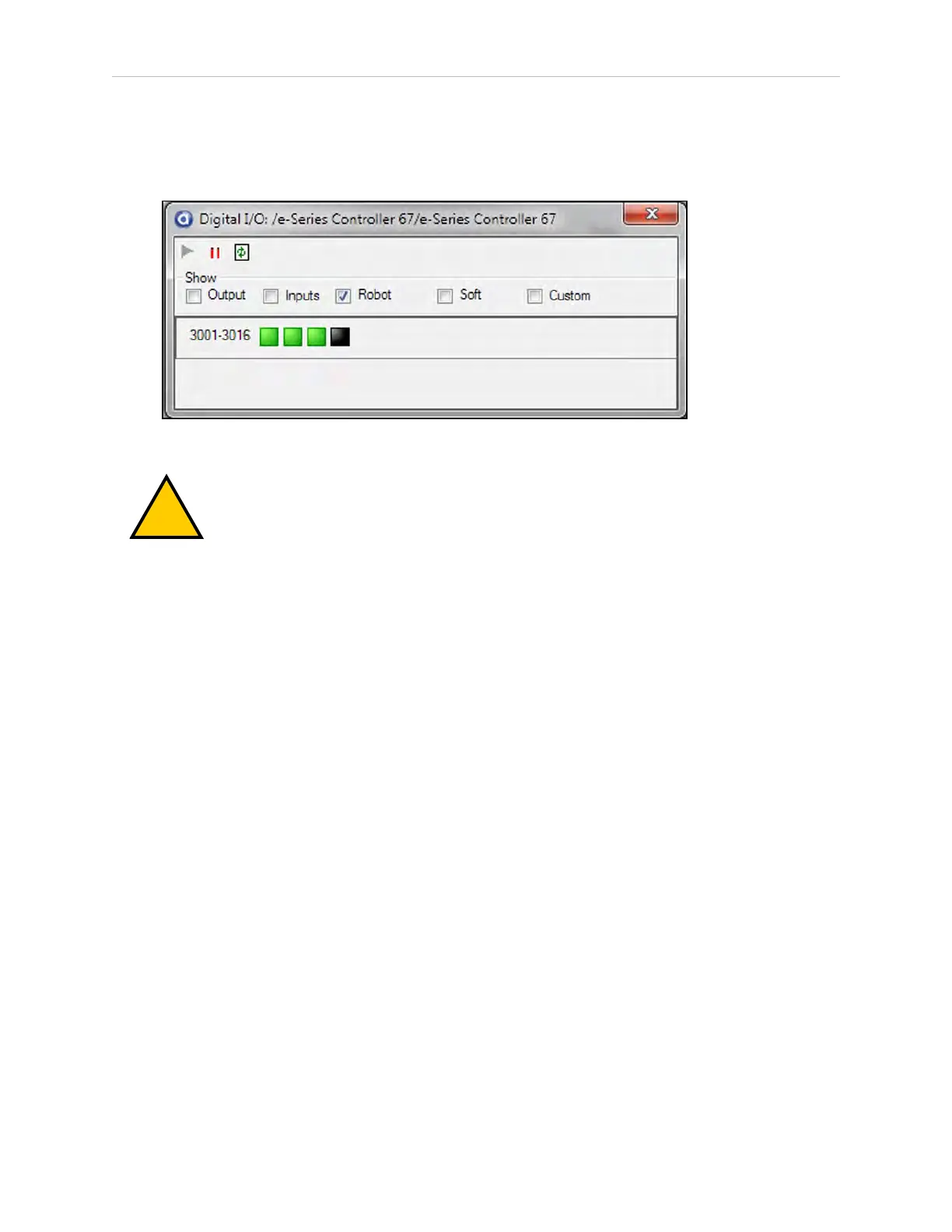

Select Signal 3001 and Signal 3002 (the first two blocks) to activate the solenoids one at
a time.
5.
The selected blocks will turn green, to indicate they are active.
CAUTION: PERSONALINJURYRISK
Disconnect robot air pressure until this test has been done to prevent unse-
cured pneumatic lines from accidentally injuring personnel.
7.7 Installing the Camera Bracket Kit
The eCobra Robot Camera Bracket Kit provides a convenient way of mounting cameras to the
outer link of the robot. The kit consists of the following:
l
One camera plate
l
Two camera brackets
l
One camera mount slide bracket
l
One camera mount channel
l
M4 x 12 mm screws
l
M4 stainless steel flat washers
l
M5 x 12 mm screws
Tools Required
l
M4 hex wrench
l
M3 hex wrench
