Omron eCobra 600 - Installing the Flange

124 eCobra User's Guide 14402-000 Rev. F
7.2 Removing and Installing the Tool Flange
flange behind the setscrew.
1
2
4
3

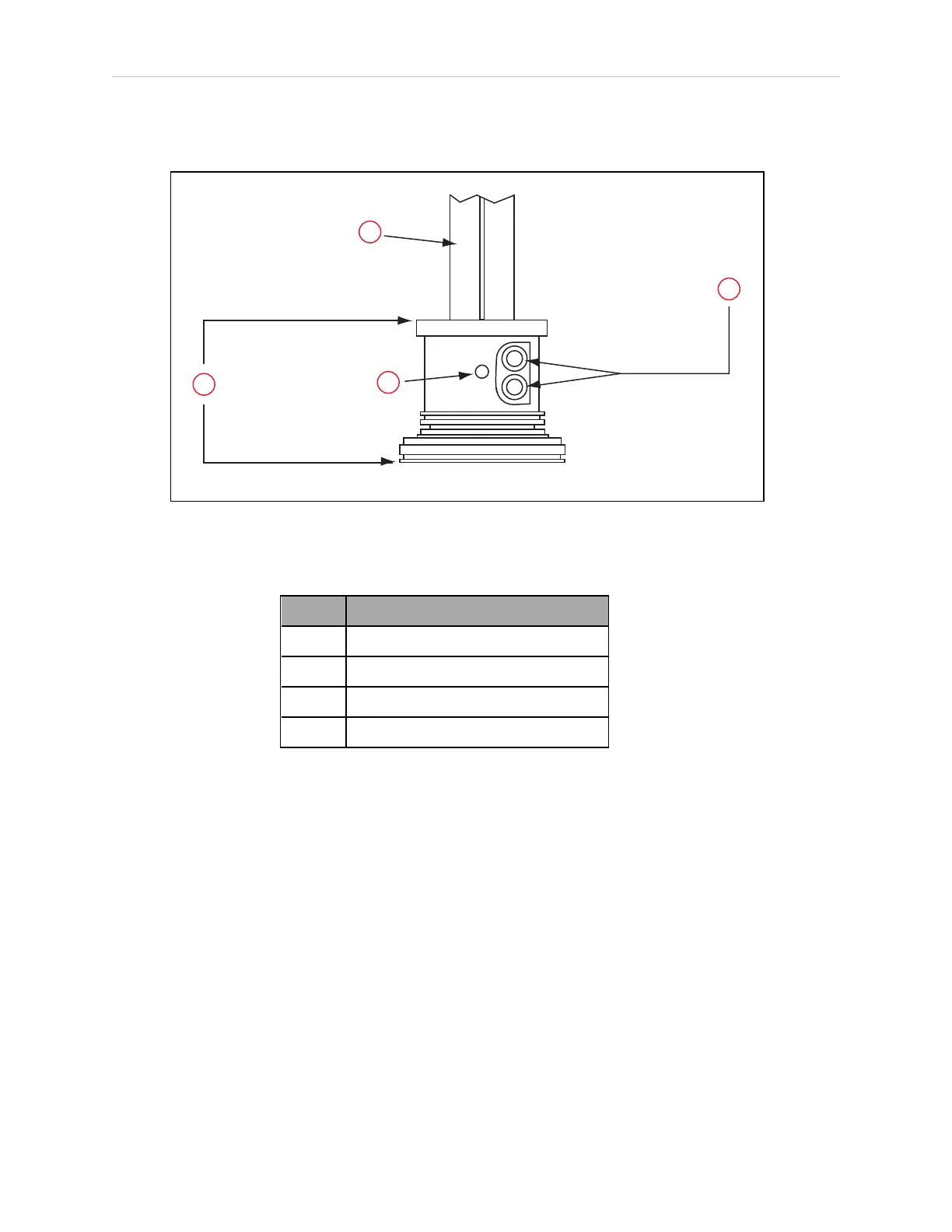

Figure 7-1. Tool Flange Removal Details
Table 7-1. Tool Flange Removal Description
Item Description
1 Tool FlangeAssembly
2 Quill Shaft
3 Setscrew
4 M4 Socket-head Cap Screws
Installing the Flange
1.
Make sure the steel ball is in the setscrew hole inside the flange. Hold it in place with
your finger as you get ready to install the flange.
2.
Slide the flange up on the quill shaft as far as it will go, and rotate until the setscrew is
lined up with the original vertical groove.
3.
Support the flange while using a 2.5 mm hex wrench to tighten the setscrew to finger
tight. Do not over-tighten the setscrew because this will cause the flange to be off-center
from the quill shaft.
4.
Use a socket driver to tighten one of the socket-head screws part of the way, then tighten
the other one the same amount. Alternate between the two screws so there is even pres-
sure on both once they are tight. The torque specification for each screw is 8 N·m (70 in-
lb).
