Omron eCobra 600 - Page 92

92 eCobra User's Guide 14402-000 Rev. F
5.5 Connecting Digital I/O to the System
Typical Output Wiring Example
M
+24 VDC
19
0097
20
0098
21
0099
22
0100
23
0101
24
0102
25
0103
26
0104
GND
GND
1
10
M
L
N
1
2
8
7
6
5
4
3

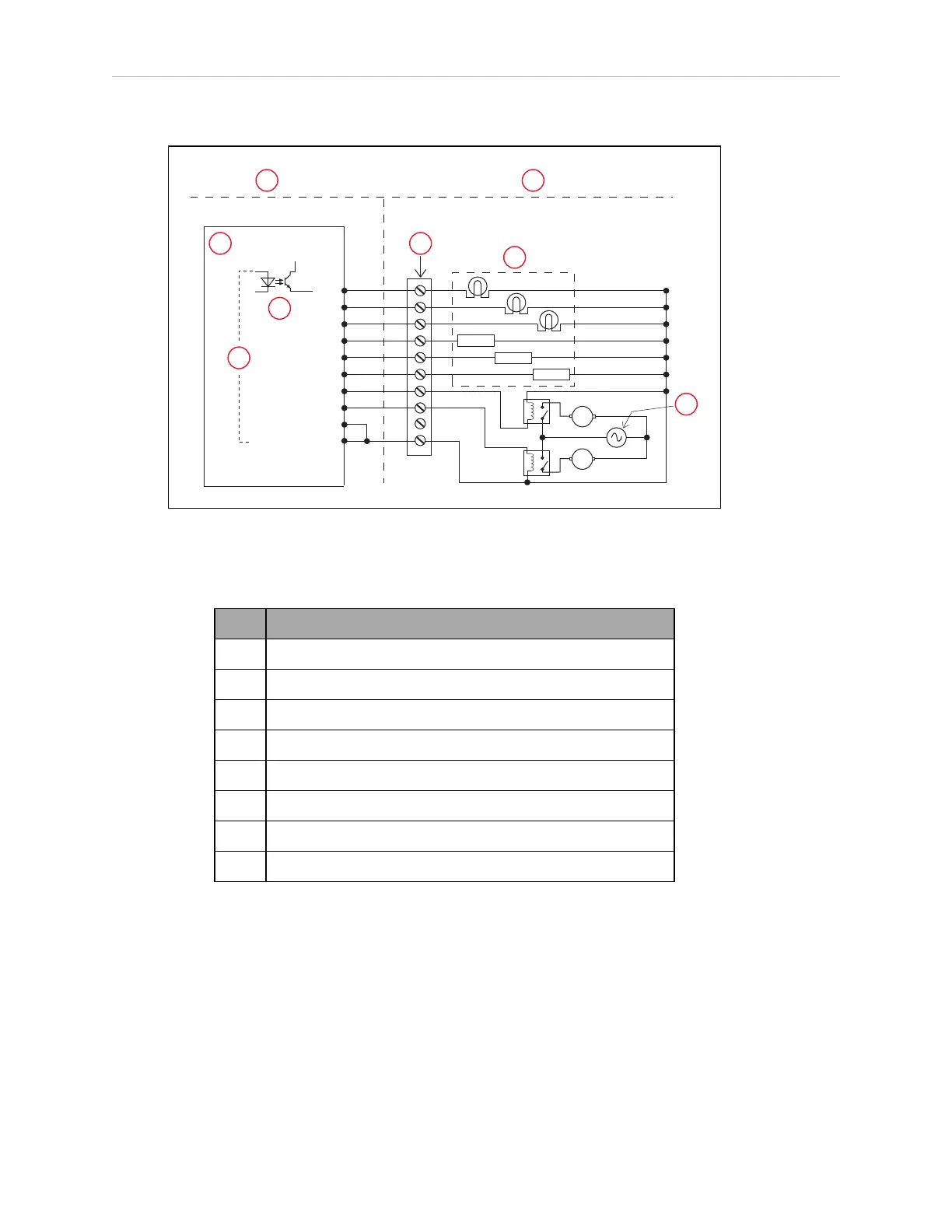

Figure 5-6. Typical User Wiring for XIO Output Signals
Table 5-10. Typical User Wiring for XIOOutput Signal Description
Item Description
1 Supplied Equipment
2
User-supplied Equipment
3 Wiring Terminal Block
4 Typical User Loads
5 Equivalent Circuit
6 Outputs 1 - 8
7 XIOConnector (26-Pin Female D-Sub)
8 Customer ACPower Supply
