Chapter 4: System Installation
E
E
N
L3
L
L1
L2
eCobra Robots
1Ø 200–240 VAC
1
2
4
3
3
5

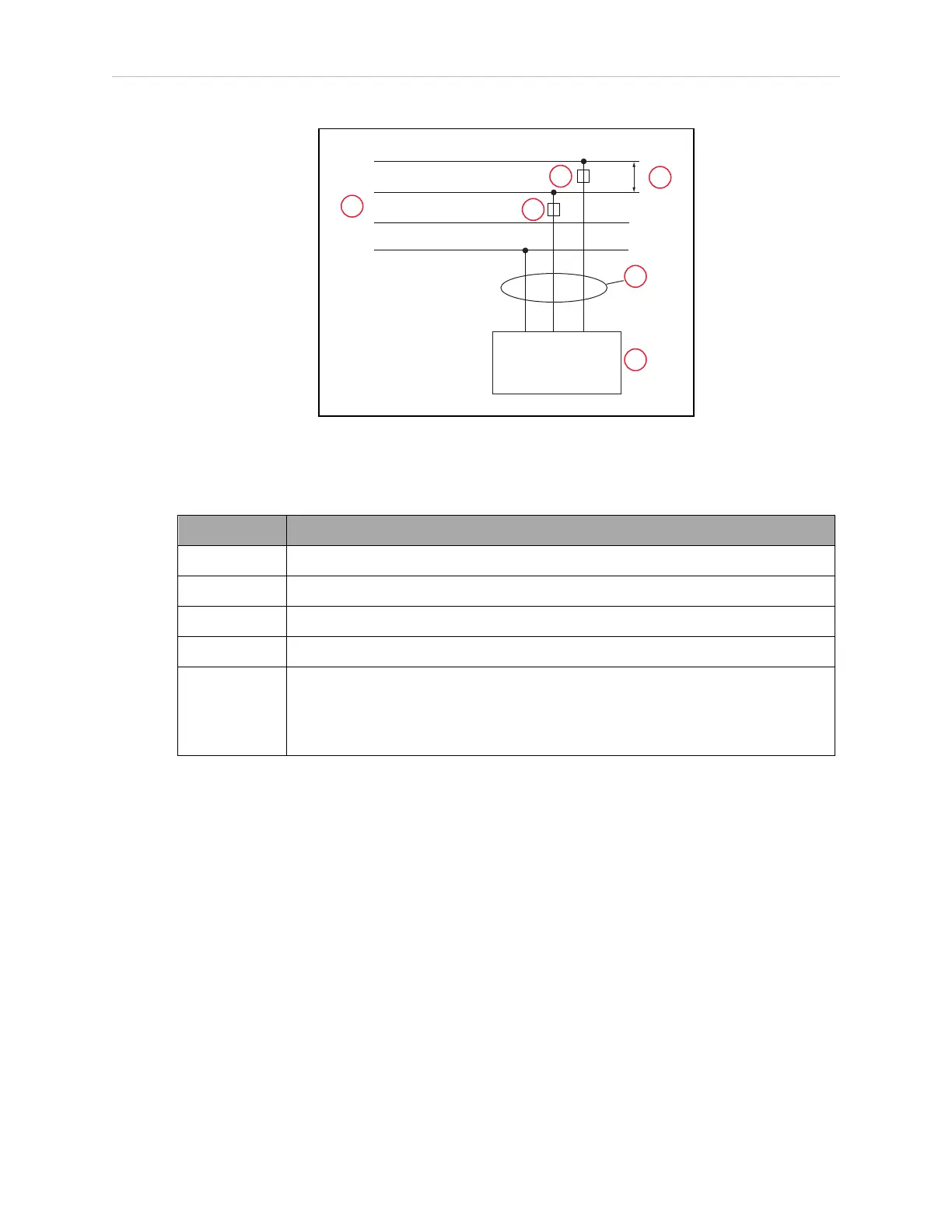

Figure 4-11. Single-Phase Load across L1 and L2 of a Three-Phase Supply
Table 4-13. Three-phase Power Supply Description
Item Description
1 3 Ø, 200-240 VAC
2 200 -240 VAC
3 User-supplied fuses, slow blow, 10 A
4 User-supplied ACPower Cable
5 L = Line 1
N = Line 2
E = Earth Ground
NOTE: If a three-phase power source is used, it must be symmetrically-earthed
(with grounded neutral). Connections called out as single-phase can be wired
Line-to-Neutral or Line-to-Line.
14402-000 Rev. F eCobra User's Guide 57
