6-33
Set Values
Setting Description
0 Inverter does not monitor undertorque.
1 Inverter monitors undertorque only while matching speed. It continues operation (warning)
even after undertorque is detected.
2 Inverter monitors undertorque only while matching speed. It discontinues operation
(protective operation) when undertorque is detected.
3
Inverter monitors undertorque during operation. It continues operation (warning)
even after undertorque is detected.
4
Inverter monitors undertorque during operation. It discontinues operation
(protective operation) when undertorque is detected.
• Set n117 (undertorque detection function selection, n118 (undertorque detection level) and n119 (un-
dertorque detection time) to enable the undertorque detection function. The Inverter will detect under-
torque when current (or torque) the same as or lower than the detection level is output for the preset
detection time.
• Set a multi-function input (n057 to n059) to output an undertorque detection signal to an external de-
vice.
Set value: 8 for undertorque detection (NO-contact input)
Set value: 9 for undertorque detection (NC-contact input)

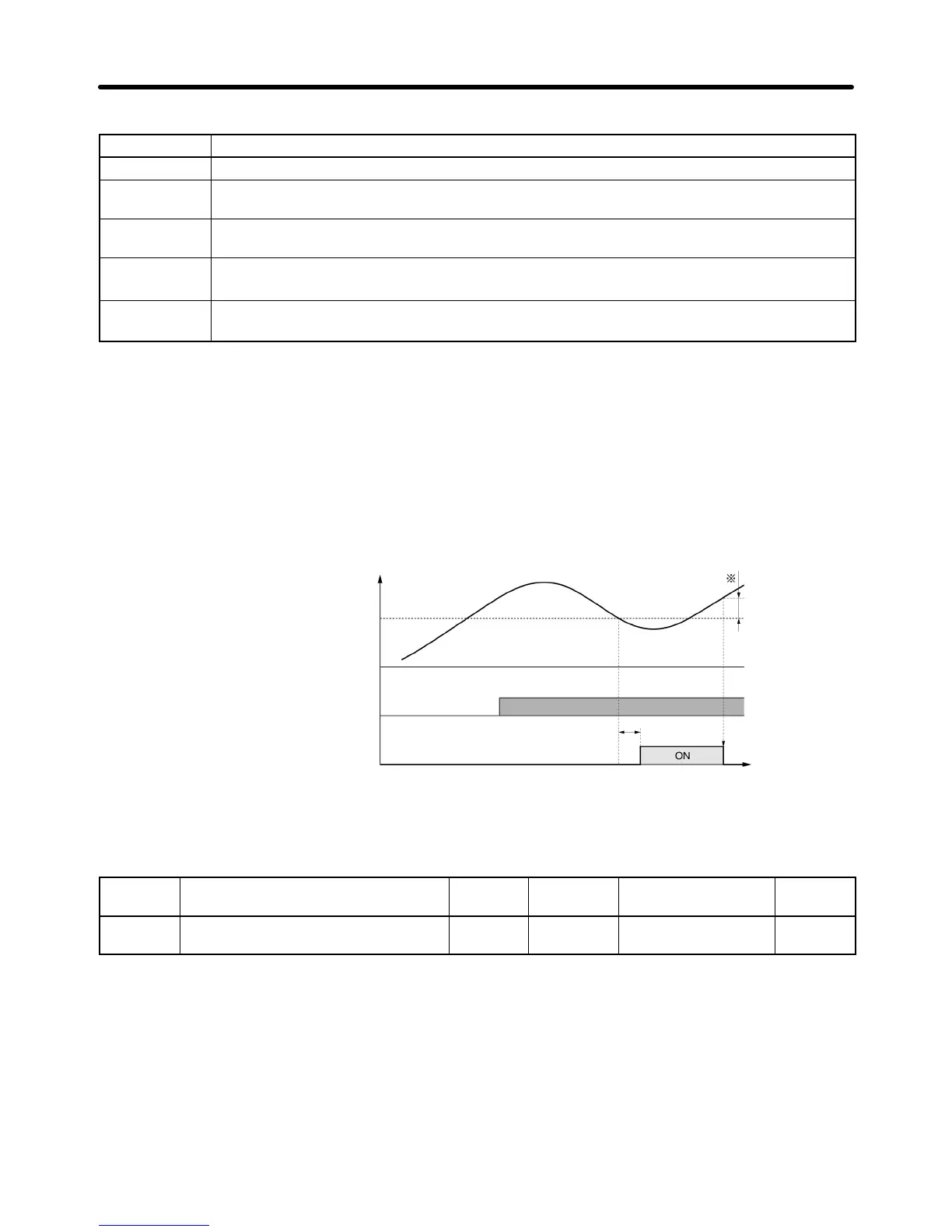

Undertorque detection
Undertorque detection
level (n118)
Frequency matching
Undertorque being
detected (NO con-
tact)
n119
Undertorque detection time
Time
Note Undertorque detection will be canceled if the value increases from the detection level by approxi-
mately 5% of the Inverter rated current (or motor’s rated torque).
n118
Undertorque detection level Register 0176 Hex Changes during
operation
No
Setting
range
0 to 200 Unit of
setting
1% Default setting 10%
Set Values
• Set the undertorque detection level.
To detect the level through the output torque, set the torque in a percentage based on the motor’s rated
torque as 100%.
To detect the level through the output current, set the current in percentage based on the rated current
of the Inverter as 100%.
Note With general-purpose motors, for example, a current equivalent to approx. 60% of the motor’s
rated current will be generated when there is no load. (This current will vary according to the type
Advanced Operation Chapter 6

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
