Omron SYSDRIVE 3G3MV SERIES User Manual

7-48

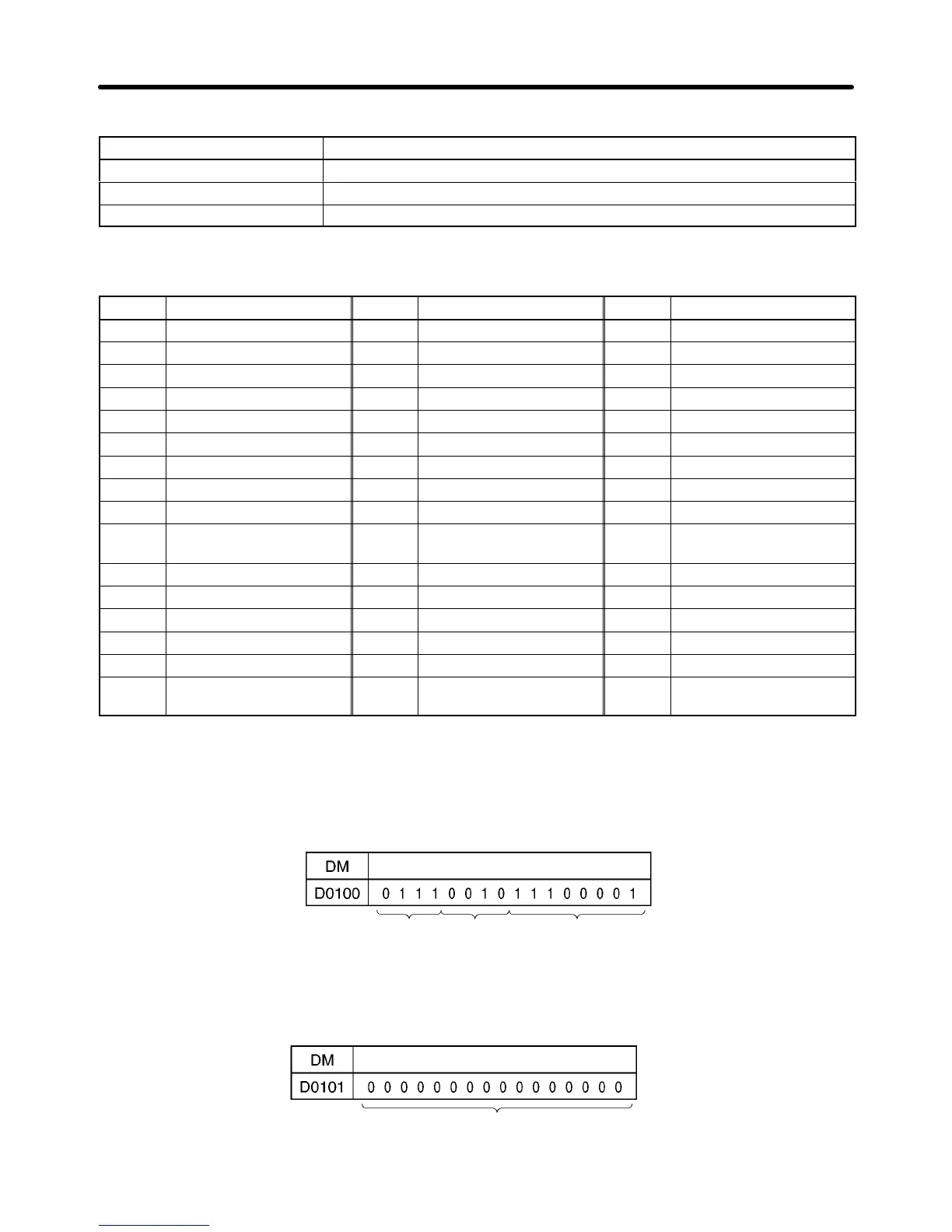

D Frequency Reference of Inverter (Register 0002 Frequency Reference)
DM Function
D0001 Slave 1 frequency reference
D0002 Slave 2 frequency reference
D0003 Slave 3 frequency reference
D Inverter Control Output (Register 002C Inverter Status)
Word Slave 1 function Word Slave 2 function Word Slave 3 function
01100 During RUN 01200 During RUN 01300 During RUN
01101 Zero speed 01201 Zero speed 01301 Zero speed
01102 Frequency agree 01202 Frequency agree 01302 Frequency agree
01103 Warning (Nonfatal error) 01203 Warning (Nonfatal error) 01303 Warning (Nonfatal error)
01104 Frequency detection 1 01204 Frequency detection 1 01304 Frequency detection 1
01105 Frequency detection 2 01205 Frequency detection 2 01305 Frequency detection 2
01106 Inverter ready 01206 Inverter ready 01306 Inverter ready
01107 UV 01207 UV 01307 UV
01108 Base block 01208 Base block 01308 Base block
01109 Frequency reference
mode
01209 Frequency reference
mode
01309 Frequency reference
mode
01110 RUN command mode 01210 RUN command mode 01310 RUN command mode
01111 Overtorque detection 01211 Overtorque detection 01311 Overtorque detection
01112 0 (Not used.) 01212 0 (Not used.) 01312 0 (Not used.)
01113 Fault retry 01213 Fault retry 01313 Fault retry
01114 Fault 01214 Fault 01314 Fault
01115 Communications time-
over
01215 Communications time-
over
01315 Communications time-
over
D Area Used by Operand of PMCR Instruction
• Control Data: C1
Communications
port 7
Serial
port 2
Communications
port E1
Area
• Control Data: C2
Set sequence number 000.
Area
Communications Chapter 7

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
