2-3

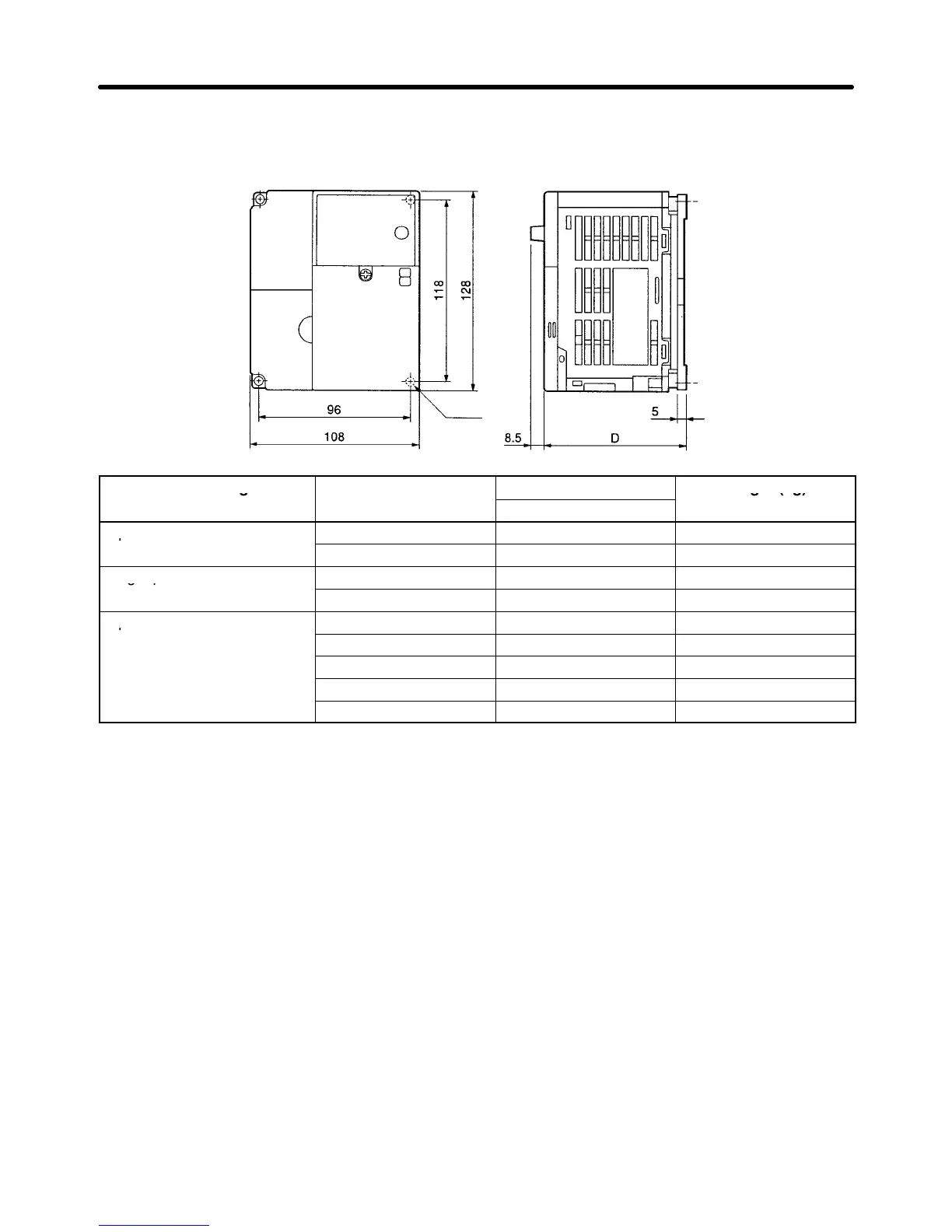

D 3G3MV-A2015 to 3G3MV-A2022 (1.5 to 2.2 kW) 3-phase 200-V AC Input
3G3MV-AB007 to 3G3MV-AB015 (0.75 to 1.5 kW) Single-phase 200-V AC Input
3G3MV-A4002 to 3G3MV-A4022 (0.2 to 2.2 kW) 3-phase 400-V AC Input
Four, 5 dia.
Rated voltage Model 3G3MV-
Dimensions (mm)
Weight (kg)
g
D
g(g)
3-phase 200 V AC
A2015 131 Approx. 1.4
p
A2022 140 Approx. 1.5
Single-phase 200 V AC
AB007 140 Approx. 1.5
gp
AB015 156 Approx. 1.5
3-phase 400 V AC
A4002 92 Approx. 1.0
p
A4004 110 Approx. 1.1
A4007 140 Approx. 1.5
A4015 156 Approx. 1.5
A4022 156 Approx. 1.5
Design Chapter 2
