2-4

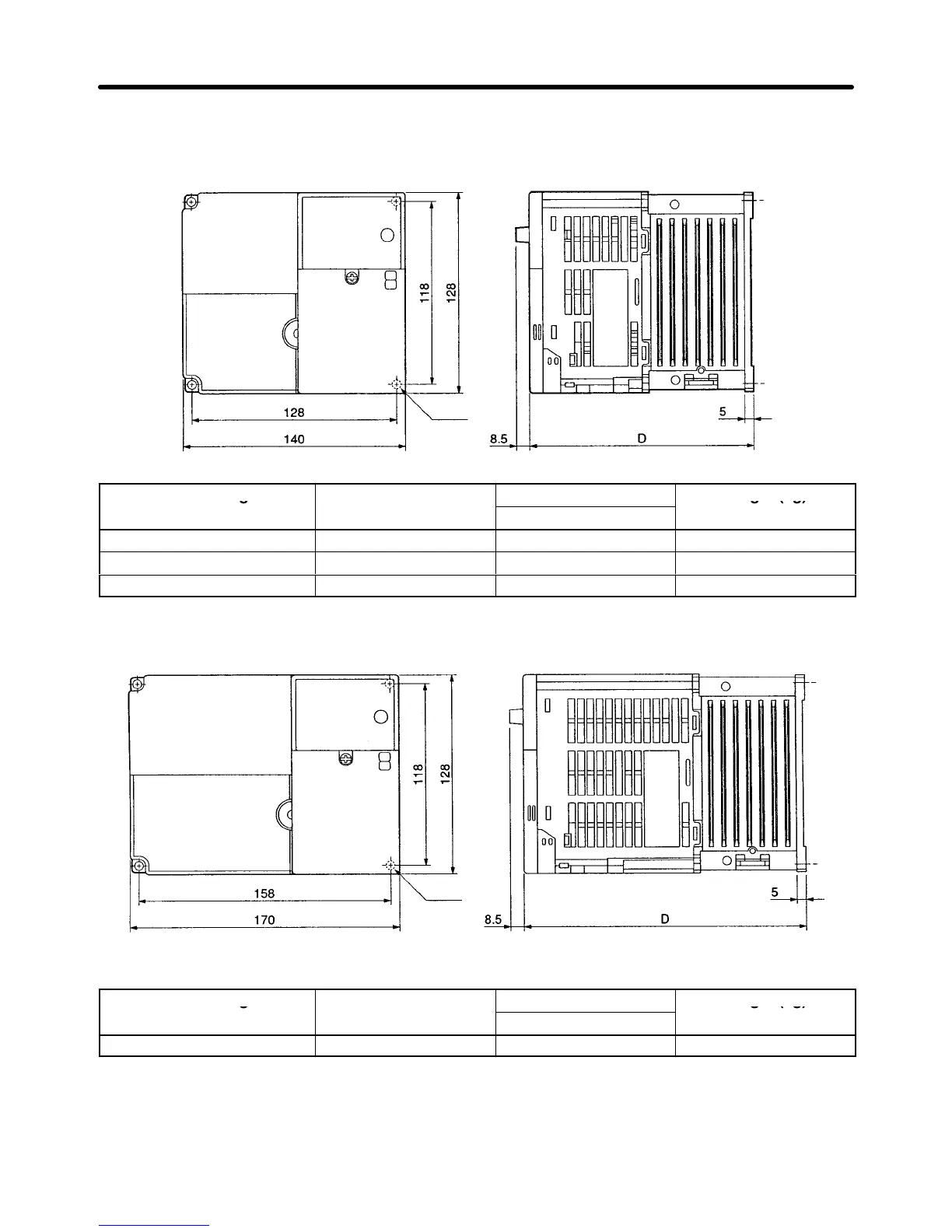

D 3G3MV-A2037 (3.7 kW) 3-phase 200-V AC Input
3G3MV-AB022 (2.2 kW) Single-phase 200-V AC Input
3G3MV-A4037 (3.7 kW) 3-phase 400-V AC Input
Four, 5 dia.
Rated voltage Model 3G3MV-
Dimensions (mm)
Weight (kg)
g
D
g(g)
3-phase 200 V AC A2037 143 Approx. 2.1
Single-phase 200 V AC AB022 163 Approx. 2.2
3-phase 400 V AC A4037 143 Approx. 2.1
D 3G3MV-AB037 (3.7 kW) Single-phase 200-V AC Input
Four, 5 dia.
Rated voltage Model 3G3MV-
Dimensions (mm)
Weight (kg)
g
D
g(g)
Single-phase 200 V AC AB037 180 Approx. 2.9
