Omron SYSDRIVE 3G3MV SERIES User Manual

2-37

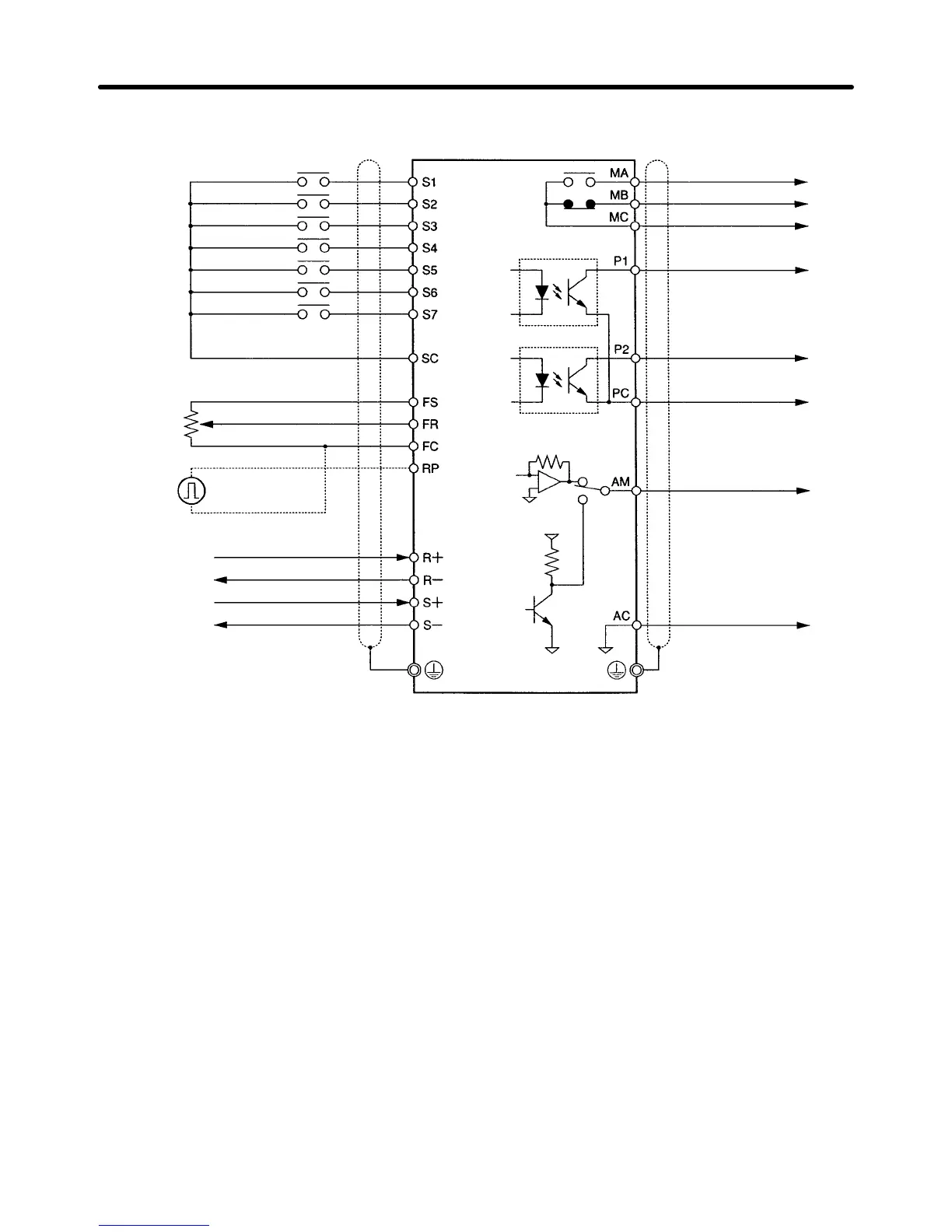

D Control Circuit Terminals
Multi-function input 1
External
frequency
adjuster (2 kΩ,
1/4 W min.)
Multi-function contact output
NO
NC
Common
Multi-function analog
output/Pulse monitor
output
Multi-function analog
output common
Multi-function input 2
Multi-function input 3
Multi-function input 4
Multi-function input 5
Multi-function input 6
Multi-function input 7
Pulse
generator
Pulse train input
Multi-function
photocoupler output 1
Multi-function
photocoupler output 2
Multi-function photocoupler
output common
RS-422
communications
(RS-485 selection)
Frequency reference power
supply 20 mA at +12 V
Frequency reference input
Frequency reference common
Sequence input common
Note I/O signals can be connected to a single shielded cable.
Design Chapter 2

Omron SYSDRIVE 3G3MV SERIES Specifications

General

Model	SYSDRIVE 3G3MV SERIES
Category	Inverter
Input Frequency	50/60 Hz
Output Frequency	0.1 to 400 Hz
Cooling Method	Forced Air Cooling
Input Voltage	200 to 240 VAC, 380 to 480 VAC
Horsepower Range	0.1 to 15 HP
Power Range	0.1 to 11 kW
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5 to 95% RH (non-condensing)
Vibration	5.9 m/s² or less
Voltage Class	200V, 400V
