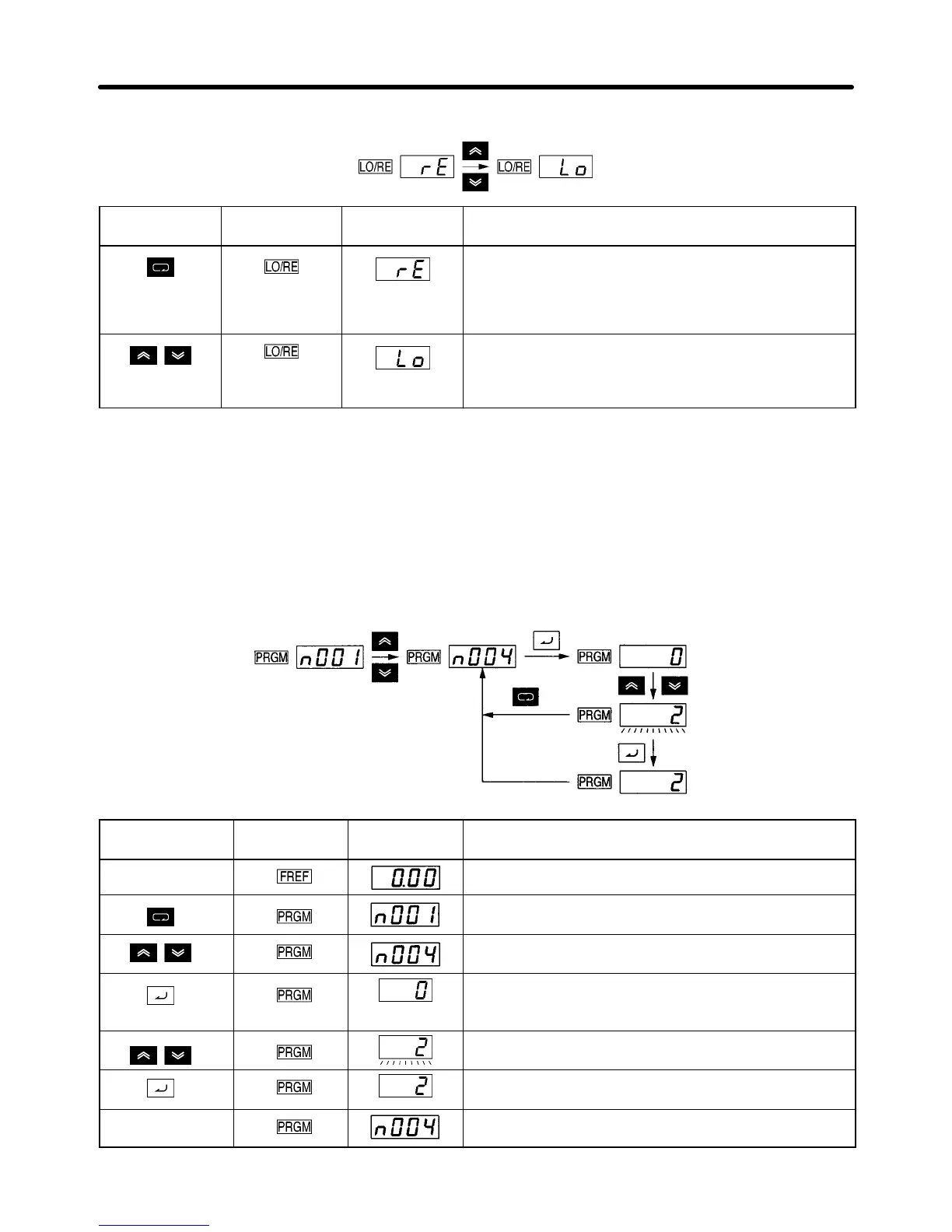

H Example of Local/Remote Selection Settings
Key sequence Indicator Display
example
Explanation
Press the Mode Key repeatedly until the LO/RE
indicator is lit.
The present setting will be displayed.
rE: Remote; Lo: Local
Use the Increment or Decrement Key to set the
Inverter to local or remote mode. The selection will be
enabled when the display changes after the key is
pressed.
Note 1. Local or remote selection is possible only when the Inverter is not in operation. The present
setting can be monitored when the Inverter is in operation.
Note 2. Local or remote settings in multi-function input terminals can be changed through the multi-
function input terminals only.
Note 3. Any RUN command input will be ignored while the LO/RE indicator is lit. To enable a RUN
command, first turn OFF the RUN command and then press the Mode Key to display an item
with a green indicator (FREF to MNTR). Finally, input the RUN command again.
H Example of Parameter Settings
Cancels set data.
In approximately 1 s.
Key sequence Indicator Display
example
Explanation
Power On
Press the Mode Key repeatedly until the PRGM
indicator is lit.
Use the Increment or Decrement Key to set the
parameter number.
Press the Enter Key.
The data of the selected parameter number will be
displayed.
Use the Increment or Decrement Key to set the data.
At that time the display will flash.
Press the Enter Key so that the set value will be
entered and the data display will be lit. (see note 1)
In approximately
1 s.
The parameter number will be displayed.
Preparing for Operation and Monitoring Chapter 3
