Step Display/Result
10. The display automatically returns to the display shown in step 5.

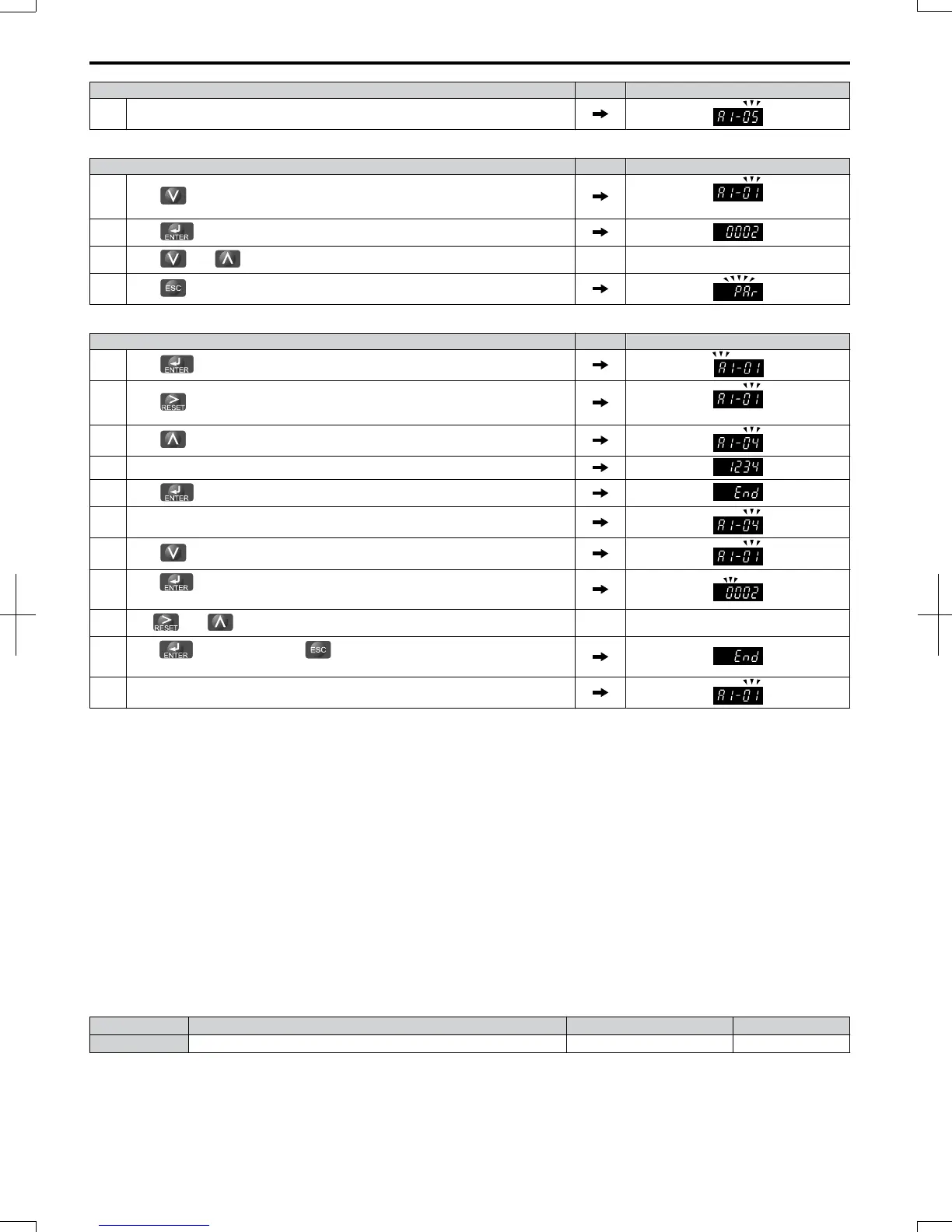

Table 5.3 Check to see if A1-01 is locked (continuing from step 10 above)
Step Display/Result
1.
Press to display A1-01.
“01” flashes
2.
Press to display the value set to A1-01.
3.
Press and , making sure that the setting values cannot be changed.
4.
Press to return to the first display.
Table 5.4 Enter the Password to Unlock Parameters (continuing from step 4 above)
Step Display/Result
1.
Press to enter the parameter setup display.
2.
Press to select the flashing digits as shown.
“01” flashes
3.
Press to scroll to A1-04.
4. Enter the password “1234”.
5.
Press to save the new password.
6. Drive returns to the parameter display.
7.
Press and scroll to A1-01.
8.
Press to display the value set to A1-01. If the first "0" blinks, parameter settings
are unlocked.
9.
Use and to change the value if desired. This is not typical.
10.
Press to save the setting, or to return to the previous display without saving
changes.
11. The display automatically returns to the parameter display.
Note: Parameter settings can be edited after entering the correct password. Performing a 2-Wire or 3-Wire initialization resets the password to
“0000”. Reenter the password to parameter A1-05 after drive initialization.
n
A1-06: Application Presets
Several Application Presets are available to facilitate drive setup for commonly used applications. Selecting one of these
Application Presets automatically sets the required parameters to default values and selects I/Os. In addition, Application
Preset parameters are assigned to the list of User Parameters, A2-01 through A2-16. These can be accessed in the Setup
Mode and provide quicker application adjustment by eliminating the need to scroll through multiple menus.
Refer to Application Selection on page 82 for details on parameter A1-06.
n
A1-07: FBDs Function Selection
FBDs is a software package that can be used to customize the drive functionality or add PLC functionality by the
interconnection and configuration of basic software function blocks. The drive performs the program created by the user
in 2 ms cycles.
Parameter A1-07 can be used to enable or disable the FBDs program inside the drive.
Note: 1. If FBDs assigned functions to any multi-function output terminals, those functions stay set after disabling FBDs.
2. For more information on FBDs, contact an OYMC representative.
No. Parameter Name Setting Range Default
A1-07 FBDs Function Selection 0 to 2 0
Setting 0: FBDs Disabled
Setting 1: FBDs Enabled
Setting 2: Digital Input
If a digital input is programmed for FBDs enable/disable (H1- = 9F), FBDs will be enabled when the input is disabled.
5.1
