Omron V1000 User Manual

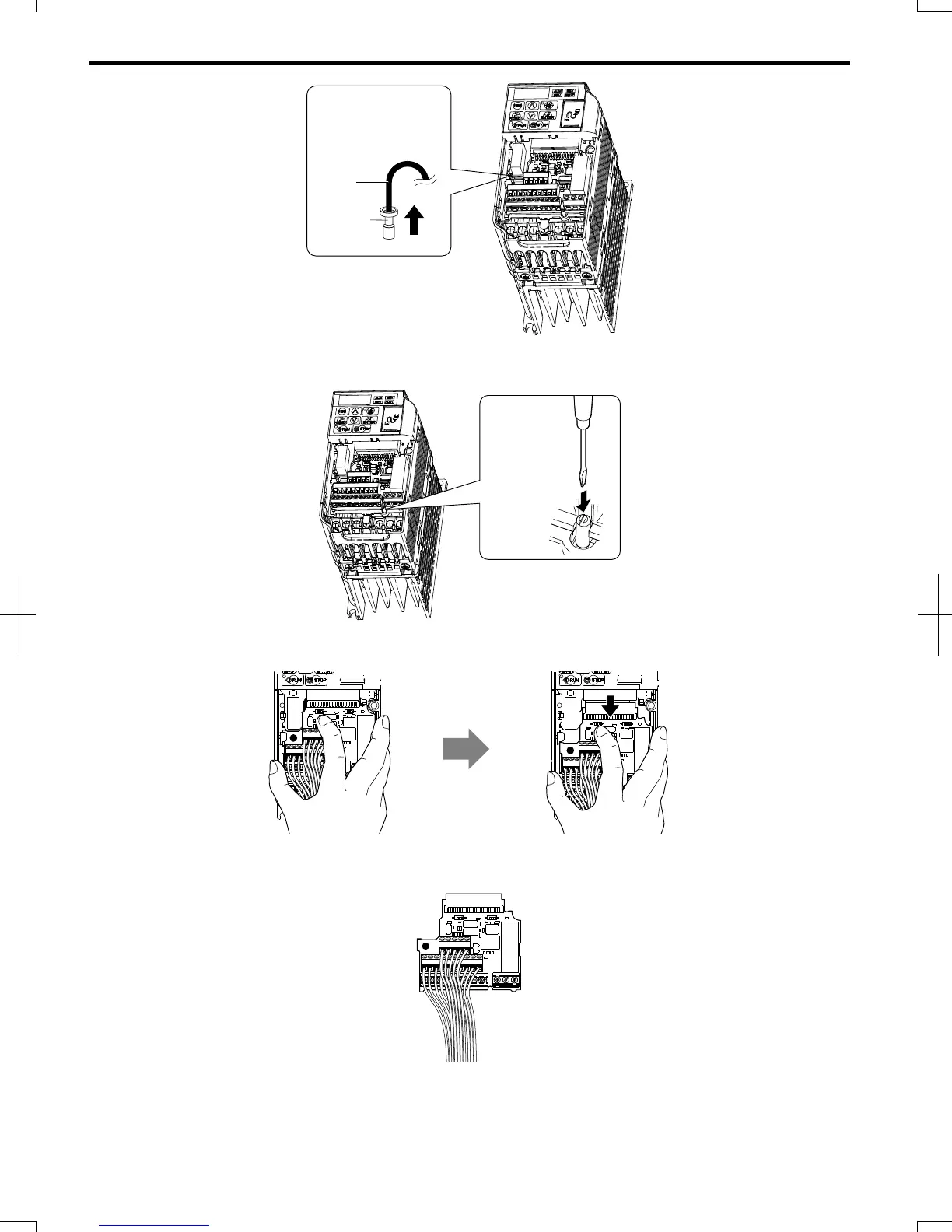

Pull out the
ground terminal
pin in the direction
indicated by
the arrow.
Cable
Terminal
Figure 7.6 Depress Plastic Tab
3.
Push down the installation pin on the terminal board with a screwdriver
Push down
the terminal
board locking
pin with a
screwdriver.
4.
While holding down the locking pin from step 3, slide the removable terminal block in the direction of the arrows
in Figure 7.7.
Figure 7.7 Removing the Terminal Board
Figure 7.8 Removable Terminal Board disconnected from the drive
n
Terminal Board Replacement
1.
Replace the removable terminal block on the drive according to Figure 7.9
7.5
Drive Replacement
270
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
7/16/2008-13:23

Omron V1000 Specifications

General

Cooling Method	Fan cooling
Enclosure Rating	IP20
Communication	Modbus RTU
Output Power	0.4-15kW
Output Frequency Range	0 to 400 Hz
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Supply Voltage	200-240V AC (3-phase)
