Omron V1000 User Manual

Single-Phase 200 V Class
C
D
D
I
E
J
B
G
A
F
H
N
L1
E
N
L1
PE
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
PE
A – Ground the cable shield
B – Enclosure panel
C – Metal plate
D – Grounding surface (remove any paint or sealant)
E – Drive
F – Motor cable (braided shield cable, max. 20 m)
G – Motor
H – Cable clamp
I – Wiring distance as short as possible
J – EMC noise filter

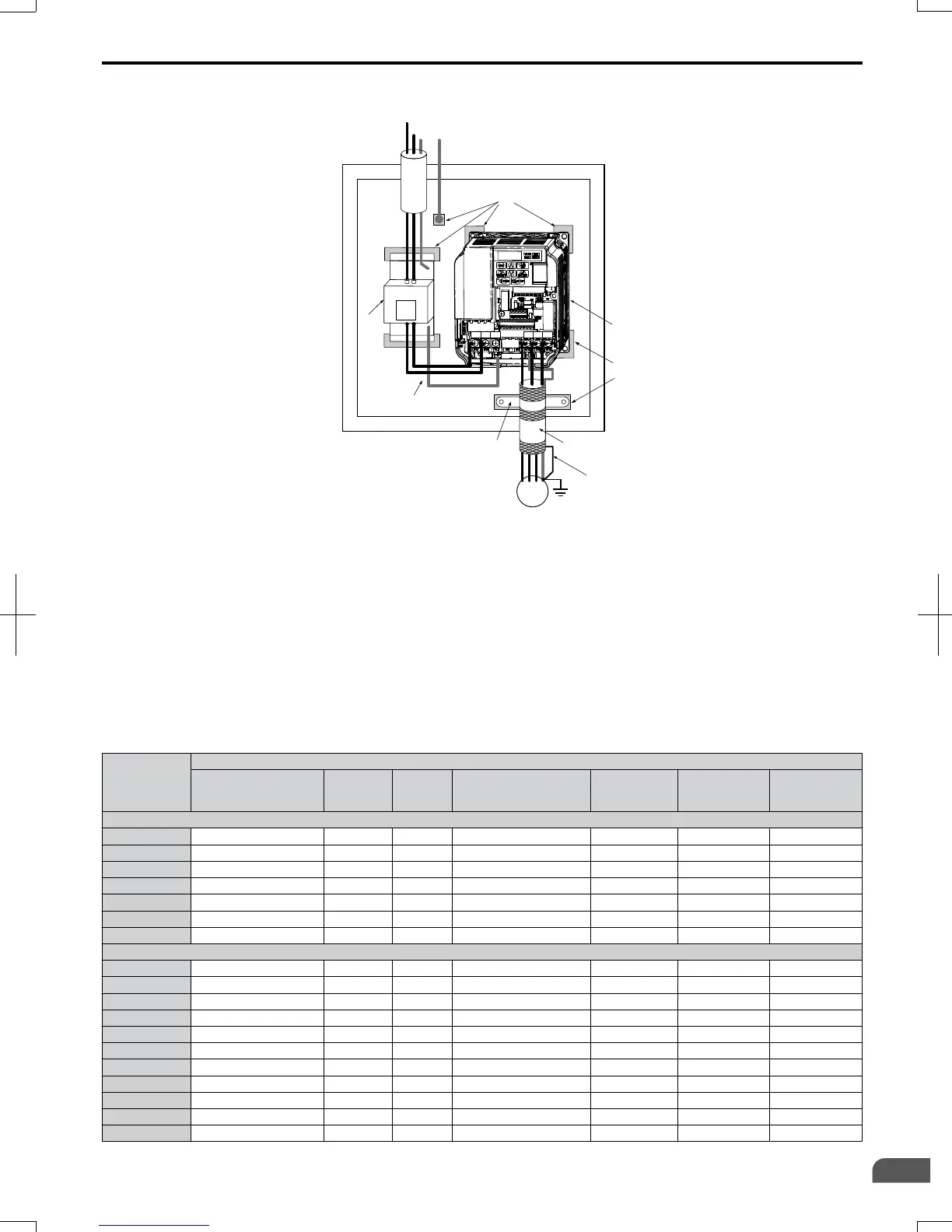

Figure D.5 EMC Filter and Drive Installation for CE Compliance (Single-Phase 200 V Class)
n
EMC Filters
The drive should be installed with the EMC filters listed below in order to comply with the EN 61800-3, category C1
requirements.
Note: If the Safe Disable function of the drive is part of the safety concept of a machine or installation and used for a safe stop according to
EN60204-1, stop category 0, use only filters manufactured by Schaffner as listed below.
Table D.2 EN 61800-3 Category C1 Filters
Drive
VZA
Filter Data (Manufacturer: Schaffner)
Type
Rated
Current
(A)
Weight
(kg)
Dimensions
[W x L x H] (mm)
Y x X
Drive
Mounting
Screw A
Filter
Mounting
Screw
200 V Single-Phase Units
B0P1 A1000–FIV1010–SE 10 0.44 71 x 169 x 45 51 x 156 M4 M5
B0P2 A1000–FIV1010–SE 10 0.44 71 x 169 x 45 51 x 156 M4 M5
B0P4 A1000–FIV1010–SE 10 0.44 71 x 169 x 45 51 x 156 M4 M5
B0P7 A1000–FIV1020–SE 20 0.75 111 x 169 x 50 91 x 156 M4 M5
B1P5 A1000–FIV1020–SE 20 0.75 111 x 169 x 50 91 x 156 M4 M5
B2P2 A1000–FIV1030–SE 30 1.1 144 x 174 x 50 120 x 161 M4 M5
B4P0 A1000–FIV1040–SE 40 1.3 174 x 174 x 50 150 x 161 M4 M5
200 V Three-Phase Units
20P1 A1000–FIV2010–SE 7.3 0.4 71 x 169 x 40 51 x 156 M4 M5
20P2 A1000–FIV2010–SE 7.3 0.4 71 x 169 x 40 51 x 156 M4 M5
20P4 A1000–FIV2010–SE 7.3 0.4 71 x 169 x 40 51 x 156 M4 M5
20P7 A1000–FIV2010–SE 7.3 0.4 71 x 169 x 40 51 x 156 M4 M5
21P5 A1000–FIV2020–SE 14 0.6 111 x 169 x 45 91 x 156 M4 M5
22P2 A1000–FIV2020–SE 14 0.6 111 x 169 x 45 91 x 156 M4 M5
24P0 A1000–FIV2030–SE 24 0.9 144 x 174 x 50 120 x 161 M4 M5
25P5 A1000–FIV2050–SE 52 2.0 137 x 304 x 56 100 x 289 M5 M5
27P5 A1000–FIV2050–SE 52 2.0 137 x 304 x 56 100 x 289 M5 M5
2011 A1000–FIV2080–SE 68 2.6 175 x 340 x 65 130 x 325 M5 M6
2015 A1000–FIV2100–SE 80 3.1 212 x 393 x 65 167 x 378 M6 M8
D.2 European Standards
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
385
D
Standards Compliance
7/16/2008-13:23

Omron V1000 Specifications

General

Cooling Method	Fan cooling
Enclosure Rating	IP20
Communication	Modbus RTU
Output Power	0.4-15kW
Output Frequency Range	0 to 400 Hz
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Supply Voltage	200-240V AC (3-phase)
