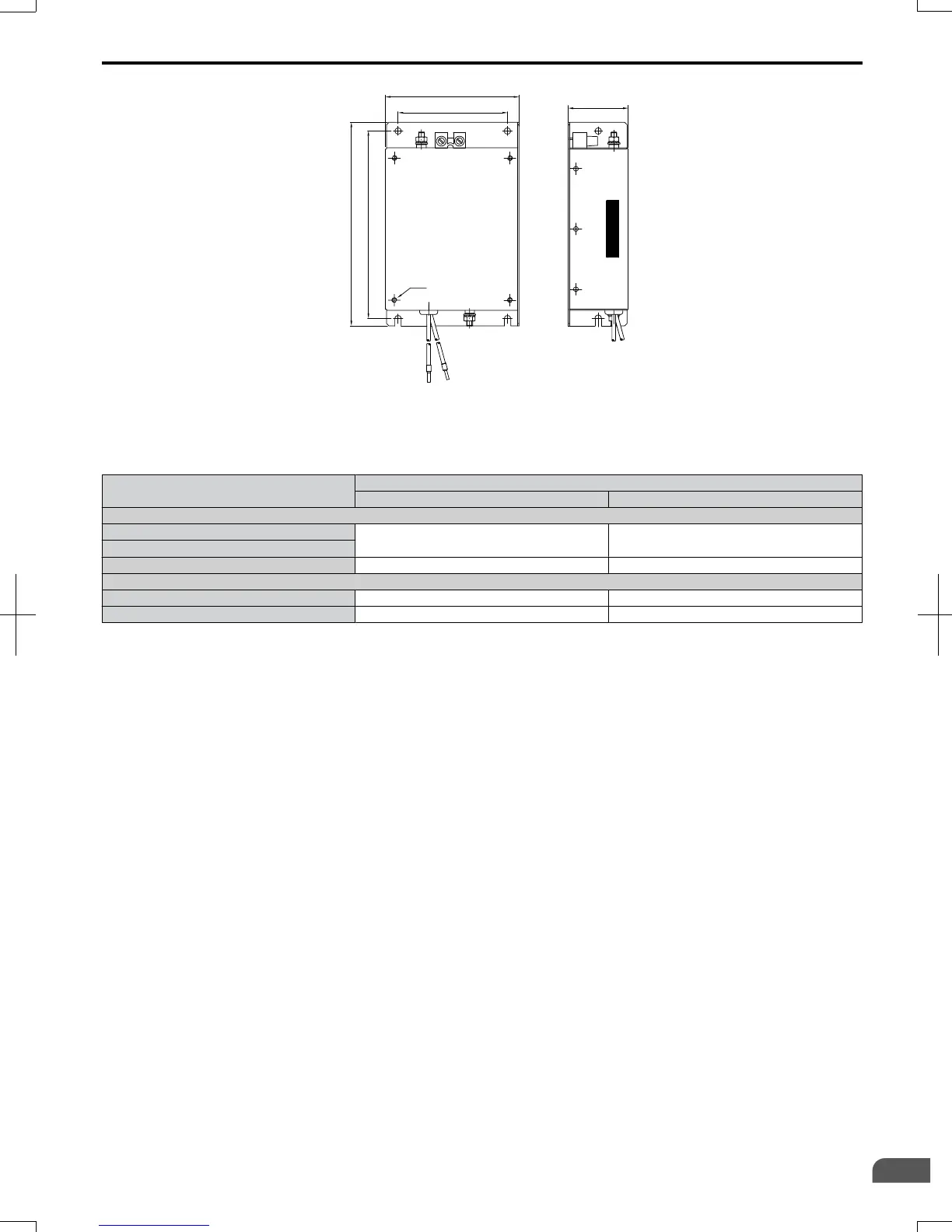

Figure D.6 EMC Filter Dimensions
n
DC Reactors for EN 61000-3-2 Compliance
Table D.4 DC Reactors for Harmonics Reduction
Drive Model
VZA
DC Reactor
Model Rating
200V Single-Phase Units
B0P1
3.5 A 30 mH
B0P2
B0P4 6.7 A 25 mH
400 V Three-Phase Units
40P2 3.5 A 3.0 mH
40P4 2.7 A 12.5 mH
Note: Contact your OYMC sales representative for information about DC reactors for other models.
D.2 European Standards
SIEP C710606 20 OYMC AC Drive - V1000 User Manual
387
D
Standards Compliance
7/16/2008-13:23

Omron V1000 Specifications

General

Cooling Method	Fan cooling
Enclosure Rating	IP20
Communication	Modbus RTU
Output Power	0.4-15kW
Output Frequency Range	0 to 400 Hz
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Supply Voltage	200-240V AC (3-phase)
