Connect to a 10-GbE Client Access Network

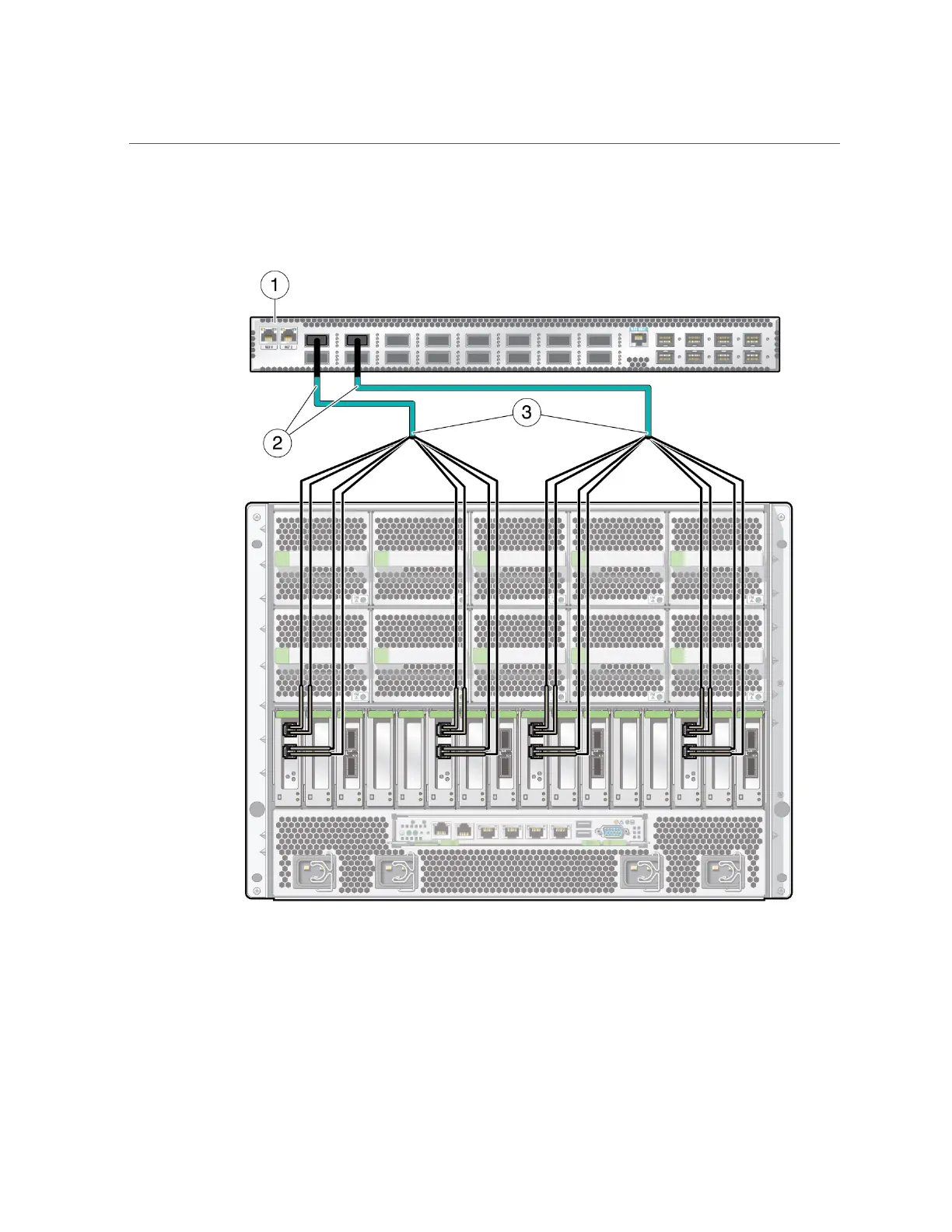

FIGURE 23
Example Connection to the 10 GbE Client Access Network
Figure Legend
1
10 GbE switch with QSFP connections (Sun Network 10GbE Switch 72p shown)
2
QSFP connector ends of SFP-QSFP cables, connecting to QSFP ports on 10 GbE switch
138
Oracle SuperCluster T5-8 Owner's Guide • May 2016
137
139
