Connector Locations

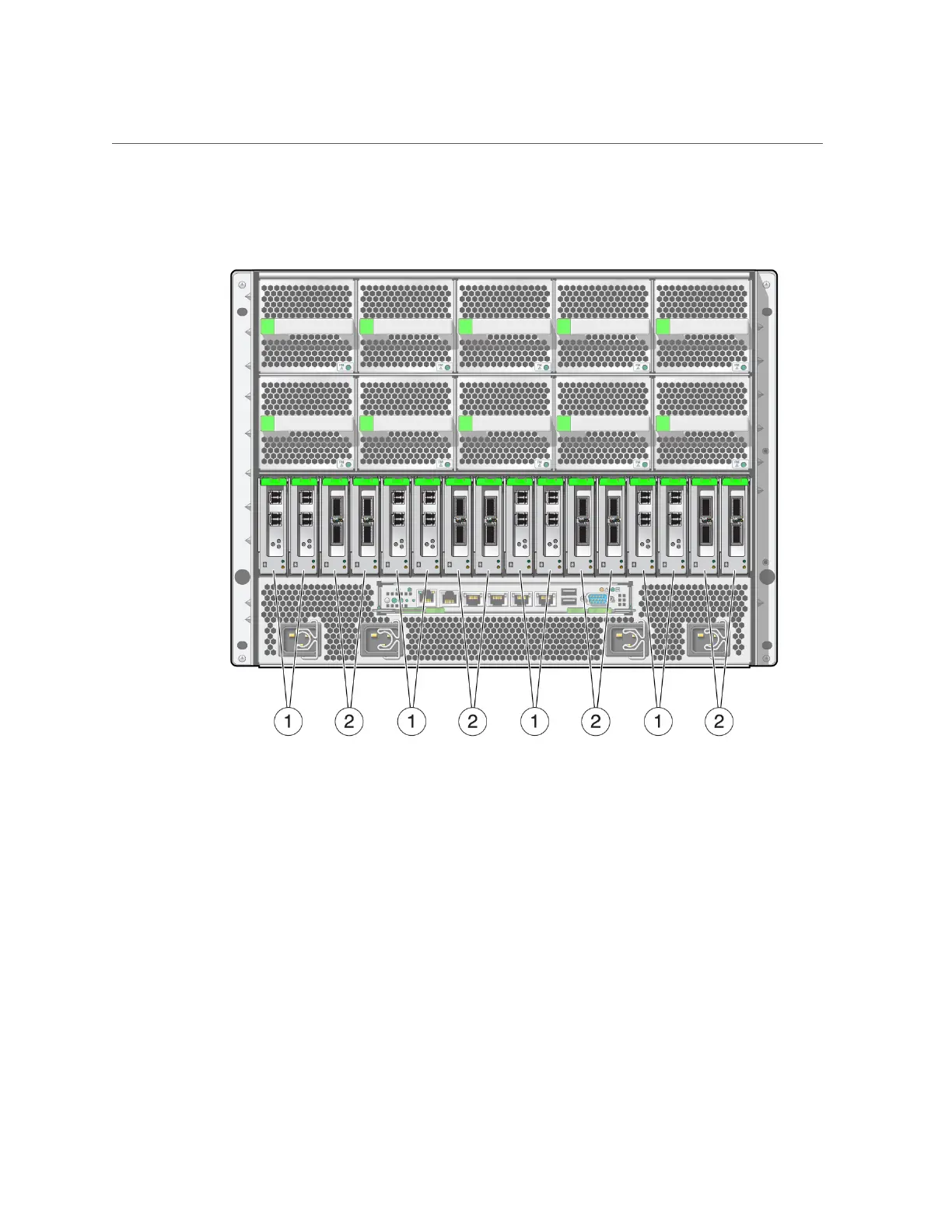

FIGURE 25
SPARC T5-8 Server Card Locations (Full Rack)
Figure Legend
1
Dual-port 10 GbE network interface cards, for connection to the 10 GbE client access network
2
Dual-port InfiniBand host channel adapters, for connection to the InfiniBand network
Understanding Internal Cabling 247
