Understanding the Hardware Components and Connections

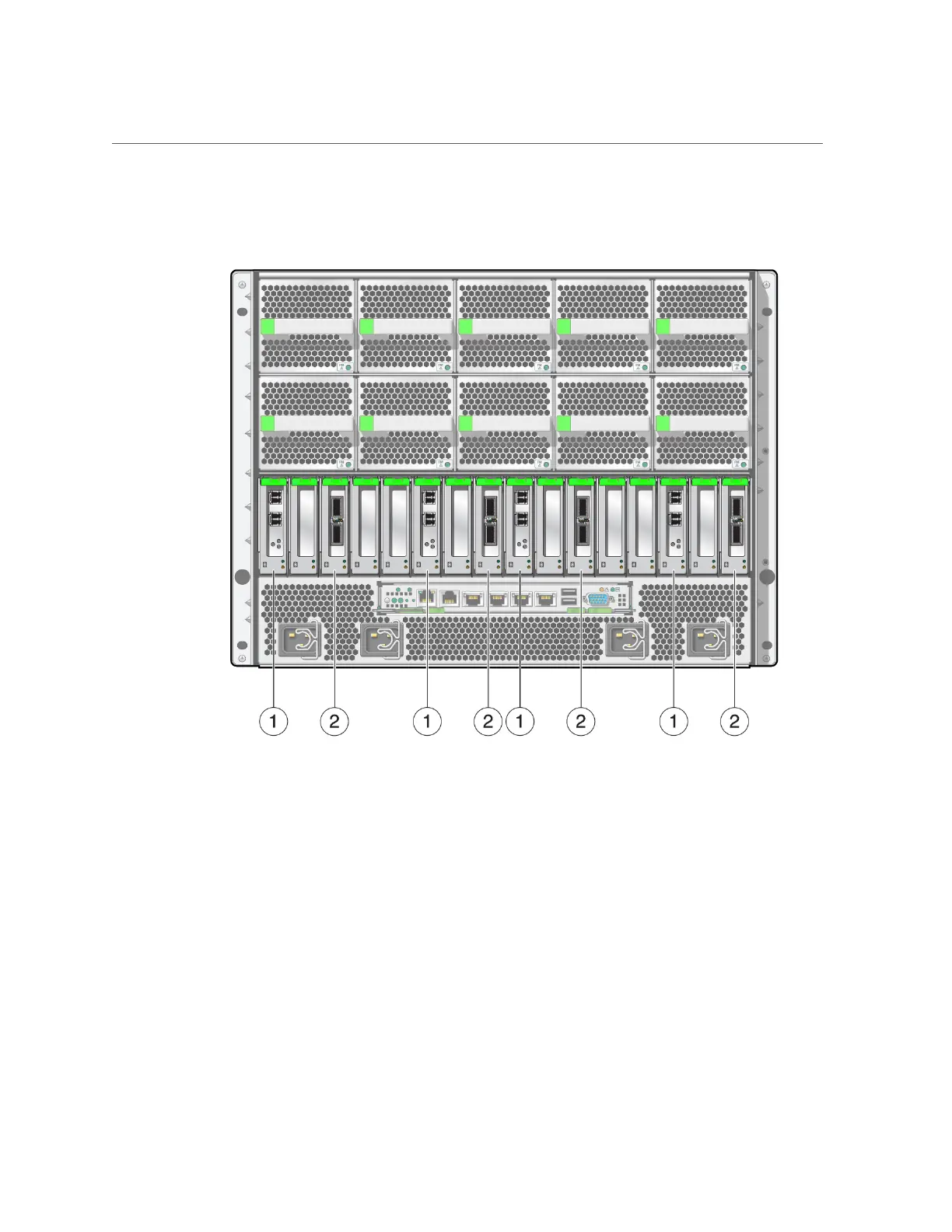

FIGURE 6
Card Locations (Half Rack)
Figure Legend
1
Dual-port 10-GbE network interface cards, for connection to the 10-GbE client access network (see “10-GbE
Client Access Network Physical Connections (SPARC T5-8 Servers)” on page 35)
2
Dual-port InfiniBand host channel adapters, for connection to the InfiniBand network (see “InfiniBand Private
Network Physical Connections (SPARC T5-8 Servers)” on page 32)
NET MGT and NET0-3 Port Locations (SPARC T5-8 Servers)
The following figure shows the NET MGT and NET0-3 ports that will be used for the physical
connections for the SPARC T5-8 servers.
