Understanding the Hardware Components and Connections

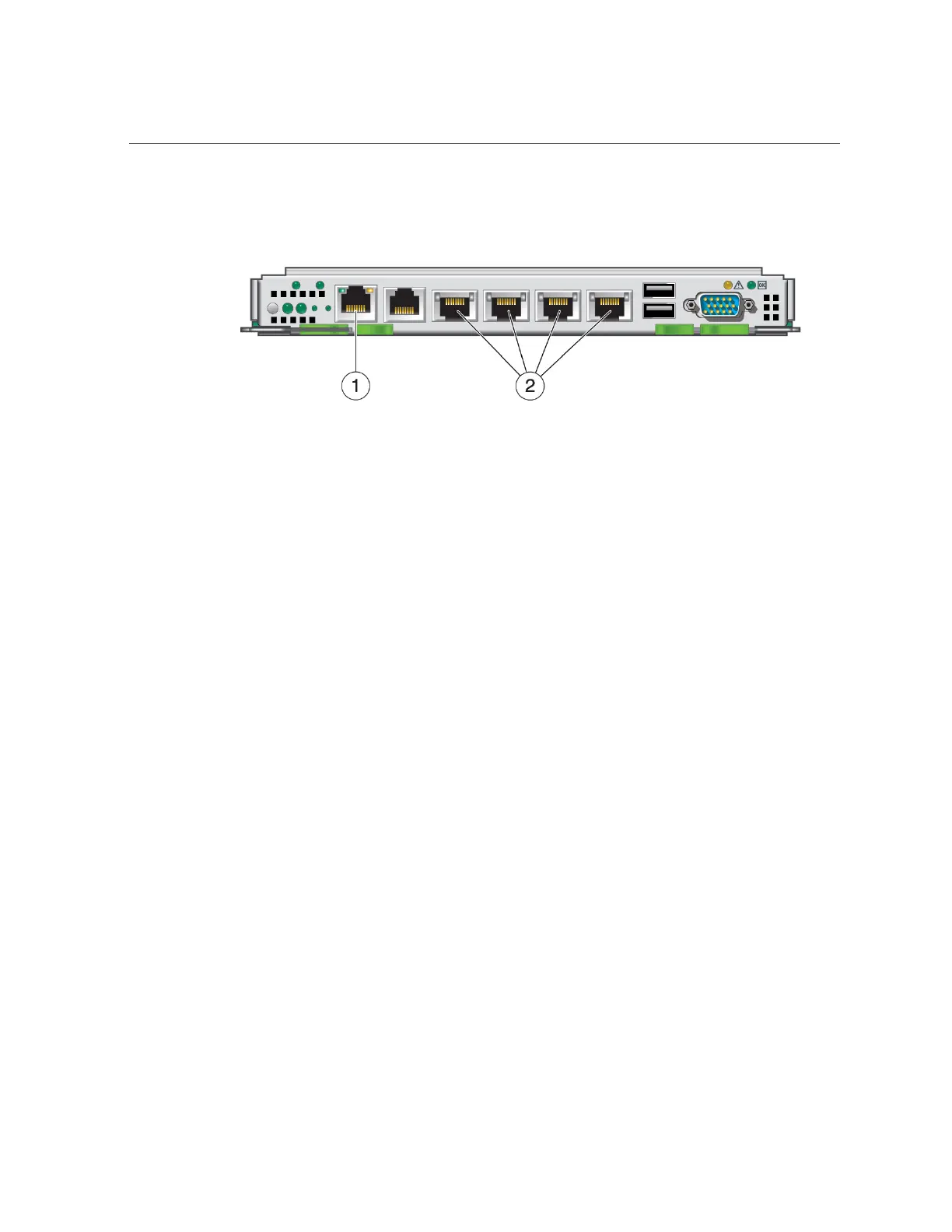

FIGURE 7
NET MGT and NET0-3 Port Locations
Figure Legend
1
NET MGT port, for connection to Oracle ILOM management network (see “Oracle ILOM Management
Network Physical Connections (SPARC T5-8 Servers)” on page 35)
2
NET0-NET3 ports, for connection to 1-GbE host management network (see “1-GbE Host Management Network
Physical Connections (SPARC T5-8 Servers)” on page 35)
InfiniBand Private Network Physical Connections (SPARC T5-8 Servers)
Each SPARC T5-8 server contains several dual-ported Sun QDR InfiniBand PCIe Low Profile
host channel adapters (HCAs). The number of InfiniBand HCAs and their locations in the
SPARC T5-8 servers varies, depending on the configuration of Oracle SuperCluster T5-8:
■
Full Rack: Eight InfiniBand HCAs, installed in these PCIe slots:
■
PCIe slot 3
■
PCIe slot 4
■
PCIe slot 7
■
PCIe slot 8
■
PCIe slot 11
■
PCIe slot 12
■
PCIe slot 15
■
PCIe slot 16
■
Half Rack: Four InfiniBand HCAs, installed in these PCIe slots:
■
PCIe slot 3
■
PCIe slot 8
■
PCIe slot 11
■
PCIe slot 16
32 Oracle SuperCluster T5-8 Owner's Guide • May 2016
