Operation
48 900-0117-01-00 Rev B
From the
FLEXnet DC
screen, the
<Next>
soft key brings up the following screens.
.

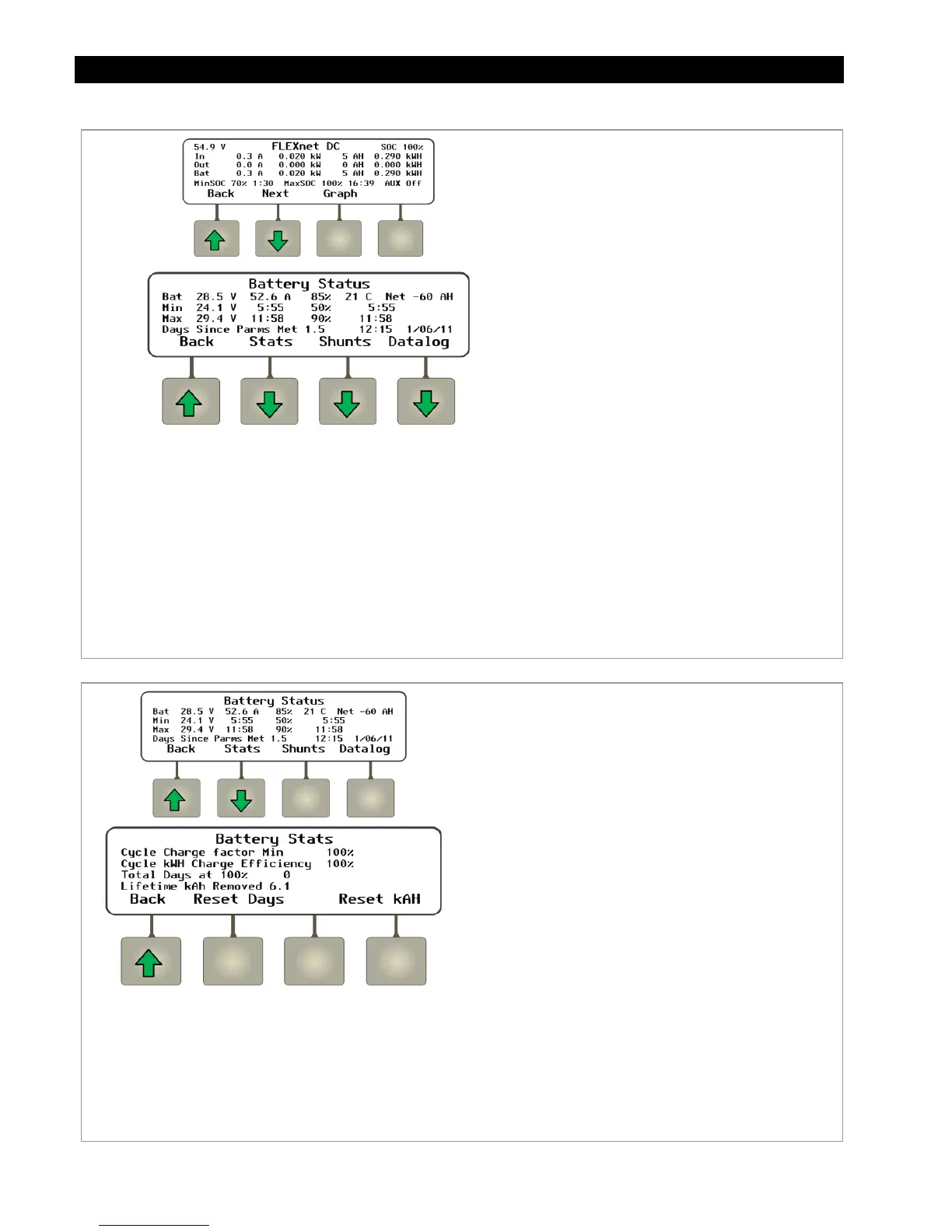

Figure 40 Next Soft Key (with FLEXnet DC)
Figure 41 Stats Soft Key (with FLEXnet DC)
Screen Items:
Bat
displays battery voltage, net current flow
(positive or negative), battery temperature, and net
amp-hour accumulation for that day.
Min
displays the lowest recorded battery voltage
and SOC for that day, and the time each was
recorded.
Max
displays the highest recorded battery voltage
and SOC for that day, and the time each was
recorded.
Days Since Parms met
is the number of days since
the last time the “fully charged” parameters were
met (as defined on page 102).
Soft Keys:
<Back> returns to the previous screen.
<Stats> shows long-term battery statistics.
See Figure 41.
<Shunts> shows the operation of up to
three shunts on the battery monitor.
See Figure 42.
<Datalog> shows the current data log.
See Figure 42.
Screen Items:
Cycle Charge Factor
compares the amp-hours removed
from the battery and those returned to the battery while
charging. It displays the comparison as a percentage. This
number can be compared against the programmed charge
factor (see page 102) to judge battery charging efficiency.
Cycle kWH Charge Efficiency
compares the
kilowatt-hours removed from the battery and those
returned to the battery during all activity (such as float
charging). It displays the comparison as a percentage. This
number can be used to judge overall battery efficiency.
Total Days at 100%
displays the number of days since the
batteries reached 100% SOC. If the batteries are not at
100%, this will read 0.
Total Days at 100%
is computed by
the FLEXnet DC. It is a running total of the amount of time
that the SOC's value is equal to 100%. This number is
retained or continues to accumulate until reset by the user.
Lifetime kAH Removed
accumulates the total amp-hours
that were ever drained from the batteries.
Soft Keys:
<Back> returns to the previous screen.
<Reset Days> resets the
Total Days at 100%.
<Reset kAH > resets the
Lifetime kAH Removed
.
