Operation
900-0117-01-00 Rev B 49
The
<Shunts>
soft key shows the operation of up to three shunts on the battery monitor. If a shunt has
not been enabled (see page
24
102), it will read 0.

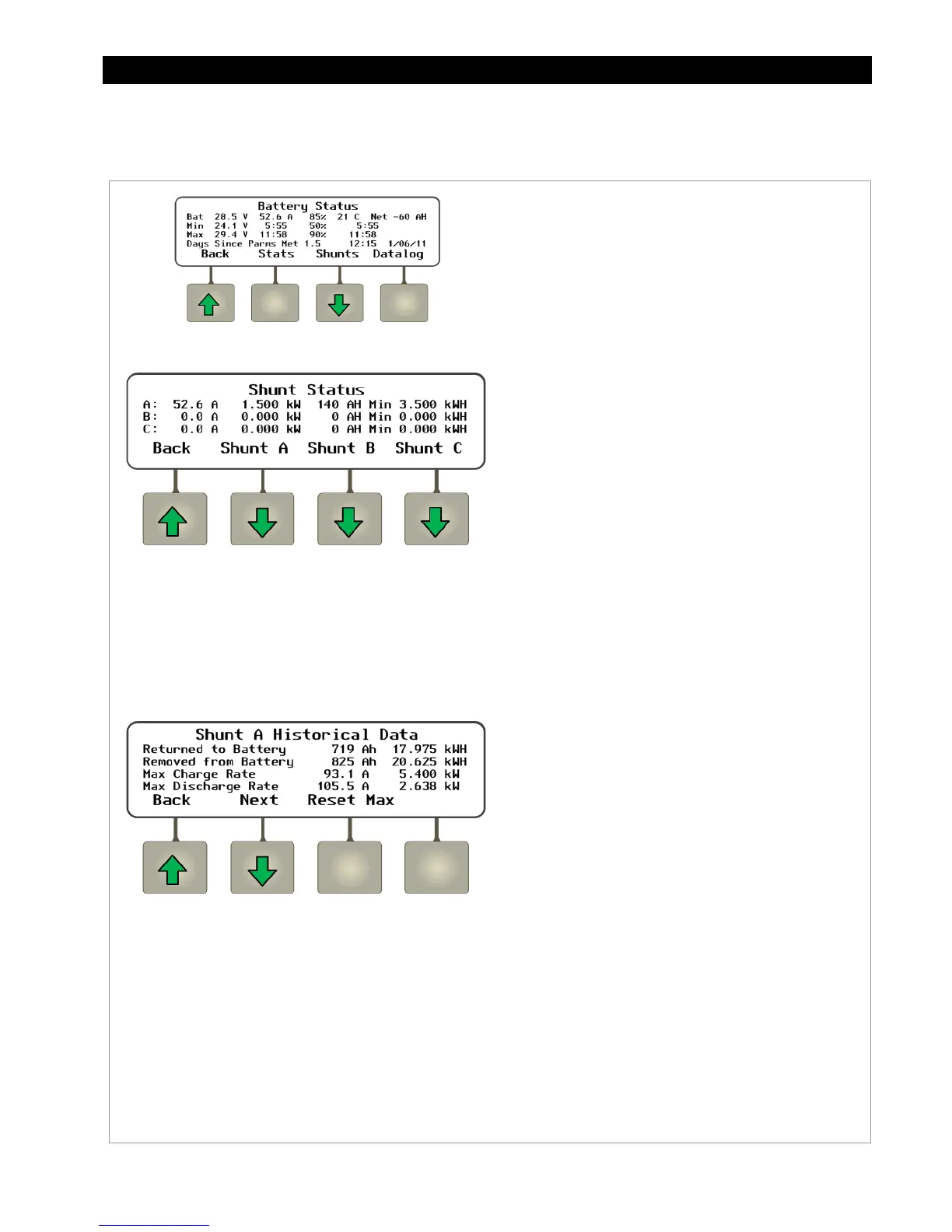

Figure 42 Shunts Soft Key and Shunt Data (with FLEXnet DC)
Screen Items:
A: , B:, and C: These lines display individual
readings from the A, B, and C shunts. Each line
shows the current and kilowatts measured on
the shunt at that time, and the amp-hours and
kilowatt-hours accumulated that day.
Soft Keys:
<Shunt A>, <Shunt B>, and <Shunt C> shows
long-term statistics for each shunt. If a shunt has not
been enabled (see page 106), its statistics will read 0.
<Back> returns to the previous screen.
Screen Items:
Returned to Battery
and
Removed from
Battery
show the total accumulated
amp-hours that have been delivered to the
battery bank (as charging) or removed from
the battery bank (as loads).
Max Charge Rate
and
Max Discharge Rate
show the highest level of current that was
registered either entering (charging) or
leaving (discharging) the batteries. The
<Reset Max> soft key can reset both
numbers at the same time.
Soft Keys:
<Next> presents the next shunt in alphabetical order.
<Back> returns to the previous screen.
<Reset Max> resets both
Max Charge Rate
and
Max Discharge Rate
at the same time.
