From the
CHARGER
hot key’s
Charger Status
screen, the
<Charger Mode>
soft key brings up a screen
that can enable or disable the charger. (See the inverter Operator’s Manual for a description of specific
charger functions.)

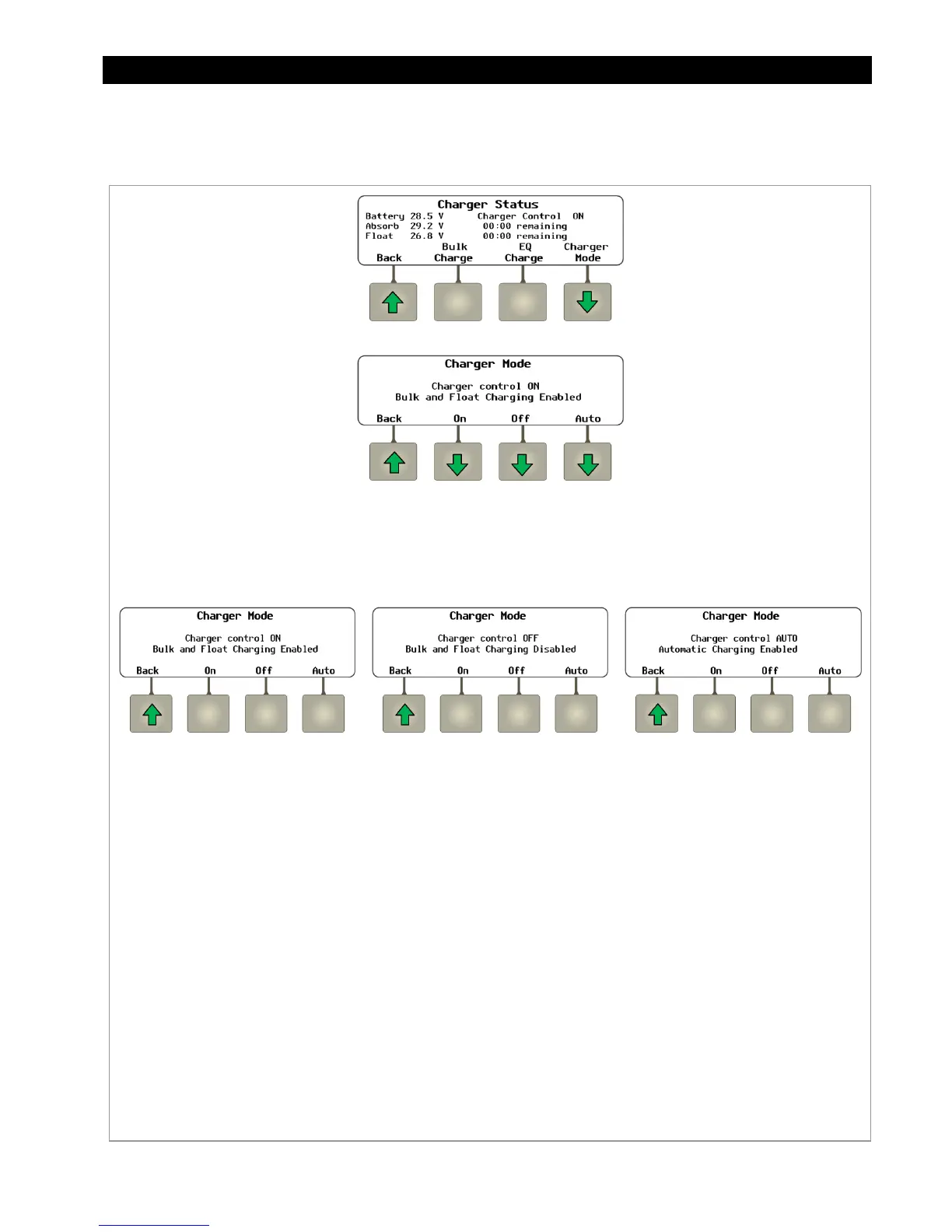

Figure 58 Using the CHARGER Hot Key (Charger Mode)
Soft Key Options:
<On> enables the charger for a charge
cycle consisting of bulk, absorption, and
float stages. Upon completion, the
charger remains in the float stage to
maintain the batteries until the AC input
is disconnected.
NOTE: In OutBack grid-interactive
inverters, this charging cycle is
automatically selected when
the
Input Type menu is set to
Gen (see page 83). The <On>
option cannot be selected if
the menu is set to Grid . In
these inverters, the
Charger
Mode menu can still enable or
disable the charger, but it
cannot select the cycle.
When <Auto> is selected, the
screen will display:
Charger Control AUTO.
Automatic Charging Enabled .
<Auto> enables the charger for a
charge cycle consisting of bulk,
absorption, and float stages. Upon
completion, the charger goes into
Silent mode until it reaches the
“re-float” voltage. Then it will re-enter
the float stage.
NOTE: In OutBack grid-interactive
inverters, this charging cycle
is automatically selected
when the
Input Type menu
is set to
Grid (see page 83).
This option cannot be
selected if the menu is set to
Gen . In these inverters, the
Charger Mode menu can
still enable or disable the
charger, but it cannot select
the cycle.
<Off> disables the charger.
When <On> is selected, the screen
will display:
Charger Control ON.
Bulk and Float Charging Enabled.
When <Off> is selected, the screen
will display:
Charger Control OFF.
All Inverter Charging Disabled.
