3.7.3 Lower chamber configuration for plasma and thermal ALD

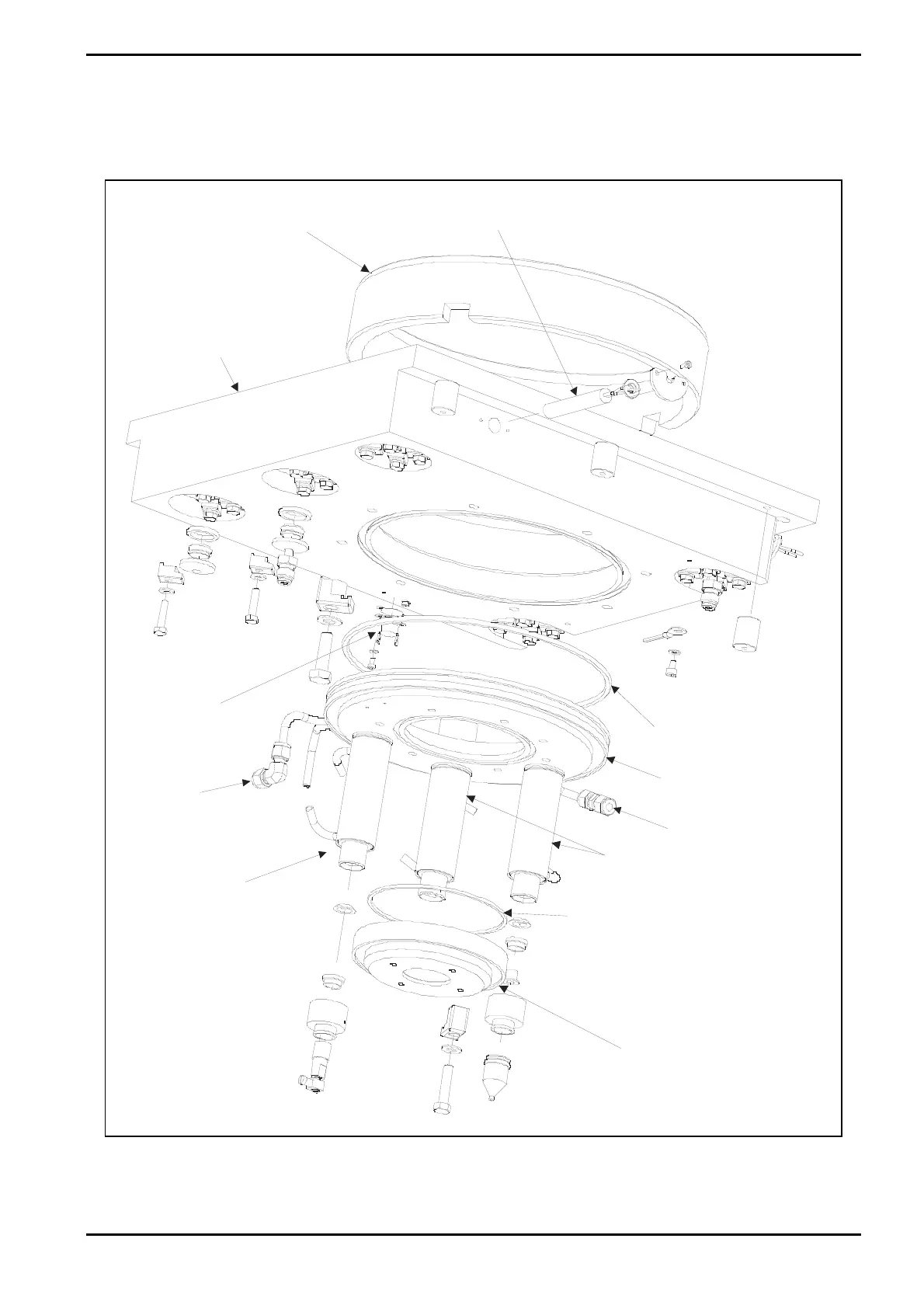

The lower chamber configuration for plasma and thermal ALD is shown in Fig 3-25
(based on drawing MA71A29232).
Lower chamber
liner
Heater
cartridge
Lower process
chamber
O ring
O ring
Adapter flange
(pumping line)
Thermocouple
leg
Heater
legs
Water in
for flange
cooling
Water out
for flange
cooling
Mounting
flange
Thermo
Switch
Fig 3-25: Lower chamber configuration for both thermal and plasma ALD
