3.13.1 Water delivery
A water pot is located inside the top console. A pipe connects the pot outlet to the
process chamber. A pair of ALD fast valves provides delivery and purging of the line.
3.13.2 Precursor Cabinet
A maximum of three ALD precursors can be fitted inside the precursor cabinet. Fig 3-34
shows the arrangement of precursors inside the cabinet. The precursor source pots are
heated using dedicated heater jackets. Two MFCs can be locat
ed inside the precursor
cabinet.

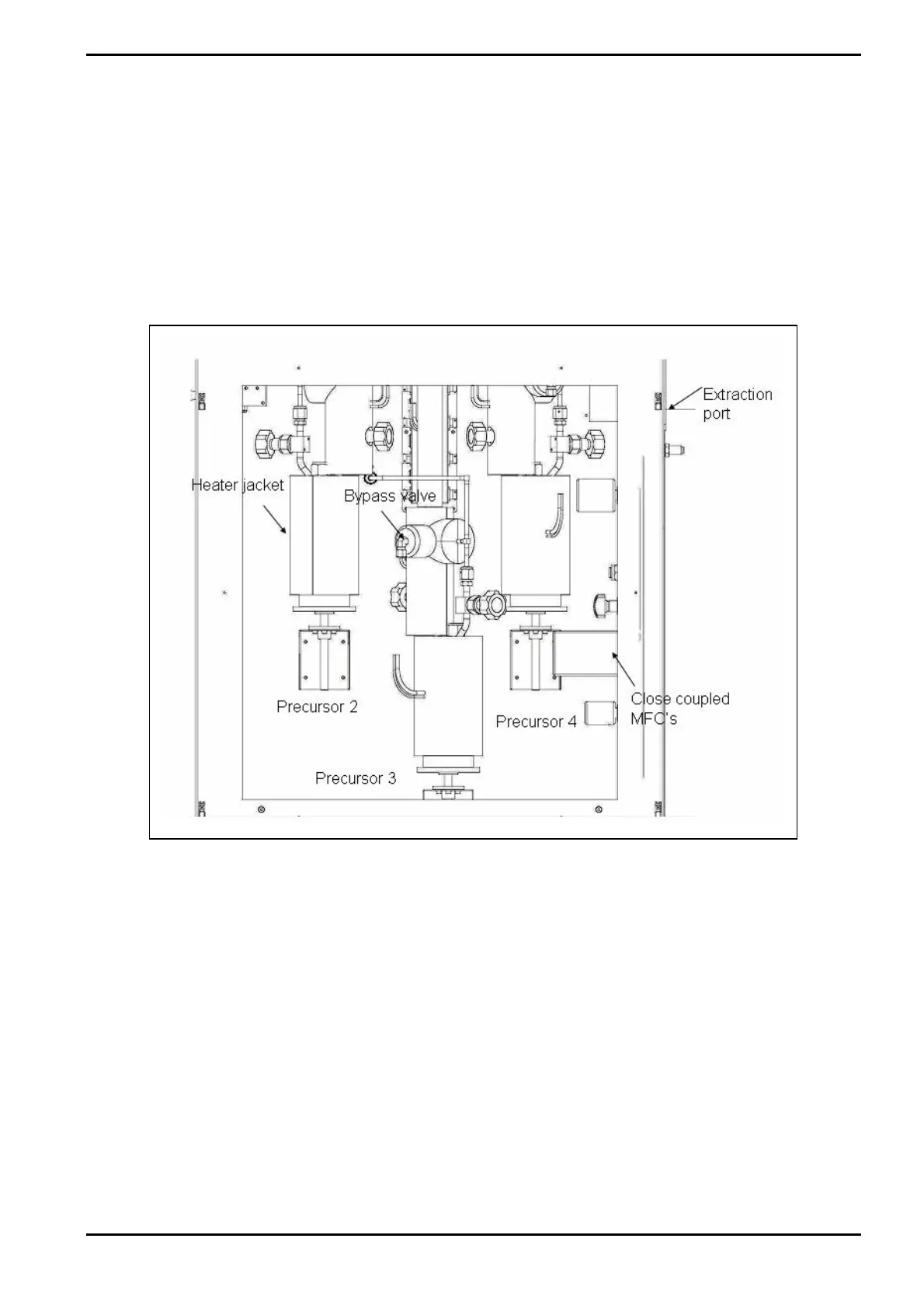

Fig 3-34: Precursor arrangement inside cabinet
