Internal Assemblies — Main Chassis 4: Repair
139
Power Supply Assembly
You need one cable tie for this repair.
Preparation
1 Open the Case. See “Opening the Case” on page 90.
2 Remove the Main Chassis. See “Separating Main Chassis and Rear Case” on page 113.
3 Remove the Main PCA Module from the Main Chassis, See “Disassembling Main Chassis” on
page 115.
4 Remove the I/O Assembly. See “I/O Assembly” on page 132.
Removal

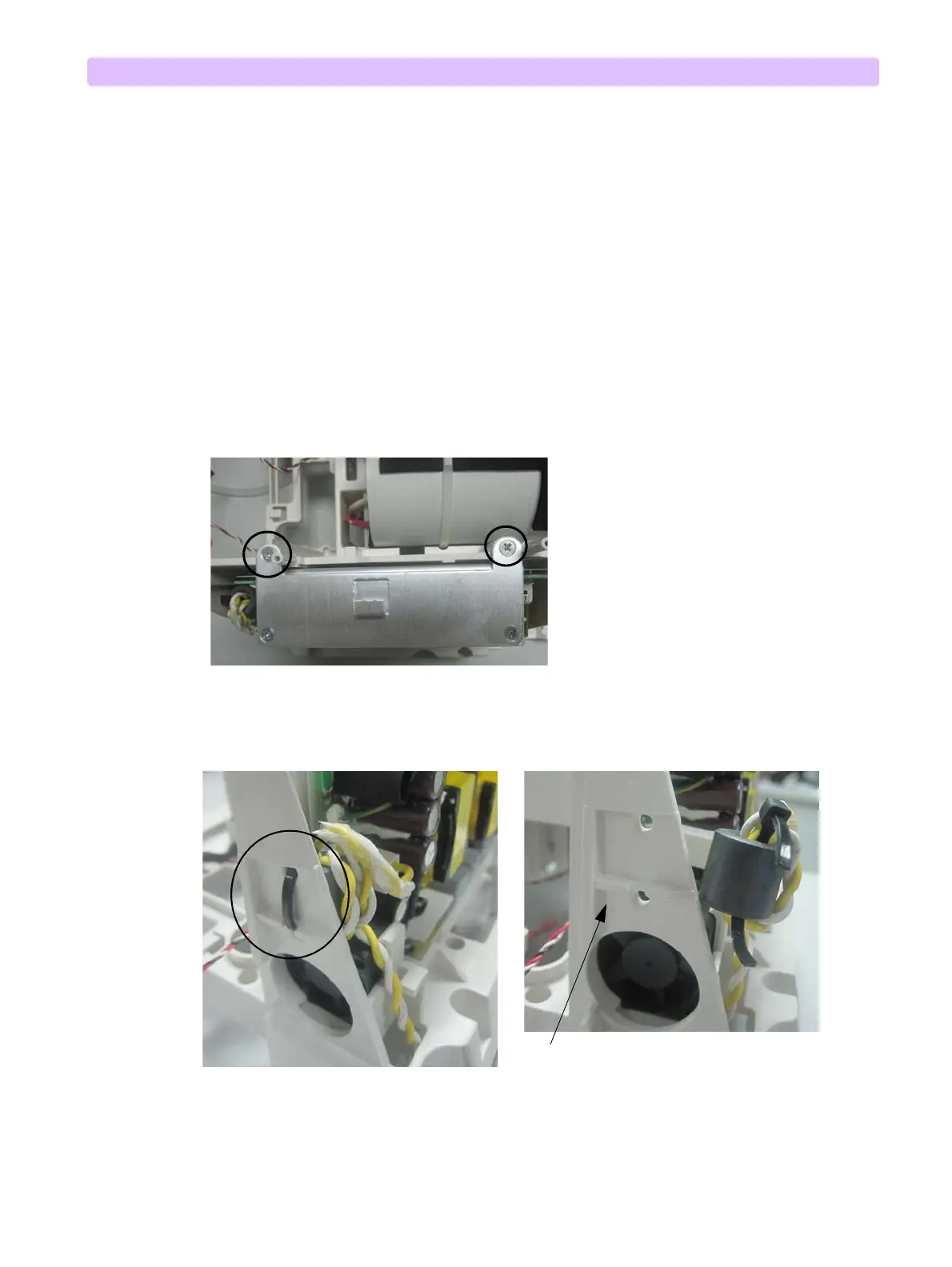

1 Remove the two M 3 x 4 Phillips screws. See Figure 118.
Figure 118 Power Supply-1
2 Remove the cable tie on the left side of the Power Supply Assembly to loosen the magnet ring. See
Figure 119.
Figure 119 Power Supply-2
3 Remove the DC Power Output Cable. See Figure 120.
To Next Page
