Internal Assemblies — Main Chassis 4: Repair
143
Therapy Capacitor
Preparation
1 Open the Case. See “Opening the Case” on page 90.
2 Remove the Main Chassis. See “Separating Main Chassis and Rear Case” on page 113.
3 Remove the Main PCA Module from the Main Chassis, See “Disassembling Main Chassis” on
page 115.
4 Remove the I/O Assembly. See “I/O Assembly” on page 132
Removal

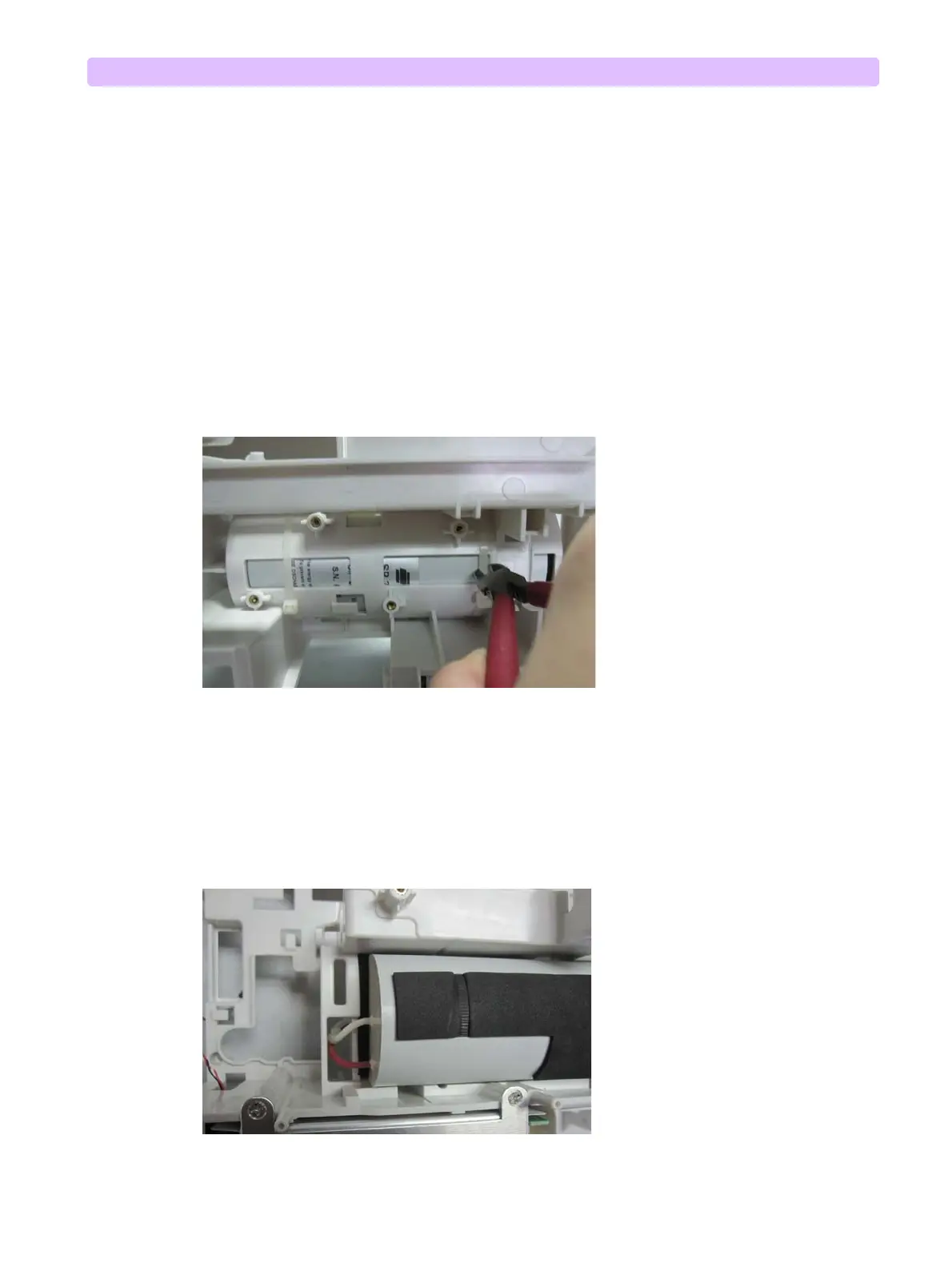

1 Cut the cable tie. Be careful not to cut the surface of the Therapy Capacitor. See Figure 123.
2 Remove the Therapy Capacitor.
Replacement
1 Install the new Capacitor.
a Insert the Capacitor cable into the holes.
b Install the Capacitor cable side first.
c Press the other side of the Capacitor until it installed completely. See Figure 124.
Figure 124 Therapy Capacitor Installation-1
Figure 123 Therapy Capacitor
