Philips Efficia DFM100 - Therapy PCA High Voltage Cable

Internal Assemblies — Main Chassis 4: Repair
145
Therapy PCA High Voltage Cable
 You need following tools for this repair:
• 75% Isopropyl Alcohol
•Hot Melt Glue
• Hot Melt Glue Gun
 Preparation
1 Open the Case. See “Opening the Case” on page 90.
2 Remove the Main Chassis. See “Separating Main Chassis and Rear Case” on page 113.
 Removal
1 Use 75% isopropyl alcohol remove the hot melt glue, see Figure 126.
2 Remove the Therapy PCA High Voltage Cable.
 Replacement
1 Replace the New Therapy PCA High Voltage Cable. Install the red wire above and white wire below.
See Figure 126.
2 Use hot melt glue to fix the Therapy PCA High Voltage Cable. See Figure 126.
3 Place the PCA High Voltage Cable into correct position. See Figure 127.

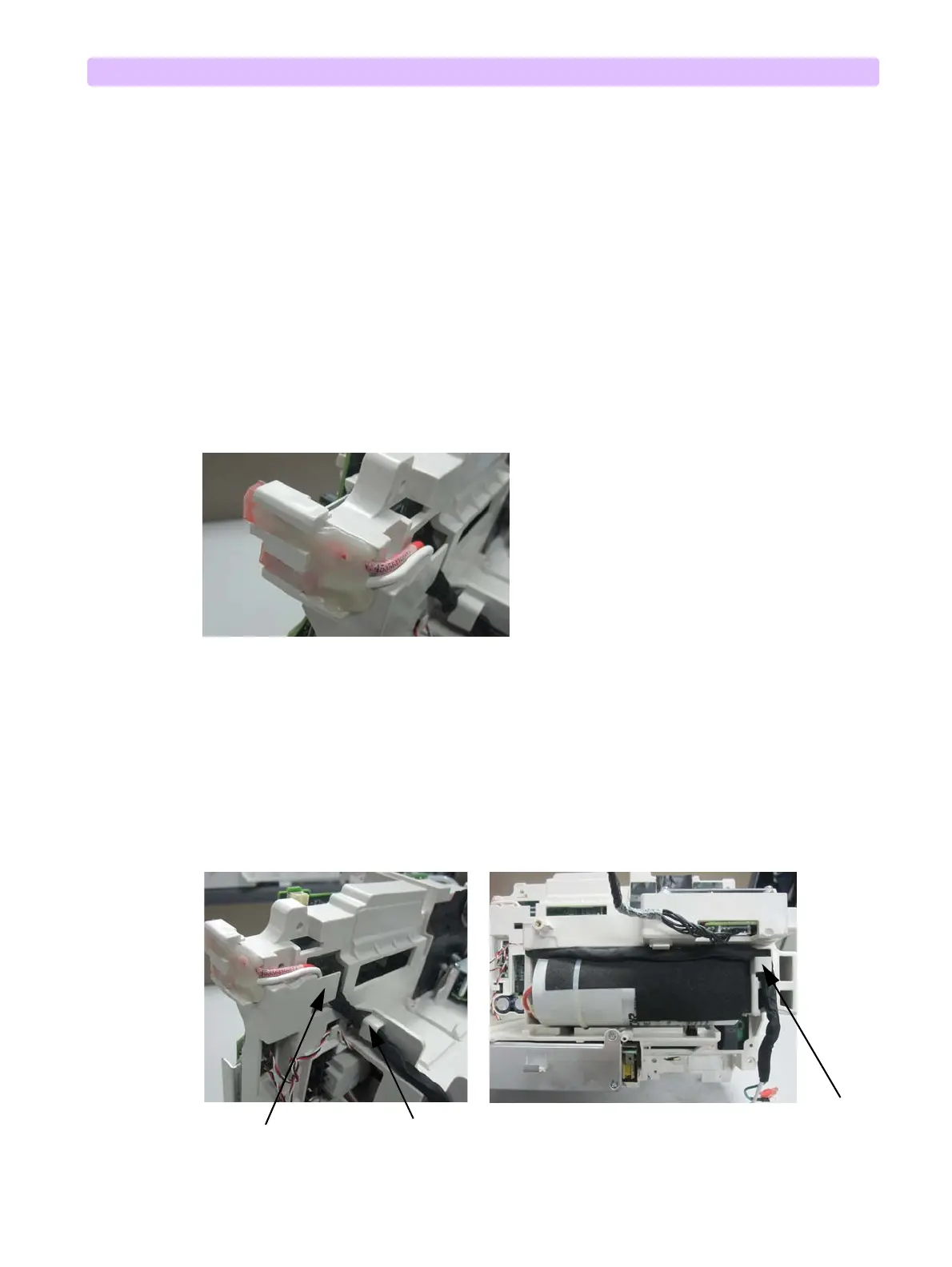

Figure 127 Therapy PCA High Voltage Cable-2
Figure 126 Therapy PCA High Voltage Cable-1
Hook 1 Hook 2
Hook 3
