External Assemblies 4: Repair
81
Bedrail Mount
Preparation
1 Turn the device off and remove the battery and the AC.
Removal
1 Loosen and remove the two M 4x25 screws with washers on A position.
2 Loosen and remove the two M 4x12 screws with washers on B position. See Figure 47.
3 Remove the bedrail mount.
Replacement
1 Secure the bedrail mount to the back of the device.
a Secure the top two M 4x25 screws with washers first (A position).
b Secure the bottom two M 4x12 screws with washers (B position).
c Do not cross-thread or overtighten the screws.
To Complete the Replacement
Visually inspect the device to ensure that you installed the bedrail mount correctly.
It is not necessary to run any Performance Verification or safety testing.

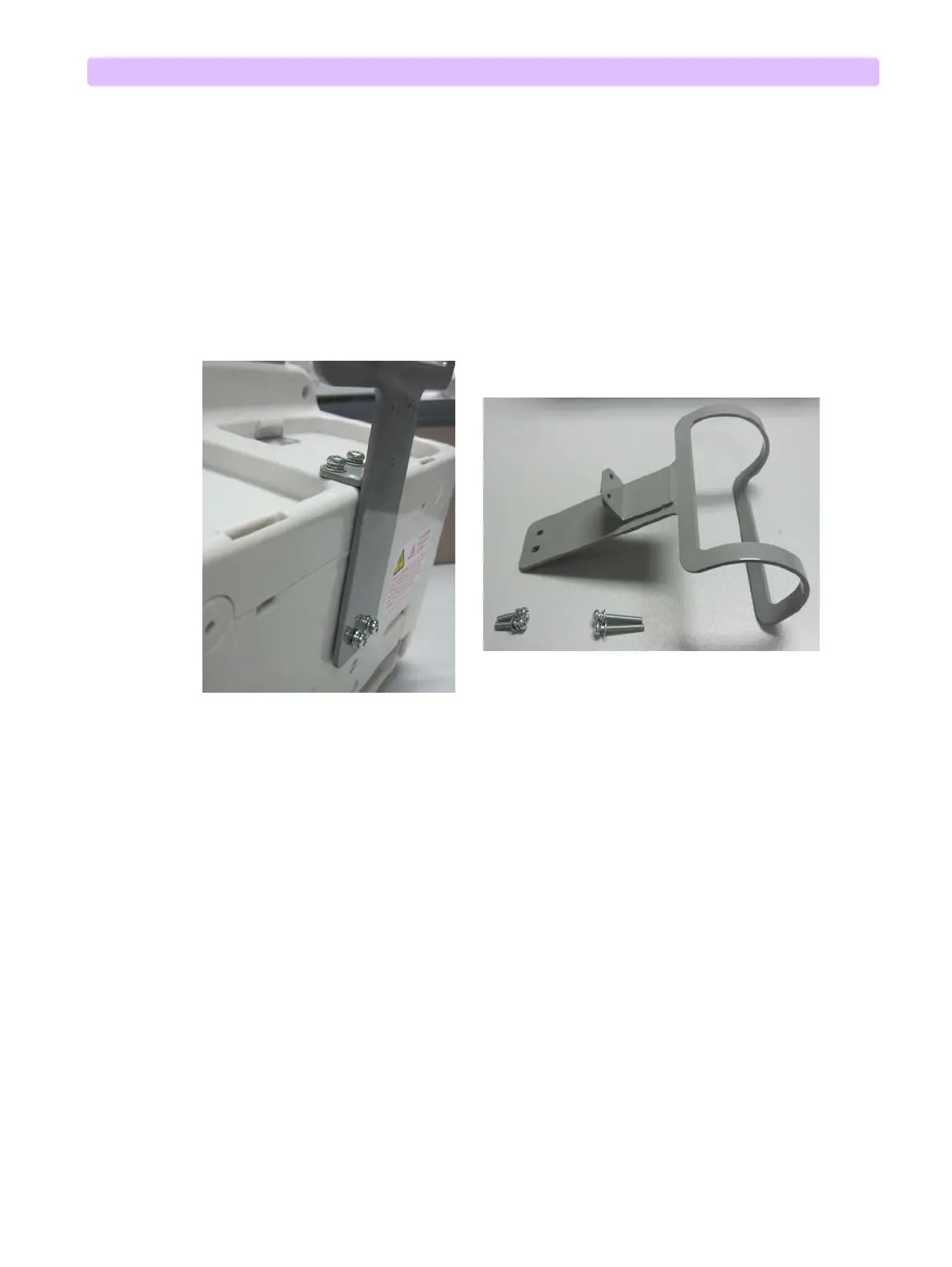

Figure 47 Bedrail Mount
