4: Repair Internal Assemblies — Rear Case
148
Paddle Tray Short Circuiting Cable
Preparation
1 Remove the Paddle Tray and Plates. See “Paddle Tray and Plates” on page 85.
2 Open the Case. See “Opening the Case” on page 90.
3 Remove the Main Chassis. See “Separating Main Chassis and Rear Case” on page 113.
4 Turn the back side of the device facing you.
Removal
1 Use a flat head screw driver to loosen the plastic end cap and remove the Paddle Tray Short
Circuiting Cable. See Figure 129.
Replacement
1 Insert the Paddle Tray Short Circuiting Cable into the hole and install the plastic end cap onto the
Rear Case.
2 Install the Main Chassis. See “Separating Main Chassis and Rear Case” on page 113.
3 Close the case. See “Closing the Case” on page 149.
4 Install the Paddle Tray and Plates. See “Paddle Tray and Plates” on page 85.
To Complete the Replacement
Run Performance Verification and Safety testing as described in the “Performance Verification”.

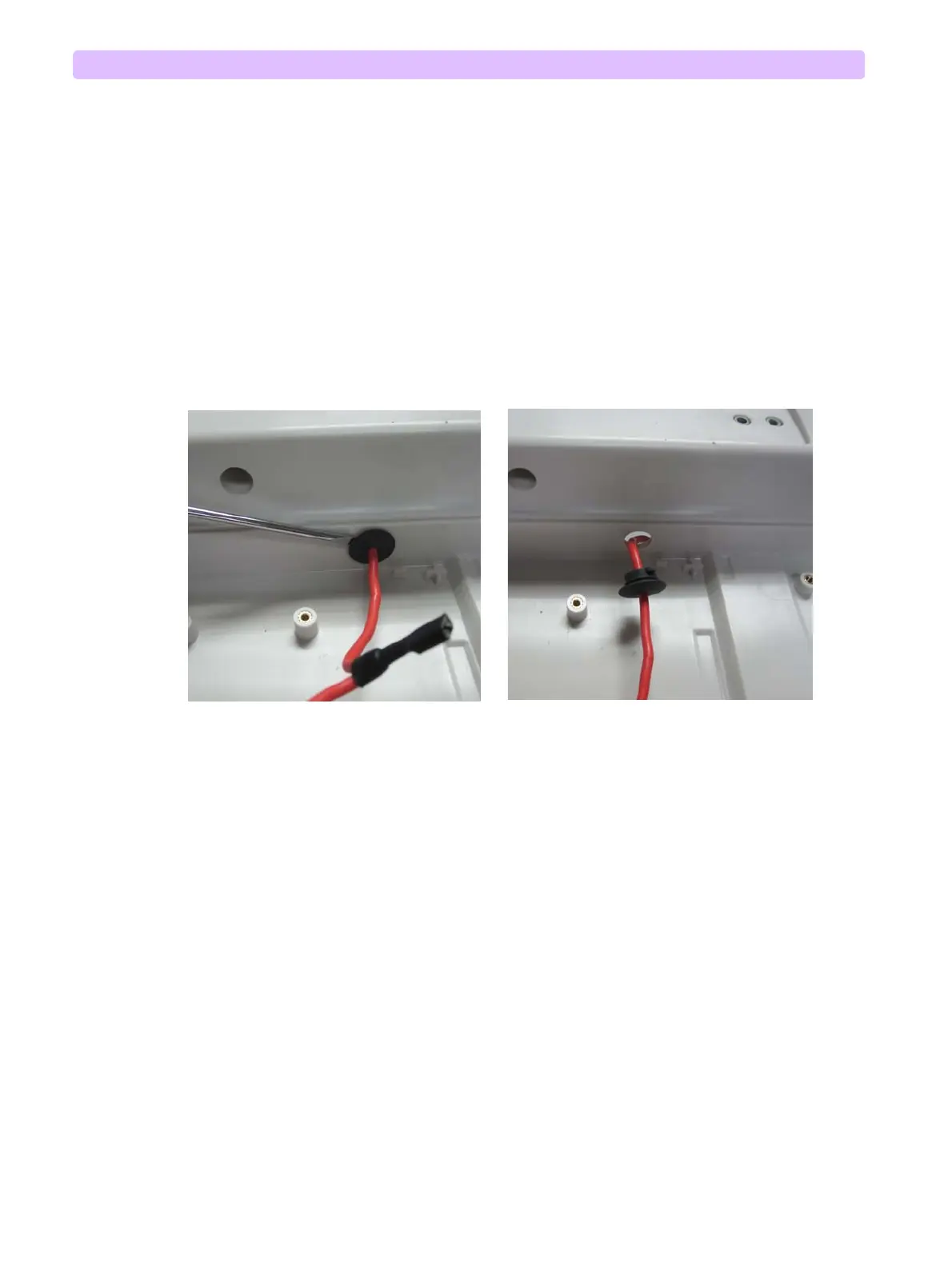

Figure 129 Paddle Tray Short Circuiting Cable
