4: Repair External Assemblies
84
Handle Assembly
Preparation
1 Turn the device off and remove the battery and the AC.
2 M4 Phillips screw driver.
Removal
1 Remove the two plastic handle plugs using tweezers.
2 Loosen and remove the four M 4 x16 screws with washers in the handle. See Figure 49.
3 Remove the handle.
Replacement
1 Install the new handle into handle pockets in the Rear Case.
2 Install the four M 4x16 screws with washers.
Do not cross-thread or overtighten the screws.
To Complete the Replacement
Visually inspect the device to ensure that you installed the handle assembly correctly. It is not
necessary to run any Performance Verification or Safety testing.

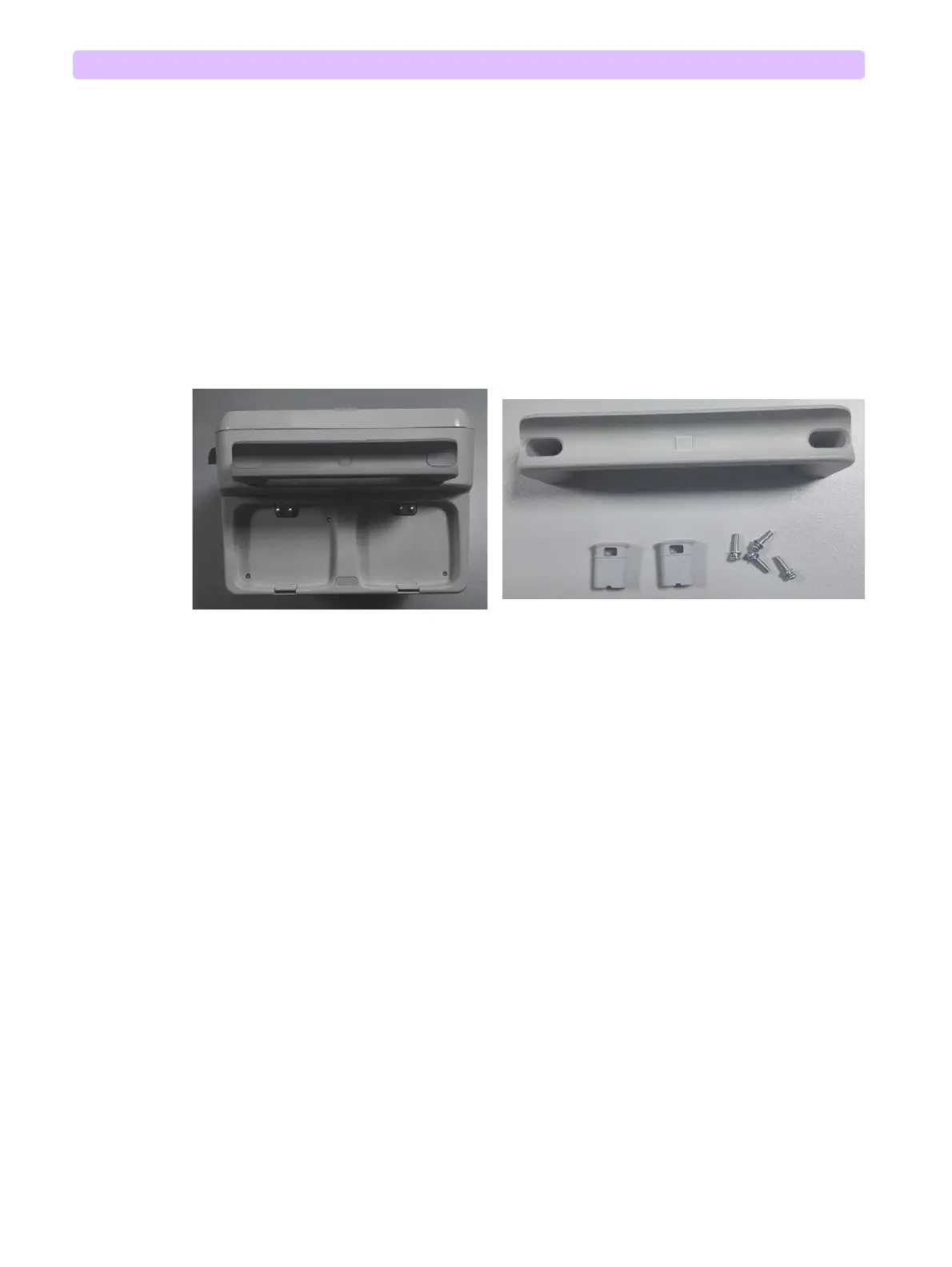

Figure 49 Handle Screws
