External Assemblies 4: Repair
87
Printer
Preparation
1 Tu r n t h e d e v i c e o f f .
2 Disconnect AC power and remove the battery.
Removal
1 Pull up on the printer door latch and open the printer door.
2 Remove the paper roll.
3 Loosen the two captive M 3x10 screws inside, see Figure 53.
4 Remove the printer by pressing the printer lock inside and pulling it straight out of the printer well.
5 Unplug the printer cable. See Figure 54.
6 Remove the Printer out of printer compartment.

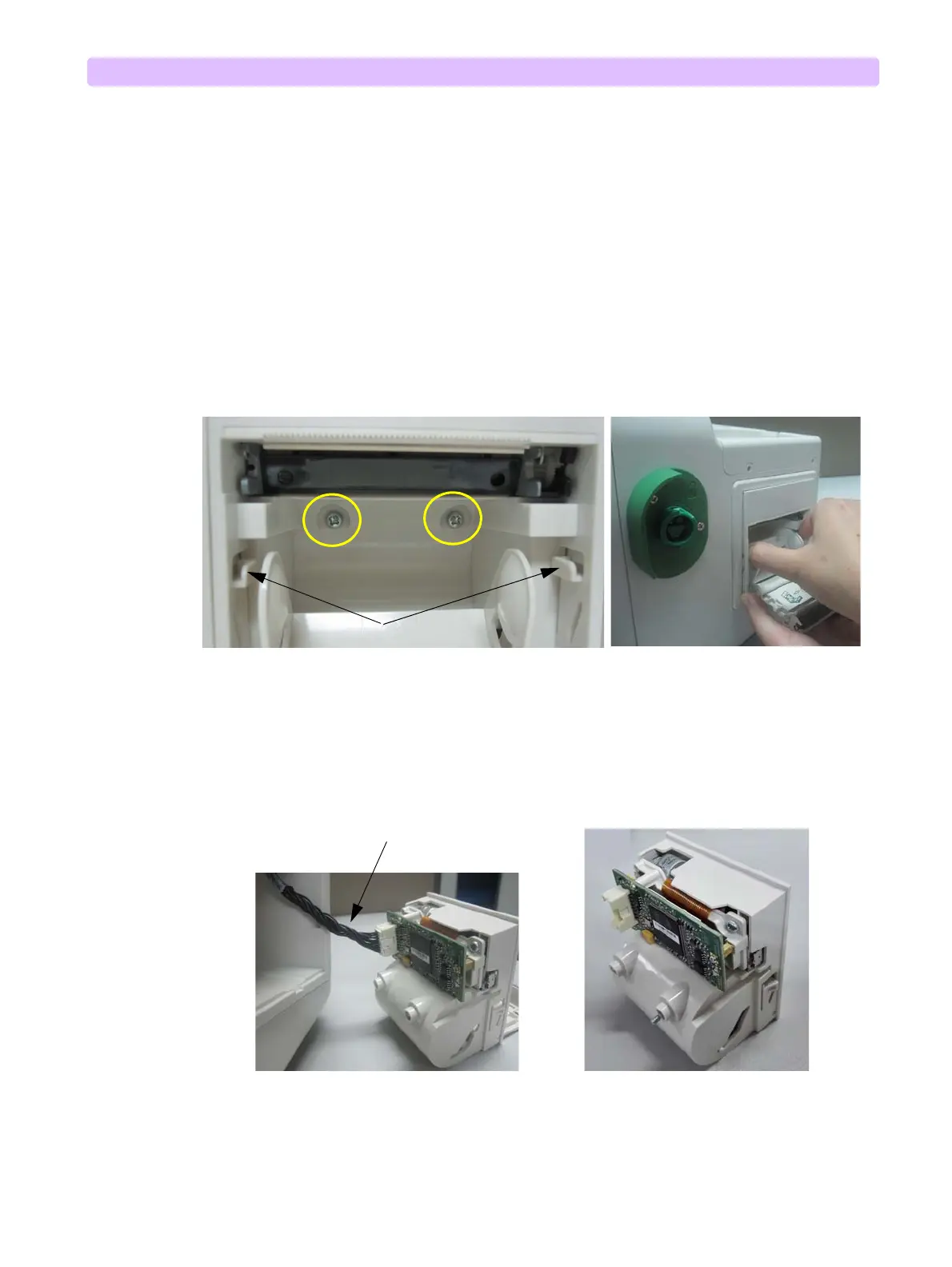

Figure 53 Printer-1
Figure 54 Printer-2
