Philips Efficia DFM100 - NBP Module

Internal Assemblies — Main Chassis 4: Repair
135
NBP Module
 Preparation
1 Open the Case. See “Opening the Case” on page 90.
2 Remove the Main Chassis. See “Separating Main Chassis and Rear Case” on page 113.
3 Remove the Main PCA Module. See “Disassembling Main Chassis” on page 115.
 Removal

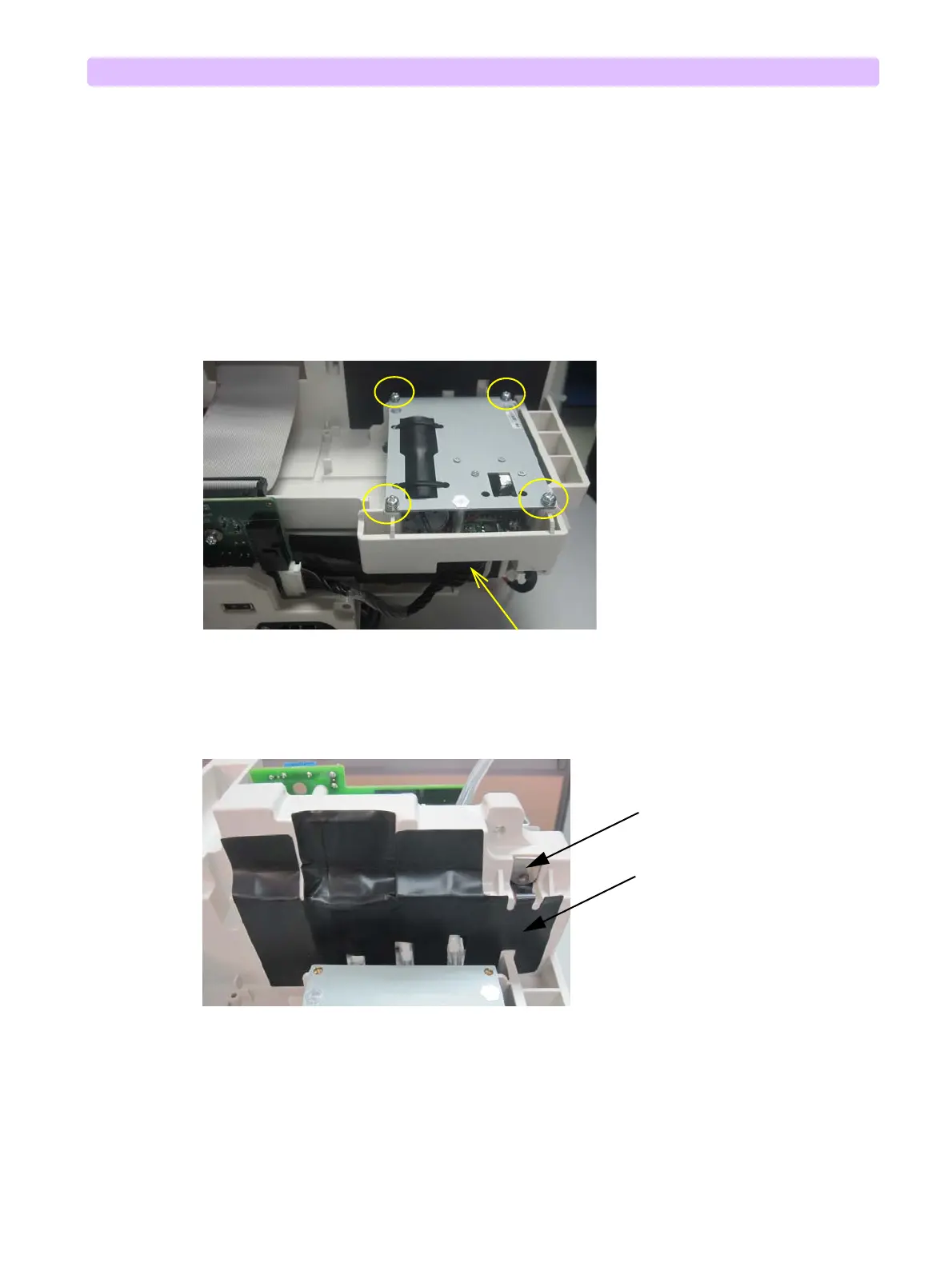

1 Remove the NBP cable and the four M 3x10 screws with washers, see Figure 110.
2 Remove the Shield Cover. Remove and discard the Paddle-in-Pockets Shield, see Figure 111.
Figure 111 NBP Module-2
3 Loosen the NBP tube from the plastic hook and remove the NBP module, see Figure 112.
Figure 110 NBP Module-1
NBP Cable
Shield Cover
Paddle-in-Pockets Shield
