Internal Assemblies — Rear Case Assembly 4: Repair
109
Therapy Port
You need the following tools for this repair:
• Therapy Port Replacement Tool (453564500151)
Removal
1 Open the Case. See “Opening the Case” on page 90.
2 Remove the three M 3x10 screws, see Figure 75.

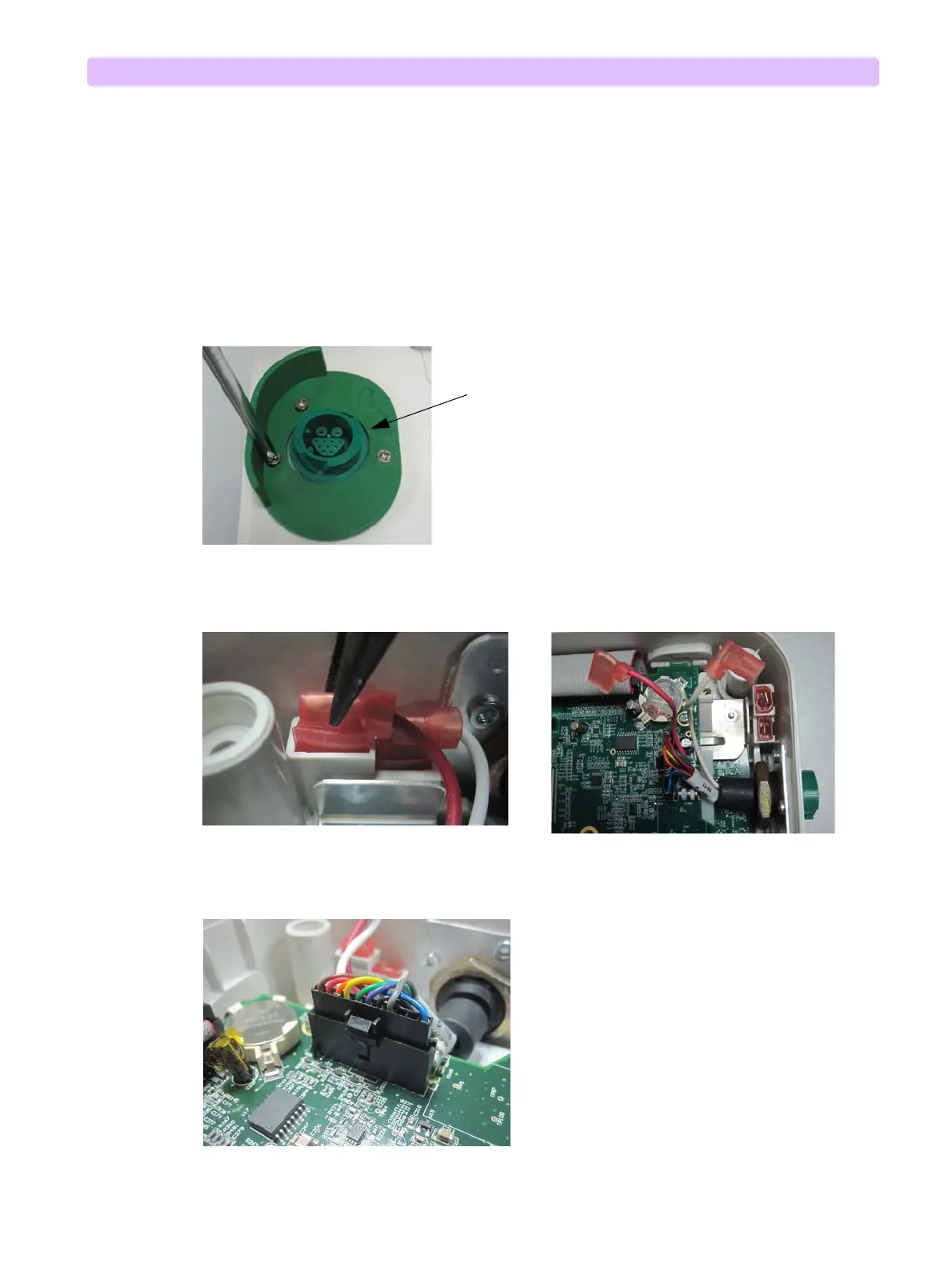

Figure 75 Therapy Port-1
3 Use the straight-tip needle-nose pliers to unplug the two spade connectors, see Figure 76.
Figure 76 Therapy Port-2
4 Unplug the therapy port connector from the Processor PCA, see Figure 77.
Figure 77 Therapy Port-3
