4: Repair Internal Assemblies — Introduction
92
Discharging the Therapy Capacitor
WARNING: Use extreme caution in the following steps. Dangerous voltages may be present on components and
connections. Do not touch any components or connections until you are sure the Therapy Capacitor is
discharged.
 To discharge the Therapy Capacitor:
1 Find two discharge holes on the Processor PCA. See Figure 58, , .
2 Insert the Defibrillator Discharge Tool into the holes till the two tips touch the two metal discharge
studs on the therapy PCA.
3 Hold in place for at least 10 seconds.
4 Once you made a 10-second contact, the Therapy Capacitor is now safely discharged.
Overview of the Internal Assemblies
The Internal Assemblies are organized in the following groups:
• Assemblies mounted directly on the Front Case
• Assemblies mounted on the Main Chassis
• Assemblies mounted directly on the Rear Case

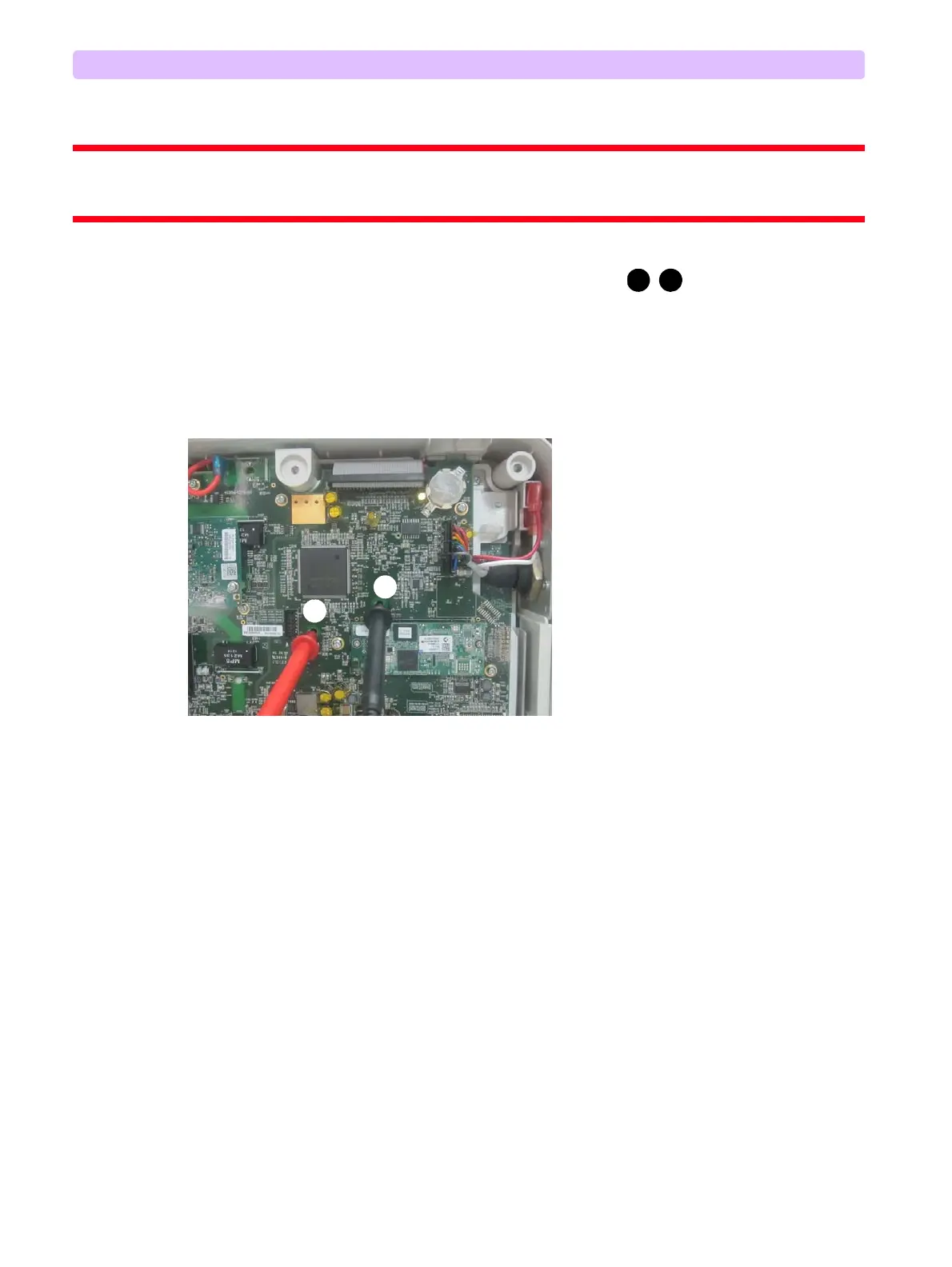

Figure 58 Using the Discharge Tool
1
2
1
2
