Internal Assemblies — Introduction 4: Repair
91
5 Put the device on a padded work surface with the display towards you.
6 Carefully open the Front Case no more than 10 cm.
7 Carefully unplug the UI PCA connection cable and the LCD Display connection cable and hold the
Front Case while removing the cables, see Figure 57.
8 Separate the Front Case.

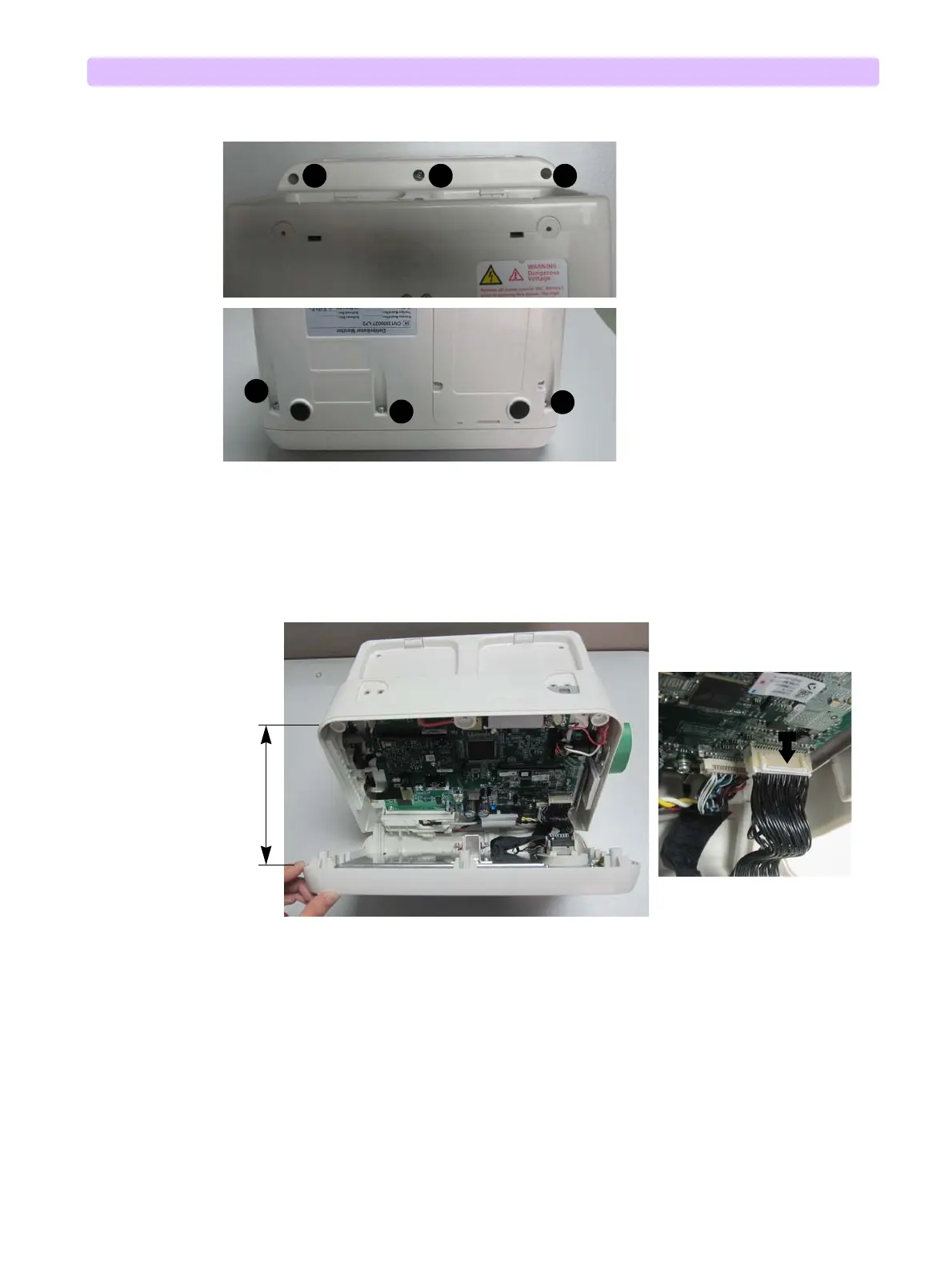

Figure 56 Case Screws
Figure 57 Separating the Front Case Assembly
6
5
4
321
< 4 inches
(10 cm)
