Printer Test
The printer test checks printer parameters, and prints test patterns to check the print head and the paper
drive mechanism.
To start the Printer Test:
1 Select Printer Test from the Service Mode Main menu and press the Smart Select Knob.
The printer prints a series of test patterns.
NOTE: It can take up to 30 seconds for the printout to start on devices that have Asian fonts.
2 Stop the printout.
Once the patterns have printed, press the Print button to stop the printout.
To inspect the test patterns:
1 Check the print quality. Verify that the test patterns on the strip are as indicated in Figure 130.
a Area “A” contains printouts of all characters and symbols. Verify that they are readable.
b Check Area “B” for stray marks or lines.
c Check for white lines (printhead elements stuck off) or black lines (printhead elements stuck
on).
To measure the print speed:
1 Verify the print speed.
Measure between the long tick marks (area “C”) to verify paper speed. The distance should be
25 + 1.25 mm (+ 5%) matching the print speed of 25 mm/sec.
Controls Test
Run these tests when the controls performance becomes a suspect.

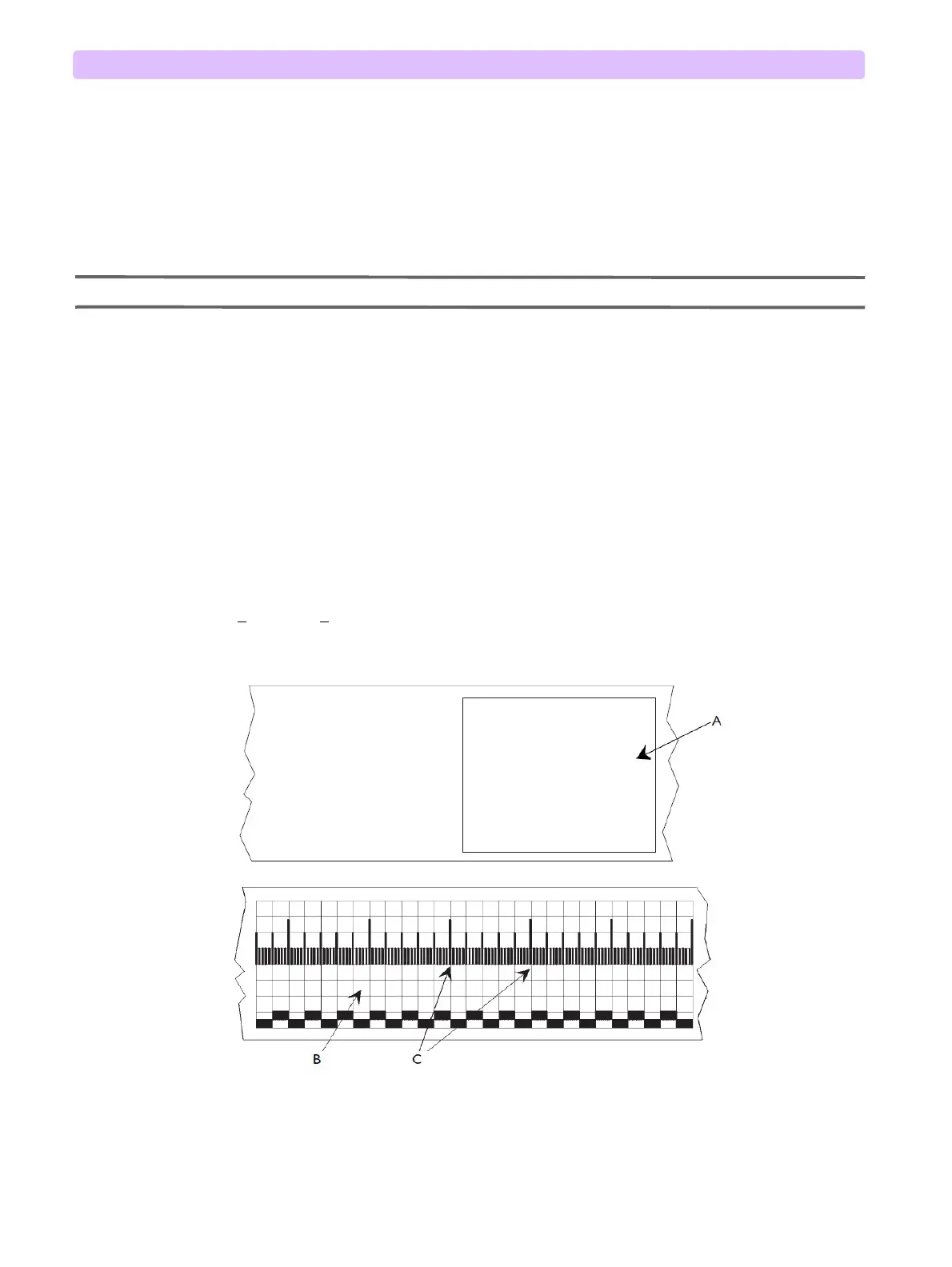

Figure 130 Printer Test Output
