Tour of the Device 1: Introduction
5
Rear Side
The back panel of the Efficia DFM100 has a compartment for the Lithium Ion battery. It also contains
the AC power connection, the ECG Out jack to connect to an external monitor, the USB port, the
equalization terminal, and the LAN port.
WARNING: Do not connect a LAN cable to the Efficia DFM100 while in a clinical mode. Incorrect ECG diagnosis
may result due to excessive electrical background noise.(Refer to IFU)
Top Side
The top of the Efficia DFM100 has a handle for easy transport and, if optional external paddles are
present, they reside in the paddle tray on the top of the device.

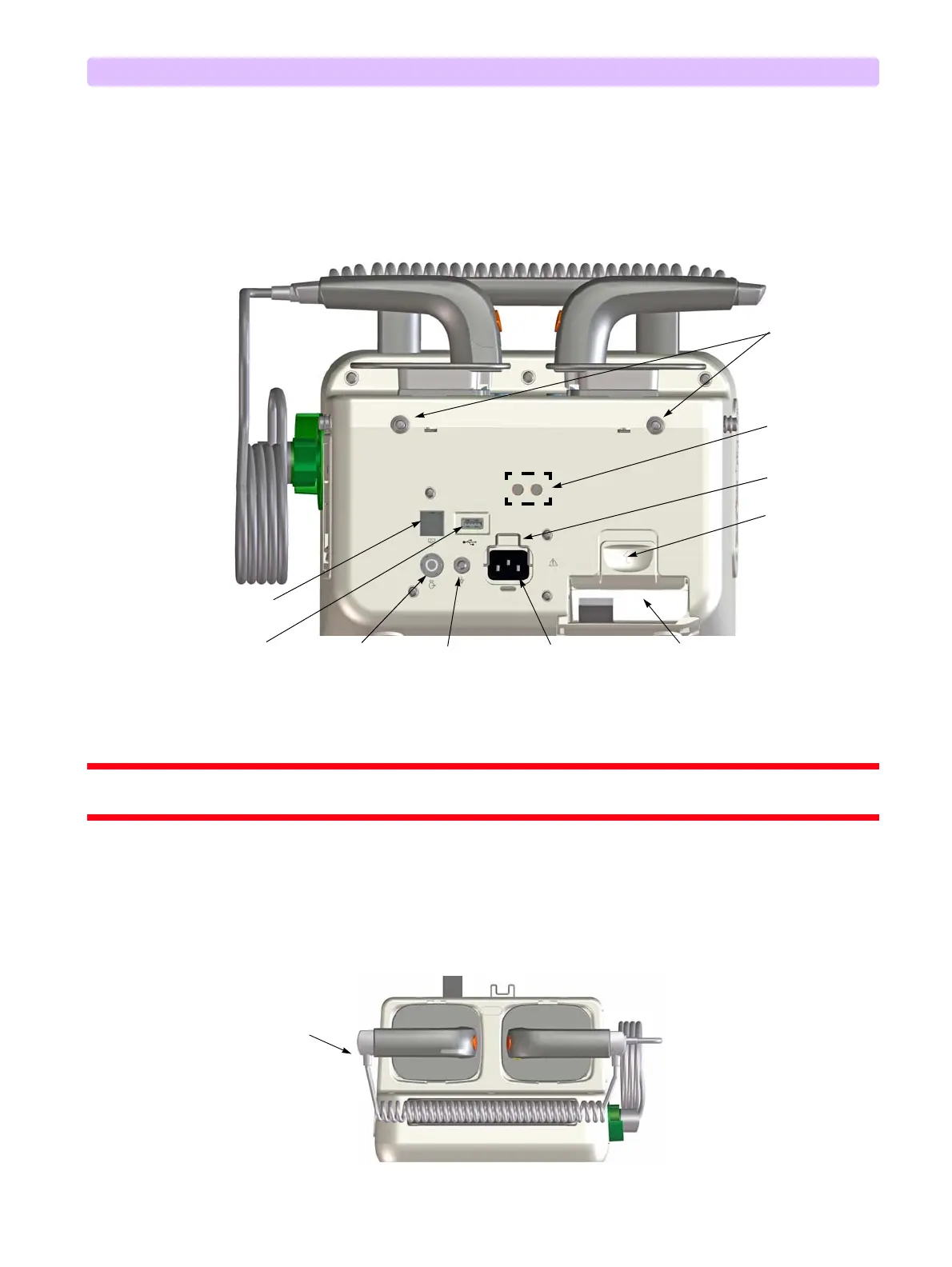

Figure 4 Rear Side View
Bedrail Hook
connection
Cable Strap /
Rear Pouch
connector
LAN Port
Battery
Compartment
AC Connection
USB Port
Equalization
Terminal *
ECG Out Port
Battery
Latch
AC Power
Cord Guard
*- When the Efficia DFM100 is used together with the other devices, their equalization terminals can be
connected together to eliminate any potential electrical differences between the two.
Figure 5 Top Side View
