Philips Efficia DFM100 - Paddle Tray and Plates

External Assemblies 4: Repair
85
Paddle Tray and Plates
 You need an M3 Phillips screwdriver for this repair.
 Preparation
1 Tu r n t h e d e v i c e o f f .
2 Disconnect AC power and remove the battery.
3 Place the device on the work surface with the top side facing you.
 Removal
1 Remove the paddles from the tray.
Disconnect the paddles from the Therapy port. Snap both paddles out of the paddle tray and lay
them aside.
2 Remove the six M 3x10 flat head Phillips screws from the paddle tray. See Figure 50 to .
3 Gently open the paddle tray. Note the springs inside. Use the straight-tip needle-nose pliers to
remove the two spade connectors. See Figure 51.

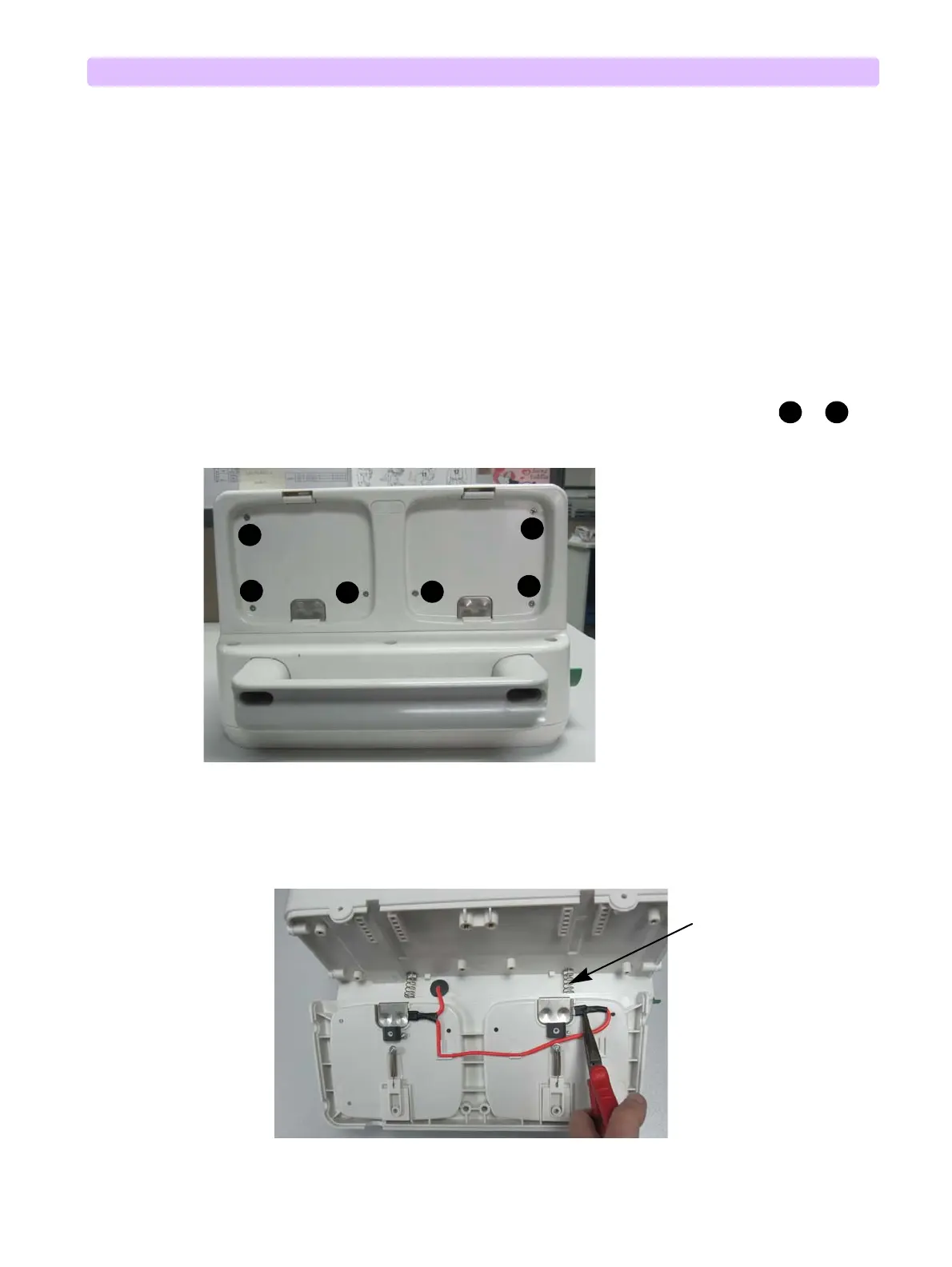

Figure 51 Removing the Paddle Tray-2
Figure 50 Removing the Paddle Tray-1
1
6
1
2
3
4
5
6
Compressing Spring
