4: Repair External Assemblies
86
4 Remove the two silicone pads and remove the two metal plates. See Figure 52.
Replacement
1 If you are replacing the metal plates only, do following steps:
a Position the paddle tray up side down, the longer side of the tray is at horizontal position.
b Place the new metal plates into the left and right pockets and install the two silicone gaskets to
lock the plates in position. Note that the two longer sides of the silicone gasket are at horizontal
position. See Figure 52 A, B or C.
c Connect the spade connector and place the shorting circuit cable into the fixing slots. See
Figure 51.
2 Place the paddle tray back on the device.
3 Replace the six M 3x10 flat head Phillips screws.
When replacing the screws, press the paddle tray against the spring.
4 Make sure two plastic latches can be moved back and forth freely when press them back and forth.
To Complete the Replacement
1 Visually inspect the device to ensure that you installed the Paddle Tray assembly correctly.
2 Perform Performance Verification and Safety testing as described in the “Performance Verification”
chapter.

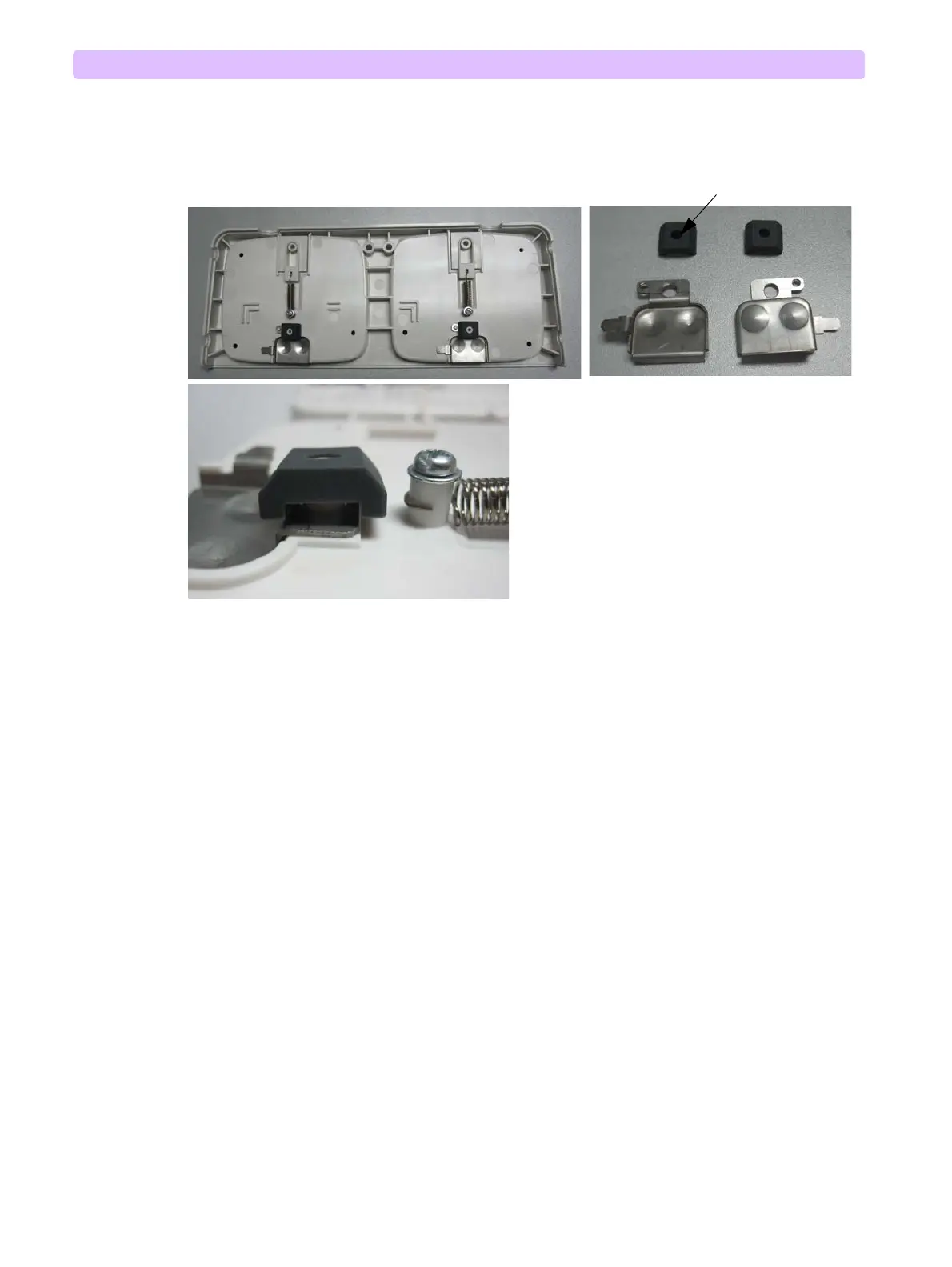

Figure 52 Removing the Plates
