Internal Assemblies — Rear Case 4: Repair
147
Internal Assemblies — Rear Case
This section is organized into the following topics:
 Battery PCA . . . . . . . . . . . . . . . . . . p. 147
 Paddle Tray Short Circuiting Cable . . . . . . . . . . . . . p. 148
Battery PCA
 Removal
1 Open the Case. See “Opening the Case” on page 90.
2 Remove the Main Chassis. See “Separating Main Chassis and Rear Case” on page 113.
3 Remove the Battery PCA. See Figure 128.
 Replacement
1 Replace the Battery PCA.
2 Install the Main Chassis. See “Separating Main Chassis and Rear Case” on page 113.
3 Close the case. See “Closing the Case” on page 149.
 To Complete the Replacement
 Run Performance Verification and Safety testing as described in the “Performance Verification”
chapter.

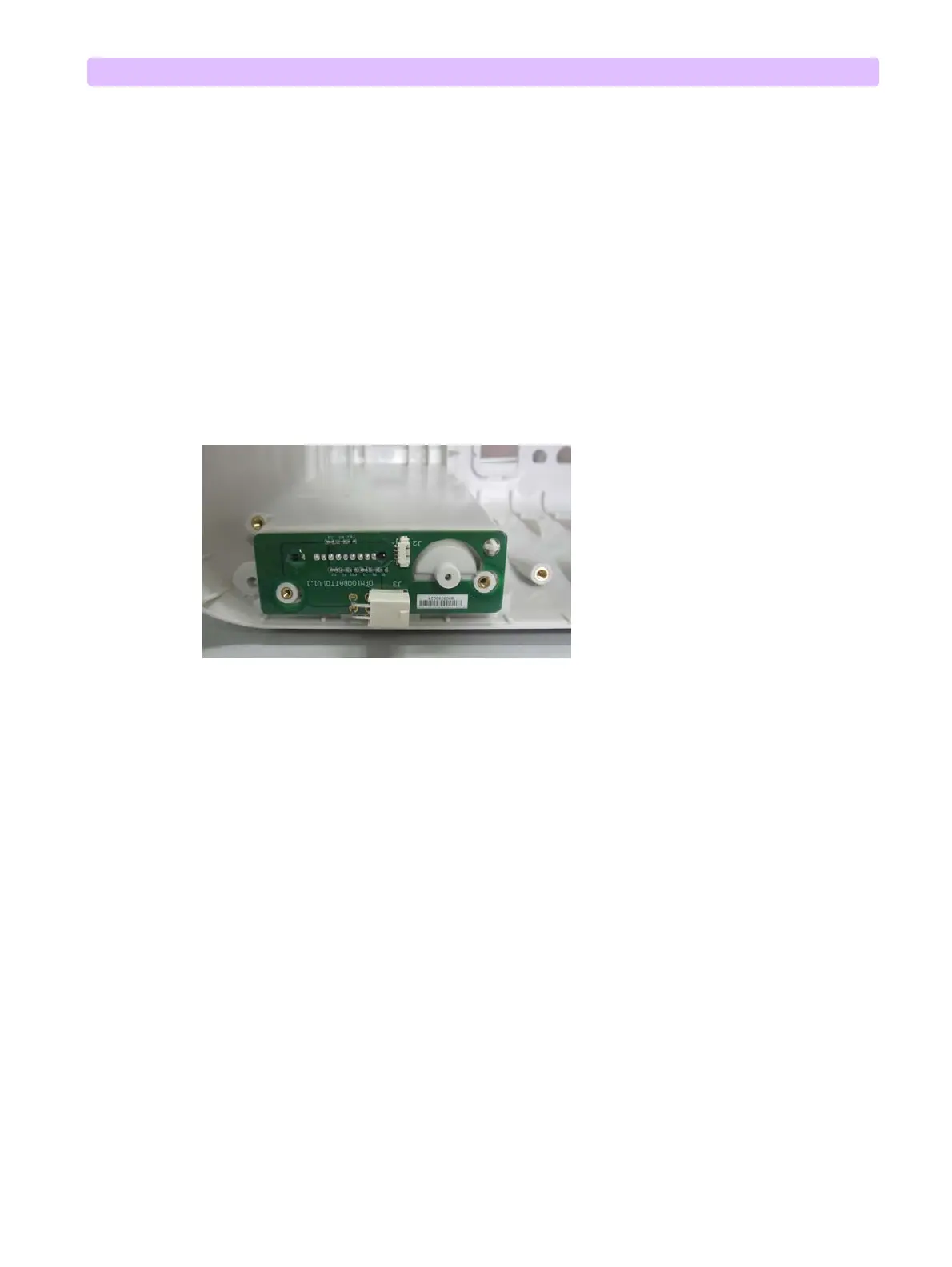

Figure 128 Battery PCA
