Additional Features 1: Introduction
7
To Connect the Therapy Cable and install the Therapy Cable Collar Lid:
1 With the base already installed, plug the Therapy Cable into the green connector port.
2 Slide the feet of the Therapy Cable Collar Lid into the grooves on the Therapy Cable Collar base
and push the top of the Lid into place. See Figure 8.
3 Grab the Locking Key and push in while turning clockwise until the Key locks into place.
4 To remove the collar lid, lift up on the lid latch and turn counter clockwise. After the Key unlocks,
lift the lid out of place. You can also use a flat-head screwdriver to engage and disengage the cover.

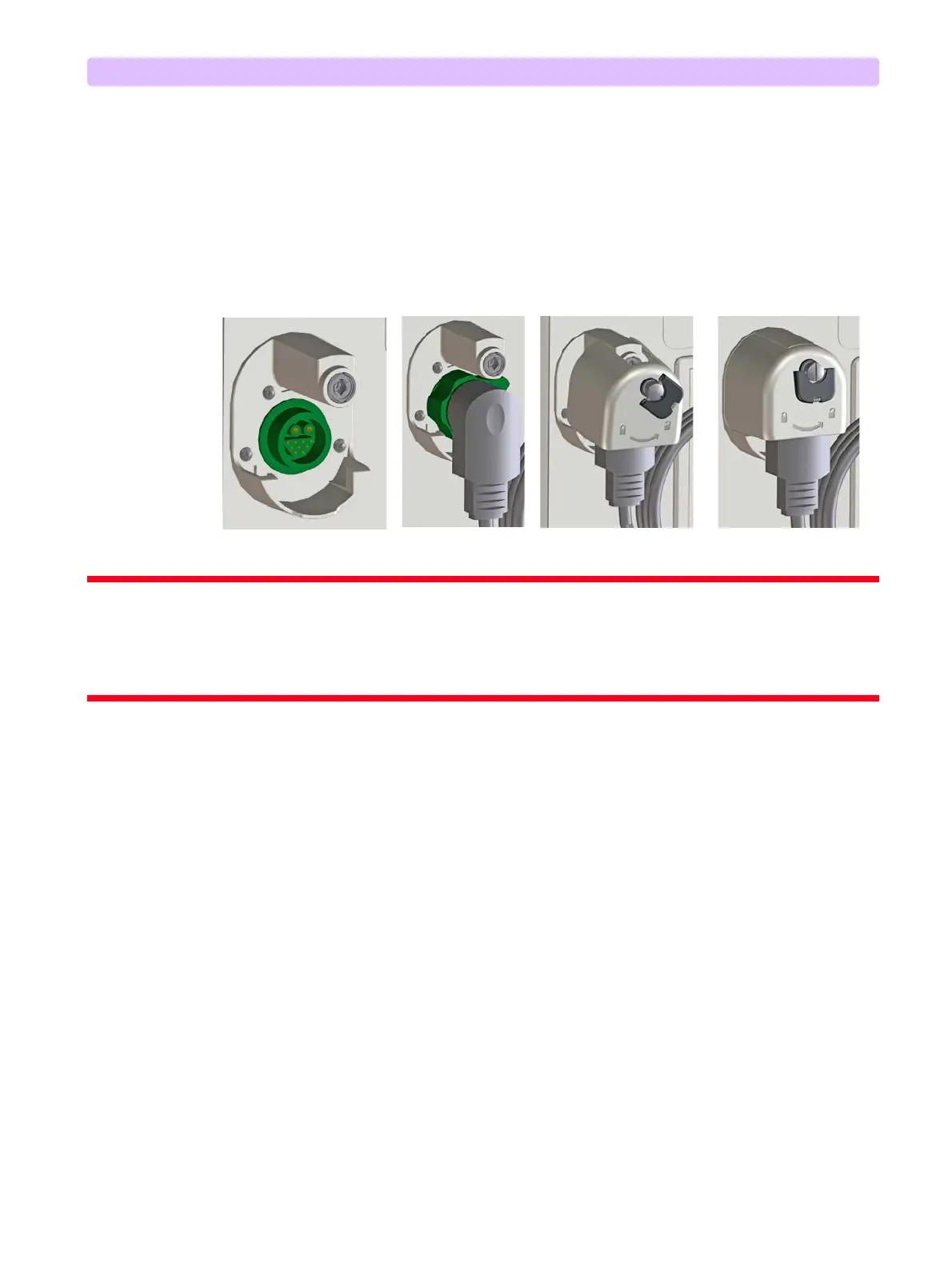

Figure 8 Locking the Therapy Cable Collar Lid into Place
WARNINGS: If you use the Efficia DFM100 in a transport or high-vibration environment without the Thearpy Cable
fully installed, your device is susceptible to premature Therapy port and cable wear and potential failure
which may result in a delay in therapy.
Do not leave the Therapy collar base installed without the lid in place. The exposed metal pole could get
caught on cables or users’ clothing and potentially cause injury.
Cable Straps
To aid with cable management, straps can be snapped on to the side of the Efficia DFM100 in the
predefined snap locations or they can be attached to the side carry bags.
Cradle and Side Carry Bags
To install the Efficia DFM100 cradle and side carry bags, all you need is a Phillips-head screwdriver.
To install the cradle and side carry bags:
1 Open the cradle and set the Efficia DFM100 down snugly inside.
2 Taking one cradle edge at a time, lift the edge into place.
3 Use Phillips-head screwdriver, screw two of the snaps provided into the predefined holes on the
cradle and into holes on the device. See Figure 9.
4 Use the other four snaps and repeat on the other side and back of the Efficia DFM100.
5 Stretch the long gray cradle strap across the top of the device and thread through the small metal
loop. Pull snug and secure in place with the hook and loop fasteners.
6 Take the carry bag with the plastic paper guide inside and align it with the printer on the side of the
device. Sanp the bag into place, starting with the bottom first and then the top. Press the hook and
loop fasteners together. Tug lightly to confirm a solid connection.
Base already Installed Install Therapy Cable
Install Collar Lid
Lock Collar Lid
