4: Repair Internal Assemblies — Main Chassis
136

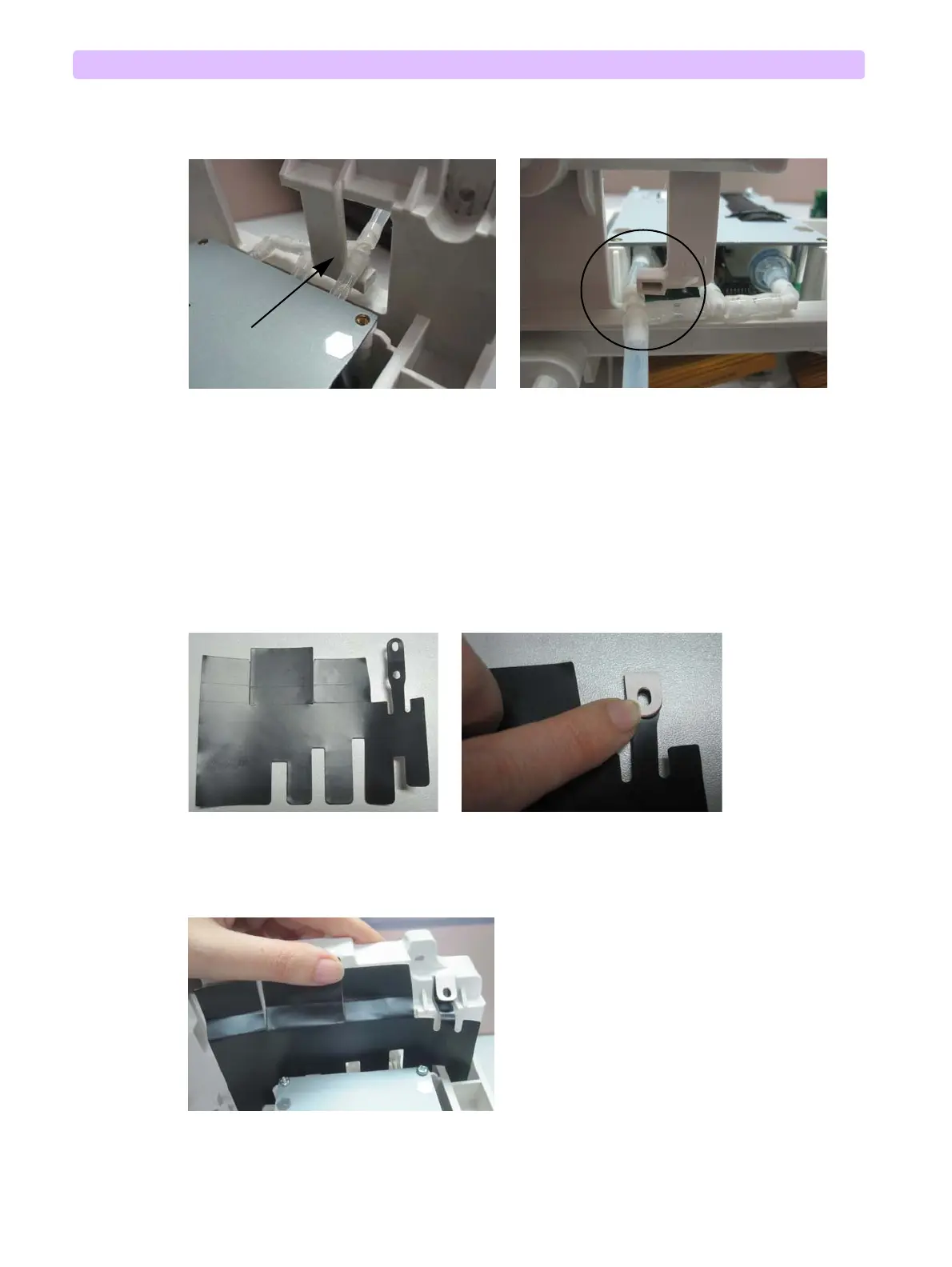

Figure 112 NBP Module-3
Replacement
1 Use alcohol remove the adhesive pad remained on plastic chassis.
2 Install the new NBP module and place the tube onto the plastic hook. See Figure 112.
3 Tighten the four M 3x10 screws with washers and connect the NBP cable to NBP module. See
Figure 110.
4 Take a new Paddle-in-Pockets Shield, and fold the right corner of the shield and make the two screws
holes overlapped. See Figure 113.
Figure 113 NBP Module Install-1
5 Before you remove the cover paper, place the Paddle-in-Pockets Shield into the correct place and
adjust the shield according to the shape of the plastic chassis. See Figure 114.
Figure 114 NBP Module Install-2
