Internal Assemblies — Main Chassis 4: Repair
137

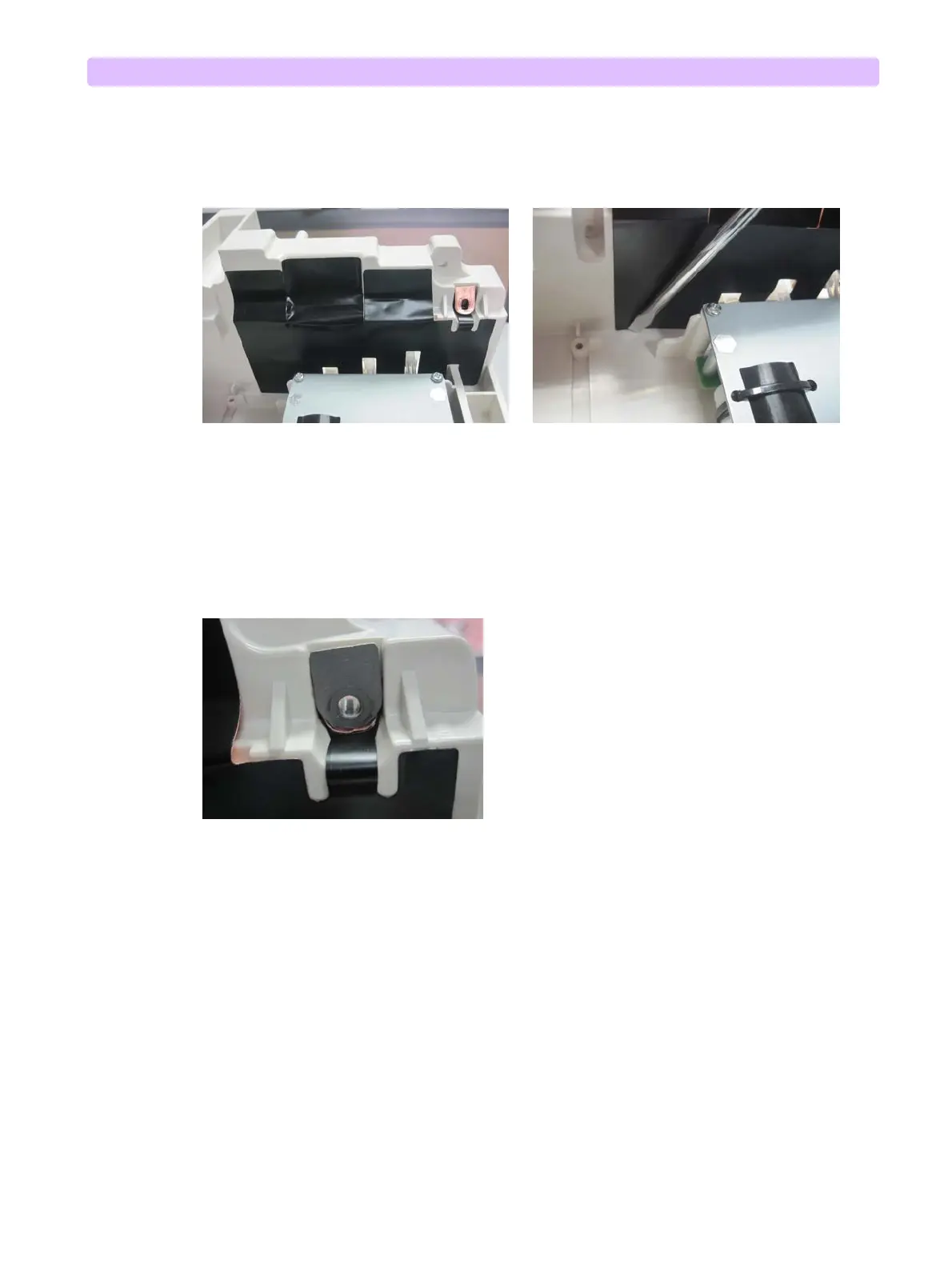

6 Remove the cover paper on the other side of the Paddle-in-Pockets Shield, hold the edge of the shield
and use a flat head screw driver to help you adhere the Paddle-in-Pockets Shield. See Figure 115.
Figure 115 NBP Module Install-3
a The top edge of the Paddle-in-Pockets Shield should not exceed the edge of the plastic chassis.
b The bottom edge of the Paddle-in-Pockets Shield should reach the bending area of the plastic
chassis.
c The overlapped screw holes should be consistent with the screw hole on the plastic chassis.
7 Install the Shield Cover and make sure the screw hole is consistent with the screw holes on the shield
and the plastic chassis. See Figure 116.
Figure 116 NBP Module Install-4
8 Install the Main PCA Module. See “Assembling the Main Chassis” on page 118.
9 Install the Main Chassis. See “Separating Main Chassis and Rear Case” on page 113.
10 Close the Case. See “Closing the Case” on page 149.
To Complete the Replacement
Run Performance Verification and Safety testing as described in the “Performance Verification”
chapter.
