3 Pull out and remove the compartment cover. See Figure 45.

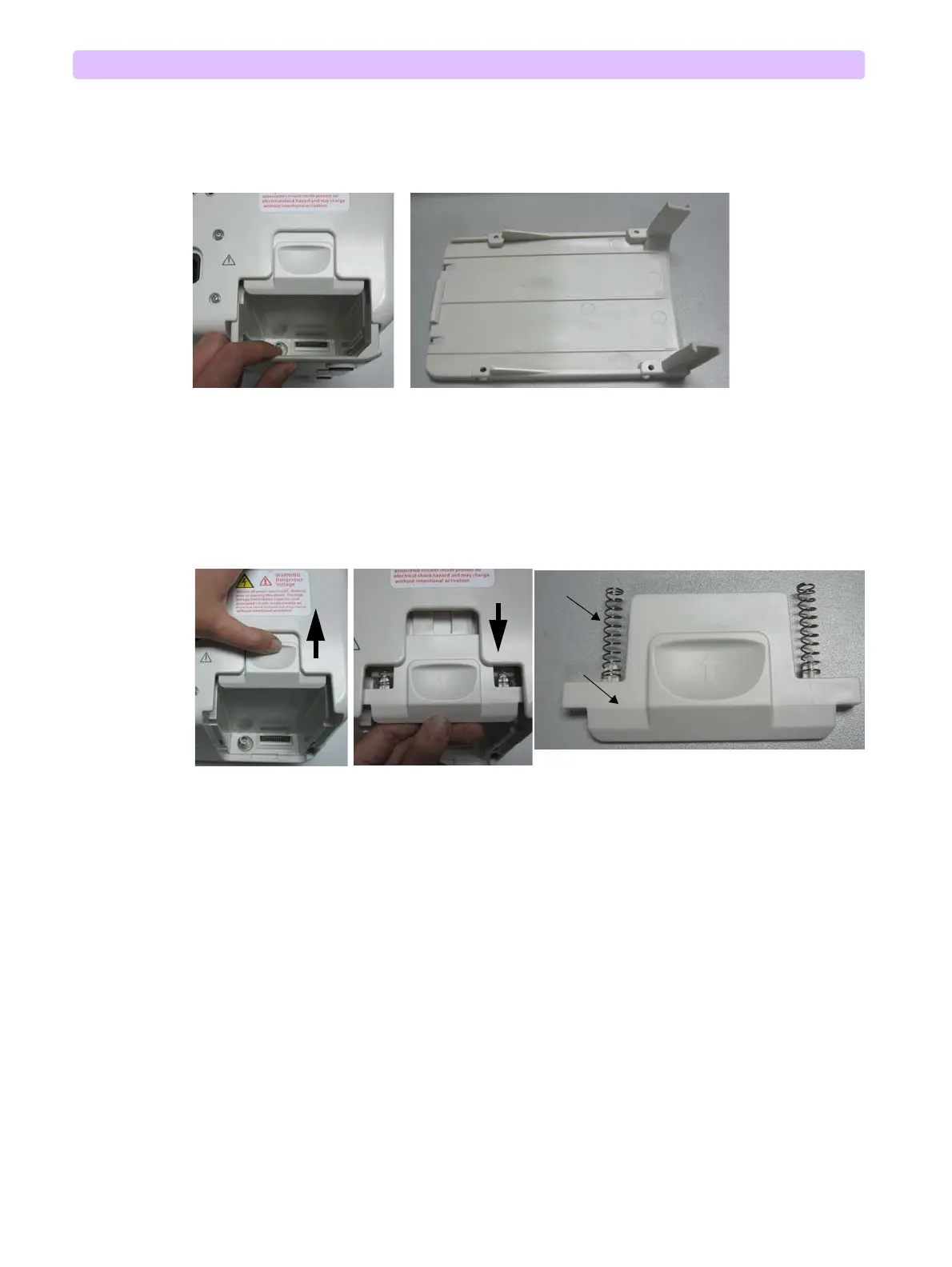

Figure 45 Battery Compartment Cover-2
 Removal Battery Latch
1 Press the latch in the direction of the arrow. See Figure 46A.
2 Quickly release the latch. The latch will be ejected. See Figure 46B.
3 Pull out the latch in the direction of the arrow. See Figure 46B.
Figure 46 Battery Latch
 Replacement
1 Install the new latch and the springs. Press the new latch until you hear a click.
Do not reuse old parts. Position the latch as shown in Figure 46C.
2 Replace the compartment cover.
3 Install the four 3.3 x 8 self-tapping screws.
Do not cross-thread or overtighten the screws.
 To Complete the Replacement
1 Visually inspect the device to ensure that you installed the latch and cover correctly.
2 Insert and remove a battery to verify the latch performance.
It is not necessary to run any Performance Verification and Safety testing.
Spring
Battery
Latch
A
B
C
