1: Introduction Docking Station Installation
10
To Install the DFM100 Device
1 Secure the bedrail mount to the back of the device.
a Secure the top two M 4x25 screws with washers first (A position).
b Secure the bottom two M 4x12 screws with washers (B position).
c Do not cross-thread or overtighten the screws.
2 Install the cradle and side carry bags. Accessories can be installed before or after DFM100 with
pouch system placed onto the docking system.

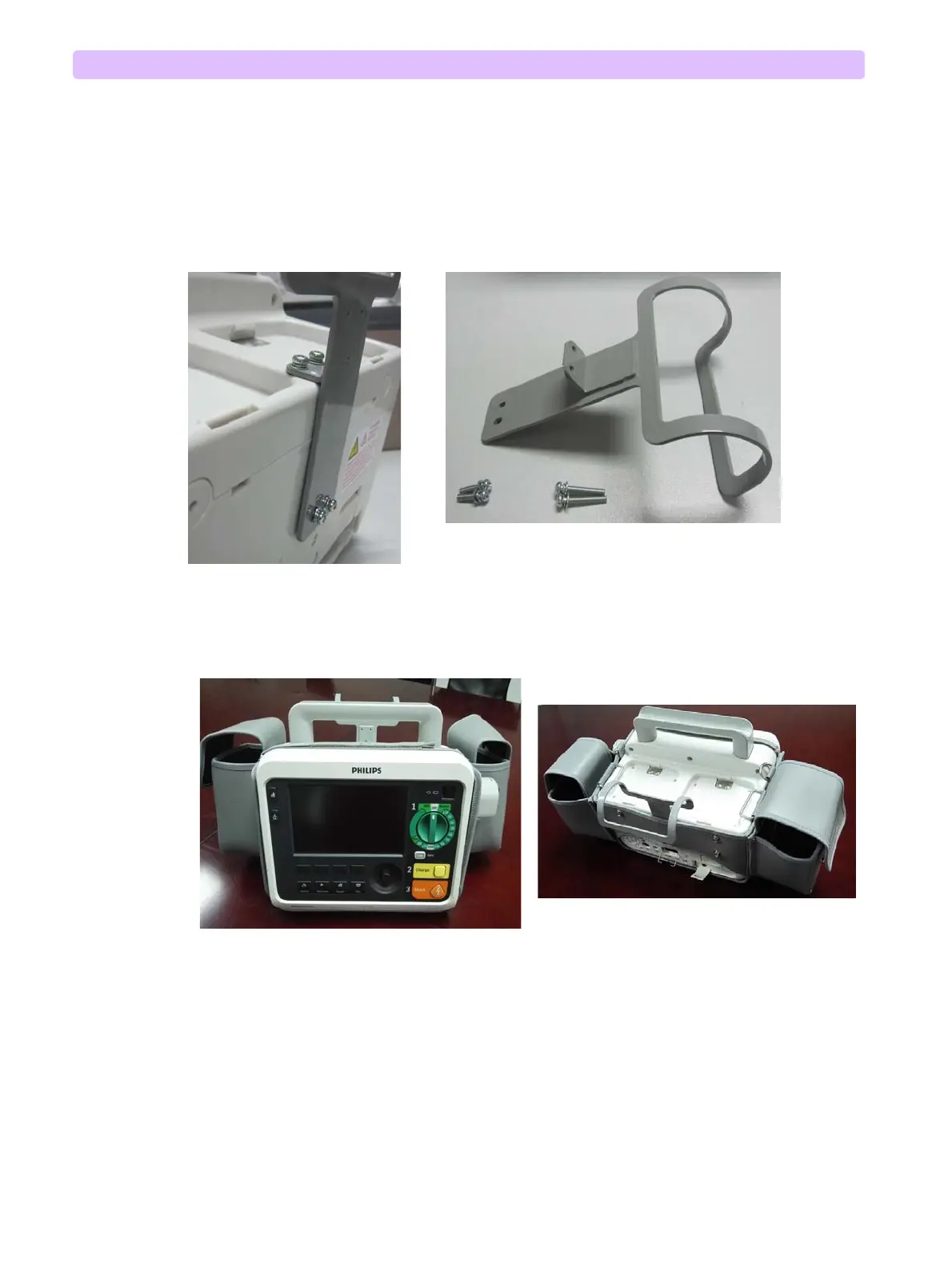

Figure 12 DFM100 Device Installation-1
Figure 13 DFM100 Device Installation-2
